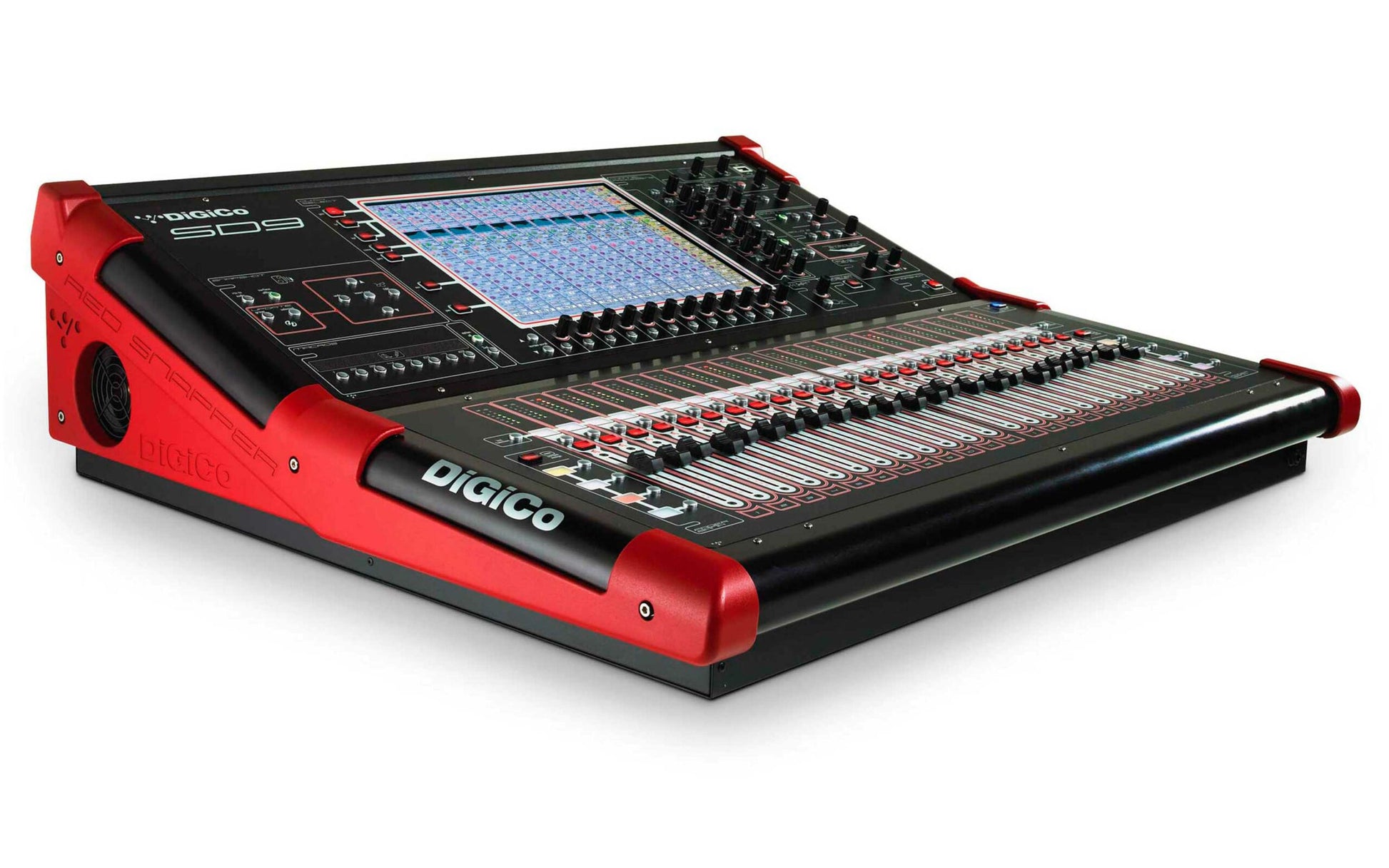

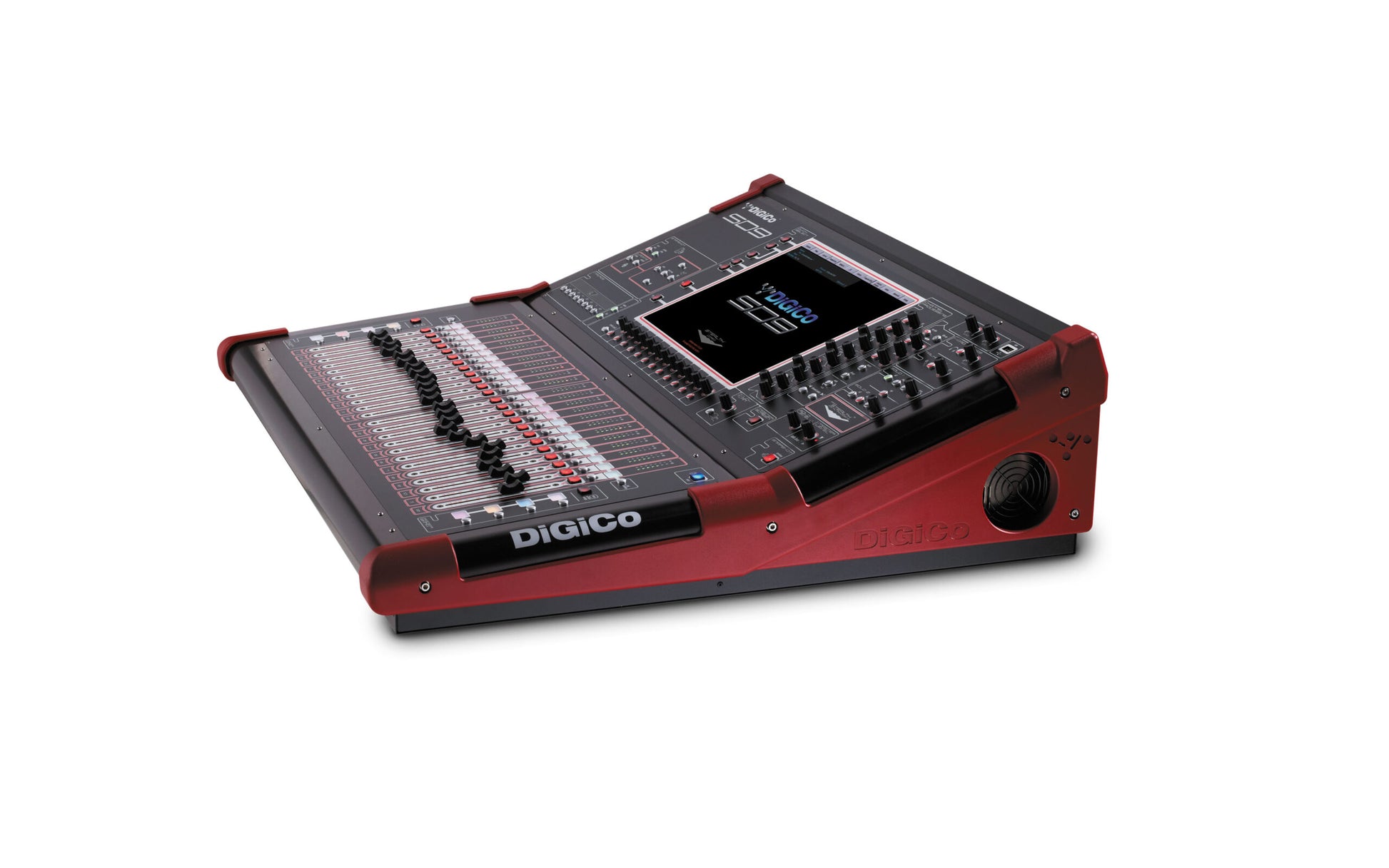

DiGiCo SD9 Digital Mixing Console - MADI and One Multi-Mode Optics HMA
The SD9 is a super-flexible, complete integrated system powered by Stealth Digital Processing and floating point Super FPGA technology. This lightweight, small footprint console was designed with multiple applications in mind, therefore, is equally suited to life on the road or as part of any fixed installation, be it a theatre, conference center, house of worship or school. The SD9 provides outstanding performance at a very competitive price point.
Features:
- MADI and One Multi-Mode Optics HMA

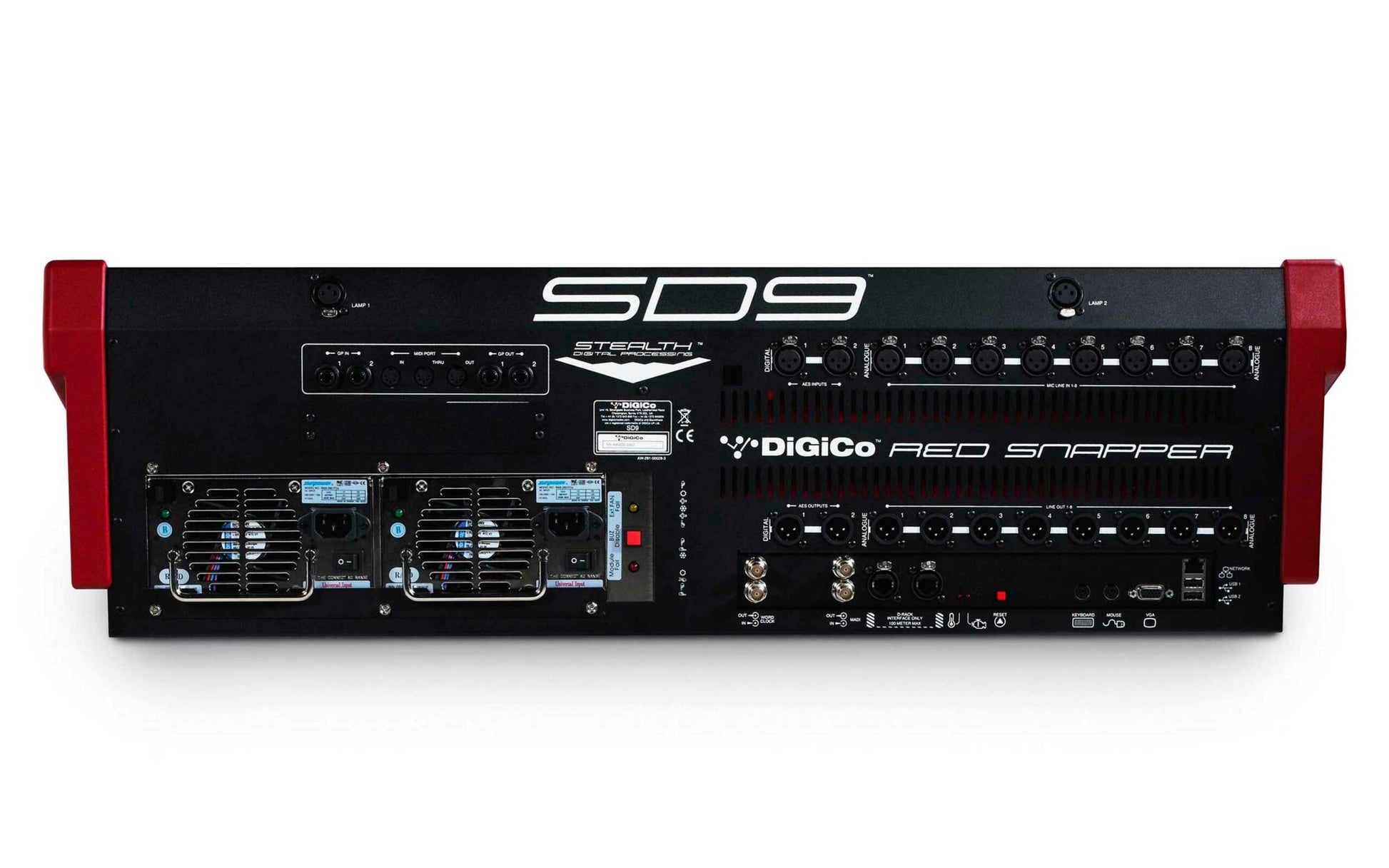

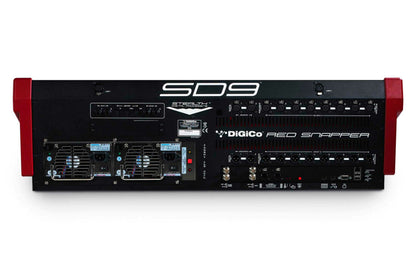

- Connections: D-MADI x 2, MADI x 1, Optics x 1
- Connectors: EtherCON, BNC, HMA
- 96 Input Channels
- 48 Aux / Sub-Group Busses
- LR/LCR/LCRS/5.1 Master Buss
- 12 x 8 Full Processing Matrix
- 158 Dynamic Equalizers
- 48/96kHz Sample Rate
Specifications:
- Faders: 24 x 100mm Touch-sensitive, motorised
- Screens: 1 x 15” (38cm) LCD high-resolution touch screen
- Meters: 24 x 8-Segment LED bargraph
- Input Channels: 96 Input Channels
- Busses: 48 Aux/Sub-Group Busses
- Solo Busses: 2 Stereo Busses
- Matrix: 12 x 8 Matrix (additional to busses above)
- Control Groups: 12, Selectable for VCA-style, Moving Fader, Mute Group
- Graphic EQ: 16 x 32-band, Gain +/- 12dB
- Internal FX: 12 Stereo FX Processors
- Local I/O: 8 x Mic/Line I/O, 4 x AES/EBU: I/O (Mono)
- MADI Interface: In / Out
- Optional Optics: Optocore, HMA or ST
- MIDI Interface: In / Out / Thru
- VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
- USB Ports: 3 x USB2
- Light Connection: 2 x XLR3 1.2 – 12V
- Ext Sync: Word Clock, MADI
- Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
- GPI: 2 x 1/4” Jack
- GPO: 2 x 1/4” Jack
- SD9 Dimensions: 878mm (w) x 785mm (d) x 262mm (h)
- SD9 Weight: 36Kg (105Kg with optional flightcase)
- SD9 Flightcase: 1063mm (w) x 1131mm (h) x 472mm (d) (Optional)
- SD9 Power: 90-264 VAC, 47-63Hz Auto Sensing. 208 watts, 232VA Requirements
- Redundancy: Internal PSU x 2 (Optional)
