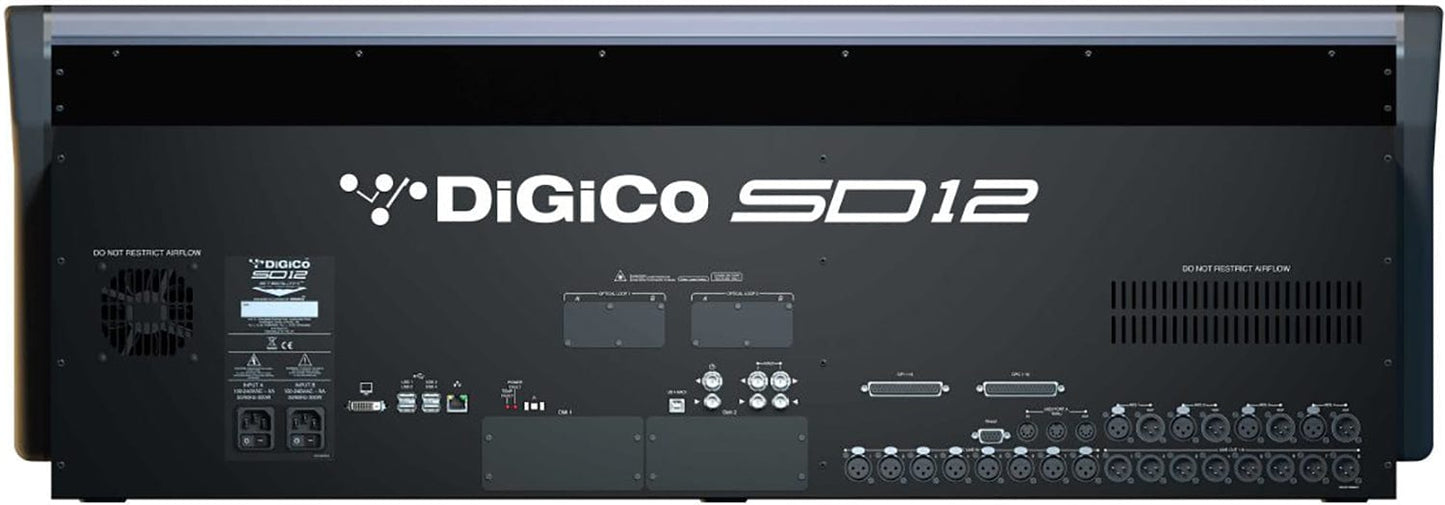

DiGiCo SD12 96-Input Digital Mixing Console - MADI Only

The DiGiCo SD12 96-Input Digital Mixing Console is designed for professional live sound applications, offering robust performance and seamless integration with MADI interfaces. With a focus on delivering exceptional audio quality and intuitive control, this console is ideal for venues and events requiring reliable and flexible audio solutions.

Features:

• MADI interface: Dual MADI ports for robust multi-channel audio connectivity
• Input channels: 96 input channels
• Fader banks: 2 banks of 12 faders each
• Touchscreens: 2 x 15-inch multi-touch screens for comprehensive control
• Snapshot automation: Efficient scene transitions with extensive automation features
• Remote control: Full compatibility with remote control via iPad and other devices
• User-friendly interface: Intuitive and customizable control environment

Specifications:

• Buses: 48 busses + LR/LCR master bus
• Matrix: 12 x 8 matrix
• Local I/O:
  • 8 mic/line inputs
  • 8 line outputs
  • 4 AES/EBU I/O
• MADI ports: Dual MADI ports supporting up to 64 channels at 48kHz or 32 channels at 96kHz each
• DMI slots: 2 slots for DiGiCo Multichannel Interface cards
• Dynamic EQ: 4-band fully parametric dynamic EQ
• Multi-band compression: 3-band multi-band compression
• Power supply: Dual redundant power supplies
• Dimensions: Approximately 930mm x 870mm x 285mm (36.6" x 34.2" x 11.2")
• Weight: Approximately 40kg (88 lbs)
