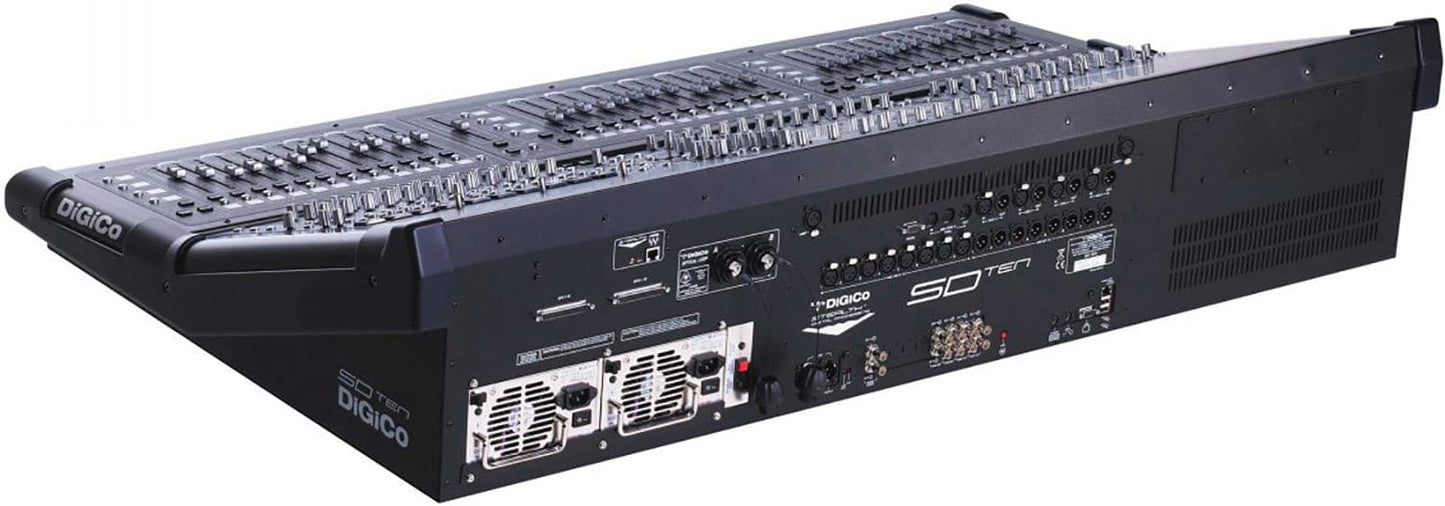

DiGiCo SD10 144-Input Digital Mixing Console - MADI Only

The DiGiCo SD10 144-Input Digital Mixing Console is a powerhouse designed for professional live sound environments, offering expansive input capabilities and robust MADI interface connectivity. Engineered to deliver exceptional audio quality and flexible control options, this console is ideal for large-scale productions and demanding live events.

Features:

• MADI interface: Dual MADI ports for robust multi-channel audio connectivity
• Input channels: 144 input channels
• Fader banks: 3 banks of 12 faders each, plus additional master faders
• Touchscreens: 2 x 15-inch multi-touch screens for comprehensive control
• Advanced processing: Mustard processing channel strips and Spice Rack plugin processing
• Snapshot automation: Seamless scene transitions with extensive automation features
• Remote control: Full compatibility with remote control via iPad and other devices
• Customizable user interface: Highly intuitive and flexible control environment

Specifications:

• Buses: 48 busses + LR/LCR master bus
• Matrix: 12 x 8 matrix
• Local I/O:
  • 8 mic/line inputs
  • 8 line outputs
  • 4 AES/EBU I/O
• MADI ports: Dual MADI ports supporting up to 64 channels at 48kHz or 32 channels at 96kHz each
• DMI slots: 2 slots for DiGiCo Multichannel Interface cards
• FPGA technology: Powered by advanced FPGA processing
• Dynamic EQ: 4-band fully parametric dynamic EQ
• Multi-band compression: 3-band multi-band compression
• Power supply: Dual redundant power supplies
• Dimensions: Approximately 930mm x 870mm x 285mm (36.6" x 34.2" x 11.2")
• Weight: Approximately 45kg (99 lbs)
