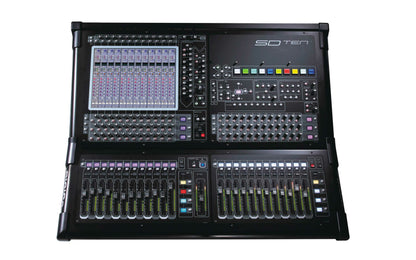

DiGiCo SD10-24 Compact 144-Input Digital Mixing Console - MADI and One Multi-Mode Optics ST
The DiGiCo SD10-24 Compact 144-Input Digital Mixing Console is a professional-grade SD10-24 digital mixer designed for versatile audio control. It features MADI and ST optical connections, offering seamless integration for live sound and broadcast environments. Compact yet powerful, the mixer delivers high-quality audio processing with intuitive functionality.
Features:
- Stealth Digital Processing and floating-point Super FPGA technology
- 25-channel version, which has two banks of 12 motorised faders and one master fade
- 40 Smart Key Macros (accessible via four layers of 10 RGB backlit keys)
- 144 processing channels at 48kHz/96kHz
- Standard channel processing
- Single and Multi Channel Presets
- Dual insert points
- Hi- and Lo-pass filters @ 24dB/octave
- Four-band parametric EQ with band curve selection
- DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor)
- DYN 2 (Gate, Compressor or Ducker)
- works seamlessly with the DiGiCo SD-Rack
Specifications:
- Faders: 25 x 100mm Touch-Sensitive, Motorised
- Screens: 1 x 15” (38cm) LCD High-Resolution Touch Screen
- Meters: 26 x 20-Segment LED Bargraph
- Input Channels: 144
- Busses: 64 assignable that can be configured as groups / auxiliary busses + LR or LCR/LCRS/5.1 Master
- Solo Busses: 2 Stereo Busses
- Matrix: 24 x 24 Matrix (Additional to Busses Above)
- Control Groups: 24, Selectable for VCA-style, Moving Fader, Mute Group
- Graphic EQ: 24 x 32-band, Gain +/- 12dB
- Internal FX: 24 Stereo FX Processors

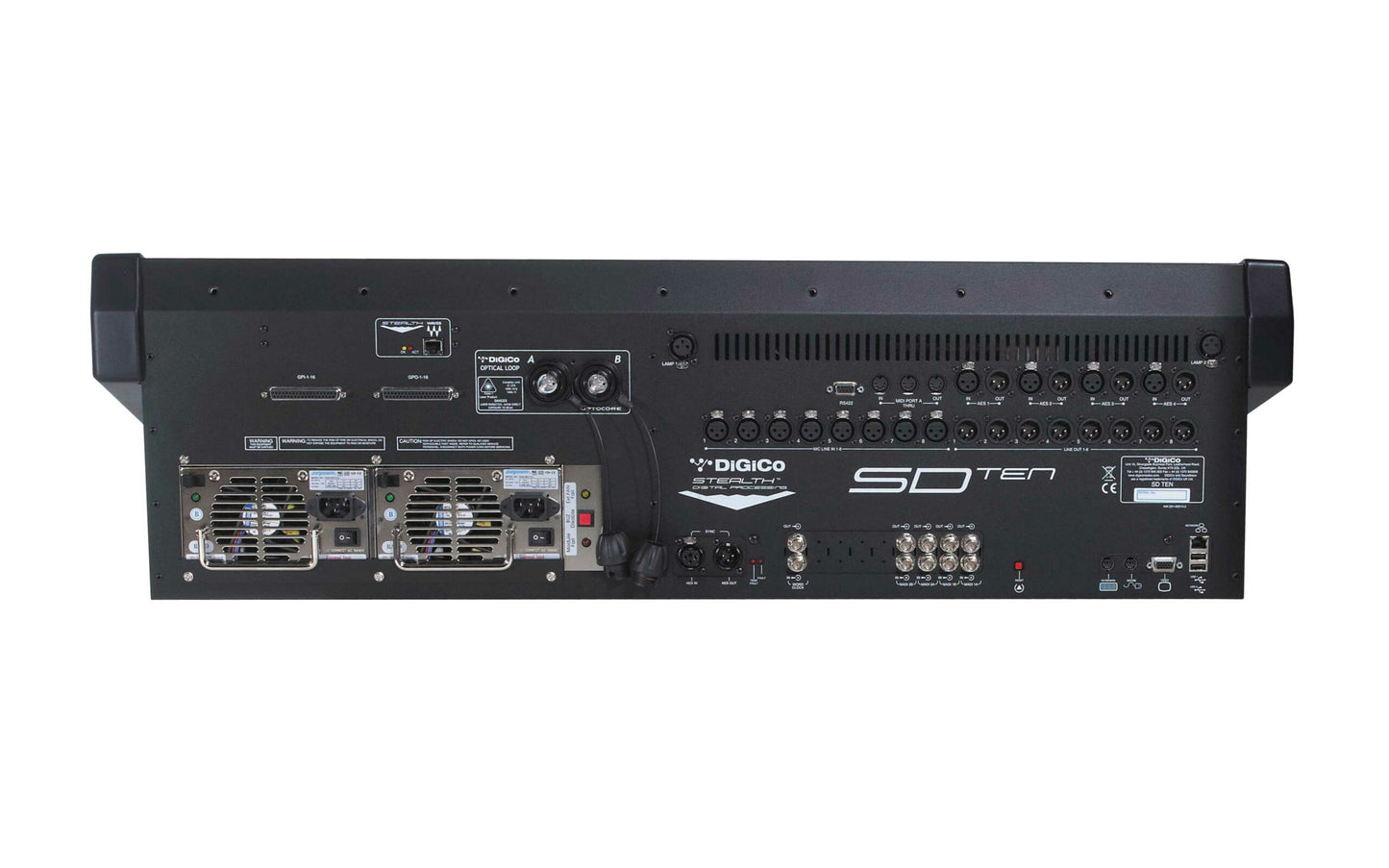

- Local I/O: 8 x Mic/Line I/O, 8 x AES/EBU I/O (Mono)
- MADI Interface: 2 Redundant Interfaces, 75 Ohm BNC Connectivity
- Optic Interface: Optocore
- MIDI Interface: In / Out / Thru
- VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
- USB Ports: 3 x USB 2
- Light Connection: 2 x XLR3 1.2 – 12V
- Ext Sync: Word Clock, AES, MADI, Optics
- Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
- GPIO: 2 x DSub37
- SD10-24 Dimensions: 982mm (w) x 799mm (d) x 286mm (h)
- SD10-24 Weight: 45Kg/ 99.20lbs (140Kg/ 308.64lbs with Optional Flightcase)
- SD10-24 Flightcase: 1170mm (w) x 1158mm (h) x 498mm (d) Weight 95kg/ 209.43lbs (Optional)
- SD10-24 Power Requirements: 90-264 VAC, 47-63Hz Auto Sensing. 235 watts
- Faders: 25 x 100mm Touch-Sensitive, Motorised
- Screens: 1 x 15” (38cm) LCD High-Resolution Touch Screen
- Meters: 26 x 20-Segment LED Bargraph
- Input Channels: 144
- Busses: 64 assignable that can be configured as groups / auxiliary busses + LR or LCR/LCRS/5.1 Master
- Solo Busses: 2 Stereo Busses
- Matrix: 24 x 24 Matrix (Additional to Busses Above)
- Control Groups: 24, Selectable for VCA-style, Moving Fader, Mute Group
- Graphic EQ: 24 x 32-band, Gain +/- 12dB
- Internal FX: 24 Stereo FX Processors
- Local I/O: 8 x Mic/Line I/O, 8 x AES/EBU I/O (Mono)
- MADI Interface: 2 Redundant Interfaces, 75 Ohm BNC Connectivity
- Optic Interface: Optocore
- MIDI Interface: In / Out / Thru
- VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
- USB Ports: 3 x USB 2
- Light Connection: 2 x XLR3 1.2 – 12V
- Ext Sync: Word Clock, AES, MADI, Optics
- Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
- GPIO: 2 x DSub37
- SD10-24 Dimensions: 982mm (w) x 799mm (d) x 286mm (h)
- SD10-24 Weight: 45Kg/ 99.20lbs (140Kg/ 308.64lbs with Optional Flightcase)
- SD10-24 Flightcase: 1170mm (w) x 1158mm (h) x 498mm (d) Weight 95kg/ 209.43lbs (Optional)
- SD10-24 Power Requirements: 90-264 VAC, 47-63Hz Auto Sensing. 235 watts
