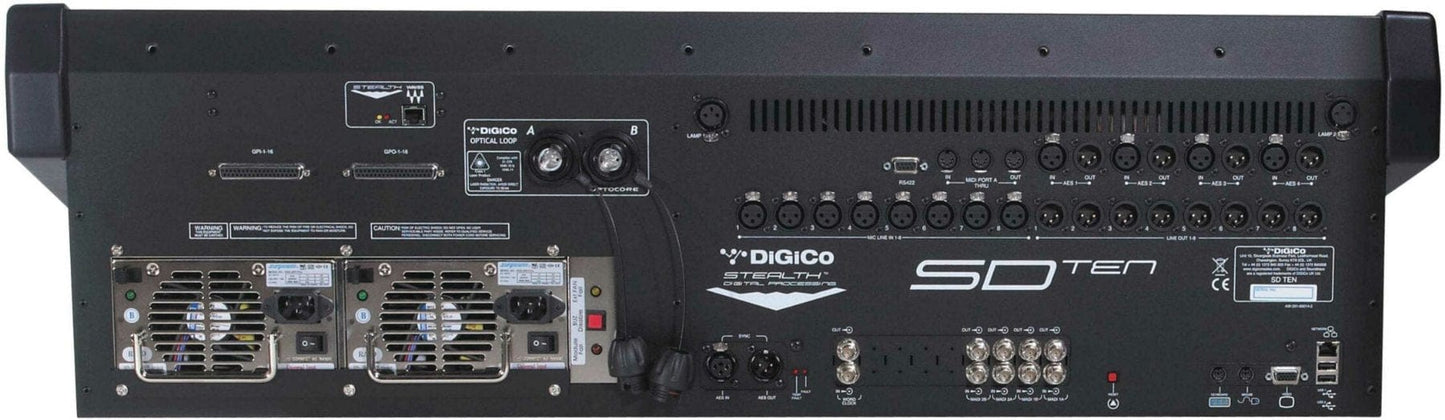

DiGiCo SD10-24 Compact 144-Input Digital Mixing Console - MADI Only

The SD10-24 includes many of our flagship SD7's features and benefits including Stealth Digital Processing and floating-point Super FPGA technology and provides a fully-loaded feature set that will cater to any front-of-house or monitor engineer's needs.

The SD10-24 is a 25-channel version which has two banks of 12 motorised faders and one master fader; but has all the same power and functionality as the larger SD10 but in a smaller frame comprising 24 main channel faders and a master fader.

Features:

• 144 Input Channels
• 64 Aux / Sub-Group Busses
• LR/LCR/LCRS/5.1 Master Buss
• 24 x 24 Full Processing Matrix
• 218 Dynamic Equalizers
• 48/96kHz Sample Rate

Specifications:

• Faders 25 x 100mm Touch-Sensitive, Motorised
• Screens 1 x 15” (38cm) LCD High - Resolution Touch Screen
• Meters 26 x 20-Segment LED Bargraph
• Input Channels 132
• Busses 56 assignable that can be configured as groups / auxiliary busses + LR or LCR/LCRS/5.1 Master
• Solo Busses 2 Stereo Busses
• Matrix 24 x 24 Matrix (Additional to Busses Above)
• Control Groups 24, Selectable for VCA-style, Moving Fader, Mute Group
• Graphic EQ 24 x 32-band, Gain +/- 12dB
• Internal FX 24 Stereo FX Processors
• Local I/O 8 x Mic/Line I/O, 8 x AES/EBU I/O (Mono)
• MADI Interface 2 Redundant Interfaces, 75 Ohm BNC Connectivity
• Optic Interface Optocore
• MIDI Interface In / Out / Thru
• VGA Port DB-15 Mini-Female (1024 x 768 Resolution)
• USB Ports (3) USB 2
• Light Connection (2) XLR3 1.2 – 12V
• Ext Sync Word Clock, AES, MADI, Optics
• Headphone TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
• SD10-24 Dimensions 982mm (w) x 799mm (d) x 286mm (h)
• SD10-24 Weight 45Kg/ 99.20lbs (140Kg/ 308.64lbs with Optional Flightcase)
• SD10-24 Flightcase 1170mm (w) x 1158mm (h) x 498mm (d) Weight 95kg/ 209.43lbs (Optional)
• SD10-24 Power Requirements 90-264 VAC, 47-63Hz Auto Sensing. 235 watts
