Name: DiGiCo Quantum 225 Digital Mixing Console with DANTE2 Card
Brand: DiGiCo
SKU: X-Q225-DQ

Description

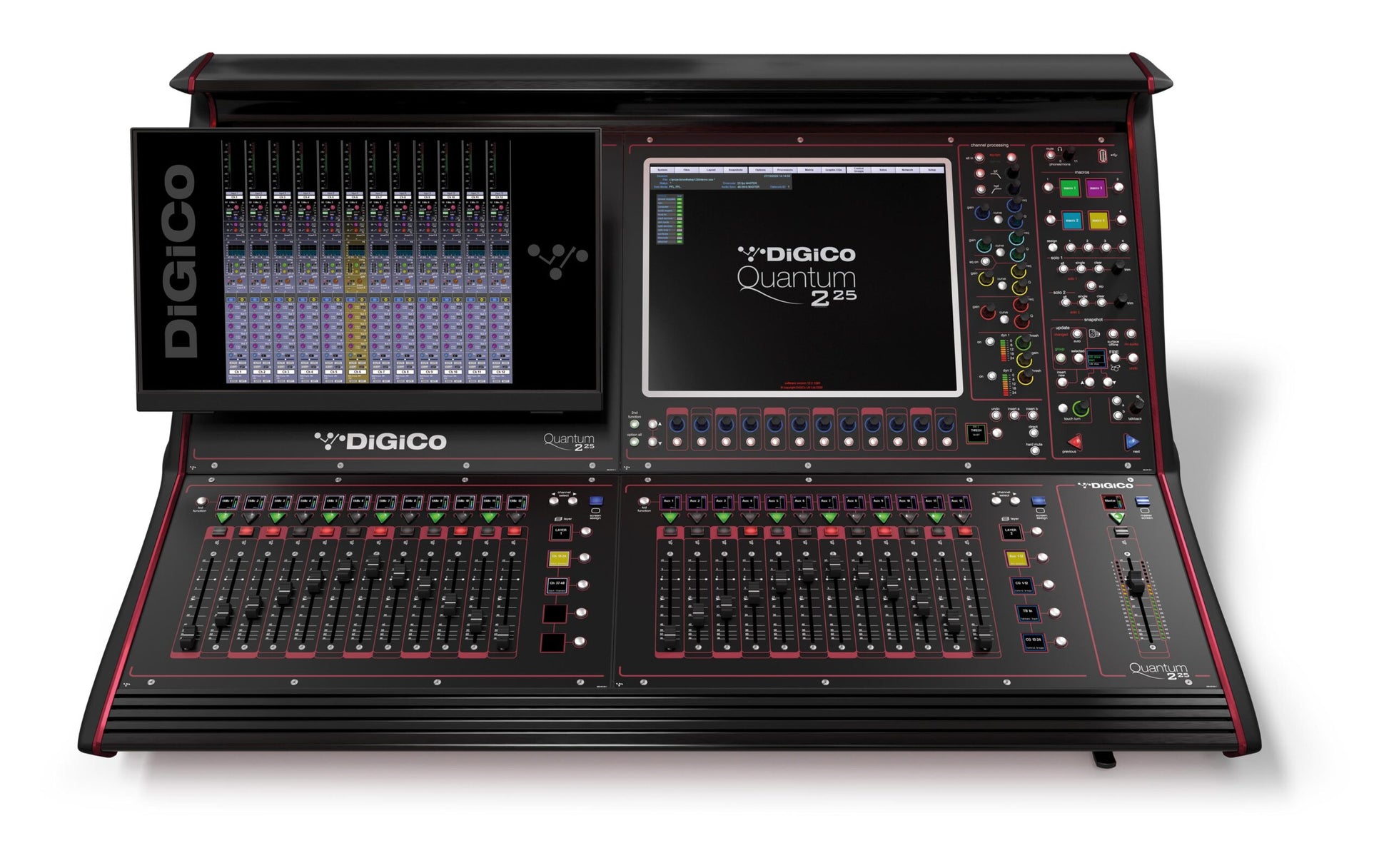

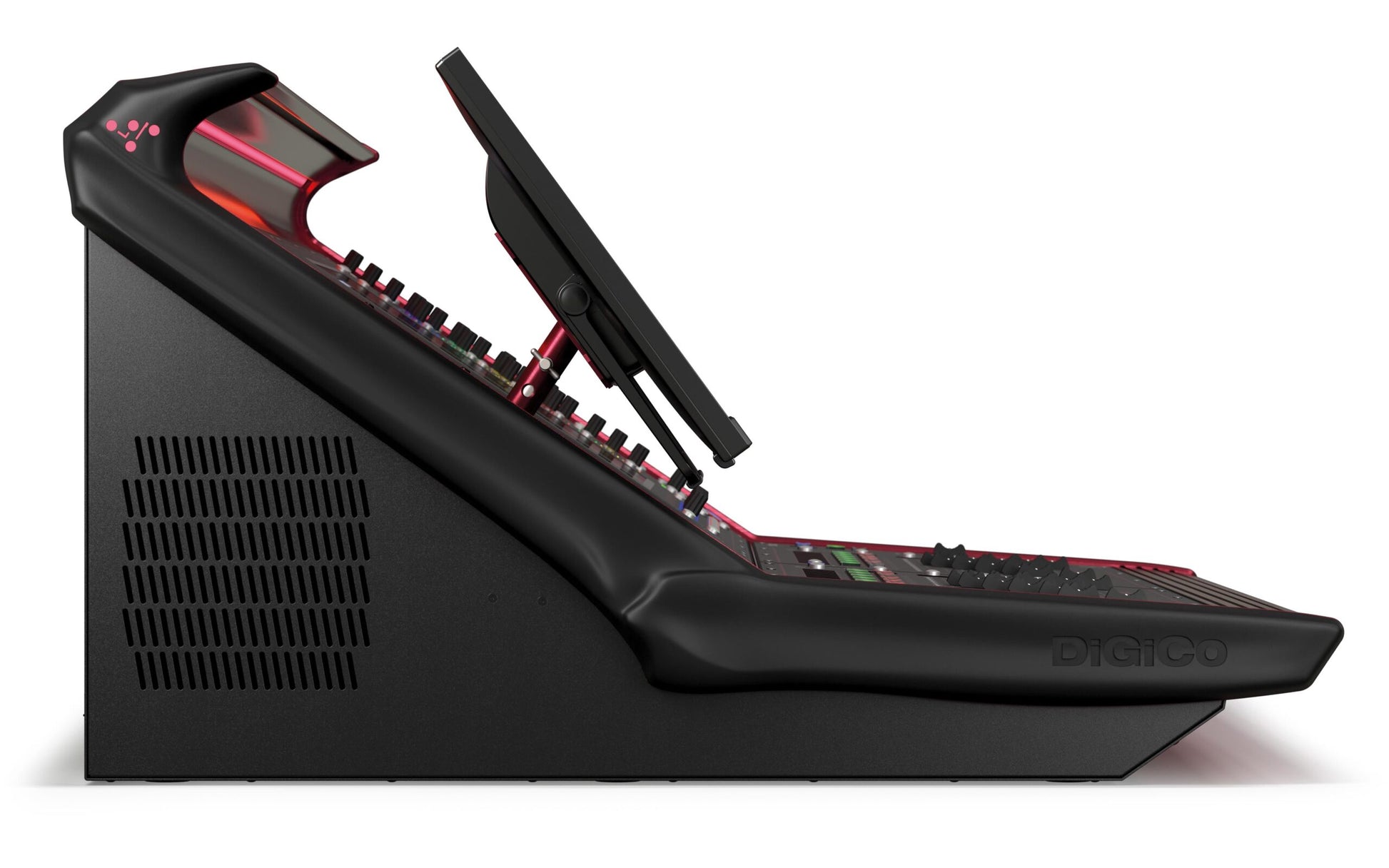

DiGiCo Quantum 225 Digital Mixing Console with DANTE2 Card

Following on from Quantum 338, Quantum 225 brings the power of Quantum in a compact and robust worksurface. Quantum 225 incorporates all of the new design features introduced in 2020 with the Quantum 338, and of course uses three large-scale seventh generation FPGAs to continue the unrivaled Quantum legacy. The console merges tried and tested workflows with immense processing muscle, bold innovation and all of the Quantum features, giving you the ultimate tool set.

Features:

72 Input channels with full processing
36 Aux/Sub-Group busses with full processing
12 x 12 Matrix with full processing
24 Insertable Mustard processing strips
32 Nodal processing instances
True Solo function
41 TFT LCD displays
1 x 17” high-brightness, high-resolution touchscreen
Mounting bracket for customization of the left worksurface
Assignable channel layout
User programmable macros
Capable of redundantly mirroring with another Quantum 225 console
Redundant PSUs as standard
2 DMI slots to expand the I/O as desired
Integrated UB MADI
Offline software
iPad control

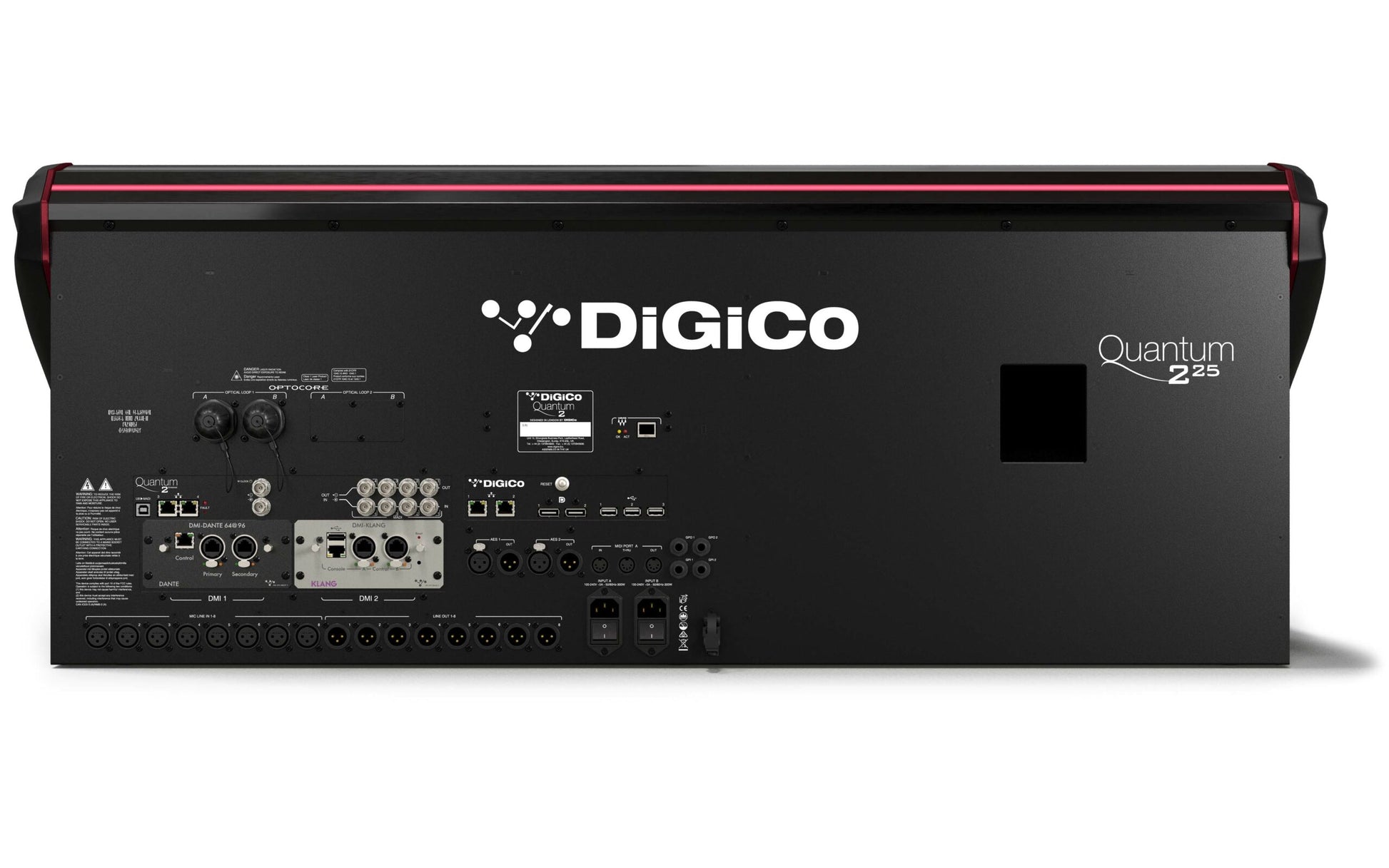

DMI: We have also incorporated two dedicated DMI slots to accommodate the growing family of DiGiCo DMI card options. Allowing the console connectivity to be configured for the demand of the tour or event, you could plug in a Dante module, or the latest automatic mic mixing module. Each dedicated DMI slot provides you with an additional 64 x 64 I/O.

Specifications:

Amplifier channels: 12
System rack empty with/without dolly board: 53.0 kg (116.9 lb) / 42.0 kg (92.6 lb)
Payload (max. weight allowed to be loaded): 70.7 kg (155.9 lb)
Shipping weight: 158 kg (350 lb)
Balanced line level input / AES3: 4 / 2 XLR f (Neutrik)
Balanced line level out / AES3: 4 / 2 XLR m (Neutrik)
Amplifier outputs: 3 x 2 NL8 (Neutrik speakON)
Ethernet connections: 2 x 2 RJ45 (Neutrik etherCON), primary and secondary
Network switches: Managed GB switches, Layer-3, 10-port, pre-configured for OMENO/Dante
Mains power inlet (EU): CEE 32A-3phase-230/400V
Mains power inlet (US): NEMA L21-30, 208 VAC
Ambient temperature limits: +5°C to +40°C (40°F to 105°F)
Color: Black
Dimensions (W x H x D) without dolly board: 600 x 558 x 655 mm
Dimensions (W x H x D) with dolly board: 600 x 718 x 655 mm

This console includes the following expansion card:

*DiGiCo MOD-DMI-DANTE2 64-Channel I/O 96 kilohertz Dante Expansion Card with 2x EtherCON Connectors

DMI-DANTE64@96

This card provides 64 inputs and 64 outputs to the Dante network at both 48kHz and 96kHz.

Audio over IP is becoming more and more sought after, due to the fact that it works over a standard IP network and can be sent over pre-installed infrastructure. Developed by Audinate in 2006, Dante provides uncompressed, low latency, multi-channel digital audio over IP and is a popular choice of protocol.

The DiGiCo DMI-DANTE64@96 allows 64 channels in and 64 channels out at both 48kHz and 96kHz. It has a Primary and a Secondary port, both of which are Ethercon ports, and an RJ45 Control port. The card has two modes that can be changed in Dante Controller. In Switched Mode, the three ports are switched together. In redundant mode, the Control and Primary ports shall be switched together and work as a redundant pair with the Secondary port, each having separate IP addresses so that if the primary connection fails, the secondary connection will take over.
