Denon Pro DN-108LF 8-Inch Ceiling Subwoofer

The Denon Professional DN-108LF ceiling subwoofer is designed to deliver exceptionally accurate, articulate low frequency reinforcement while easily meeting commercial requirements for fire-resistance and suitability for multiple unit installation. To achieve this it employs a single 8.25" long-excusrion, low frequency driver in a ported enclosure.

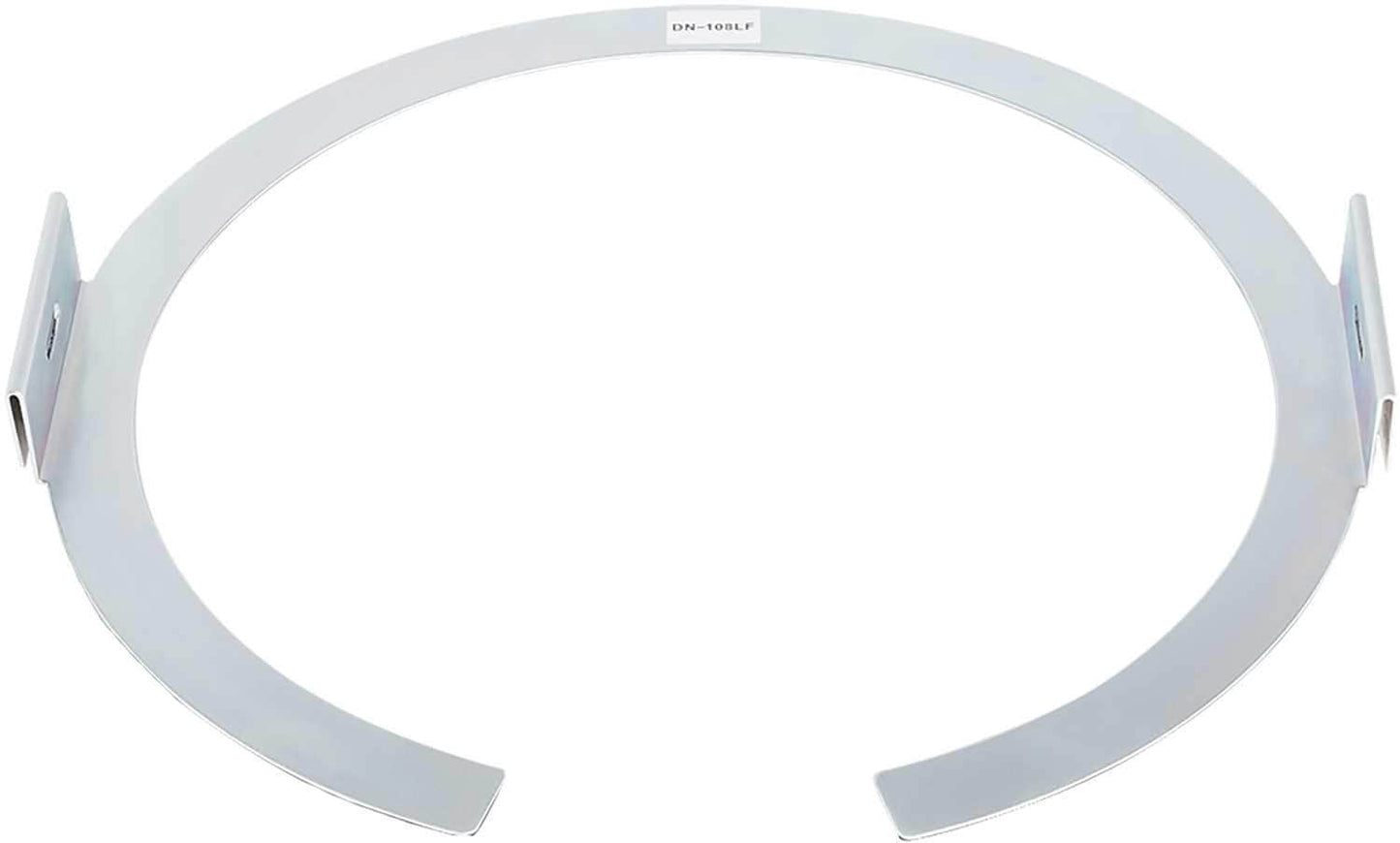

The DN-108LF features a metal can rear enclosure, which provides a fire barrier behind the speaker to meet local commercial fire codes. It also serves as the woofer’s enclosure to optimize bass tuning and low-frequency response. Mounting is accomplished via the familiar "dog leg" bracket design. The speaker has 70/100-volt transformers to facilitate multiple unit installations without the impedance and level-matching concerns of paralleled transformerless speakers. Low impedance use is also accomodated via the 8-ohm transformer bypass. The DN-108LF utilizes a 4-pin Euroblock for easy connection to subsequent speakers.

A built-in crossover network enables the DN-108LF to be connected directly to a full-range audio source or paralleled from existing full-range speakers for operation. This high-quality speaker in a tuned reflex enclosure is perfect for music applications, public address demands and business/educational presentations, while meeting safety and fire codes as required by commercial venues.

In the box:

• DN-108LF
• Magnetic speaker grille (white)
• (4) ea. screws and washers
• 4-pin Euroblock connector
• User Guide
• Safety and Warranty Manual

Features:

• 8" Ceiling subwoofer
• 80W Power handling (160W peak)
• Designed for 70V/100V/8Ω installations
• Built-in crossover network, no external processing necessary
• 4-pin Euroblock connection
• Mounting hardware included
• EN 54-24 compliant

Specifications:

System Specification

• Driver Diameter: 8.25" (210mm)
• Voice Coil: 35mm
• Frequency Response: 53 - 2.3kHz
• Power Handling: 80W continuous (160W peak)
• Sensitivity: 89dB (1W/1m)

Transformer Power Taps

• 70V - 50, 25, 12.5, 6.25W
• 100V - 50, 25, 12.5W
• Bypass: 8?

Physical

• Grille Material: Steel
• Cut-out Hole Diameter: 10.75" (273mm)
• In-ceiling Clearance: 8.75" (222mm)
• Weight: 13.9 lbs. (6.3kg)
