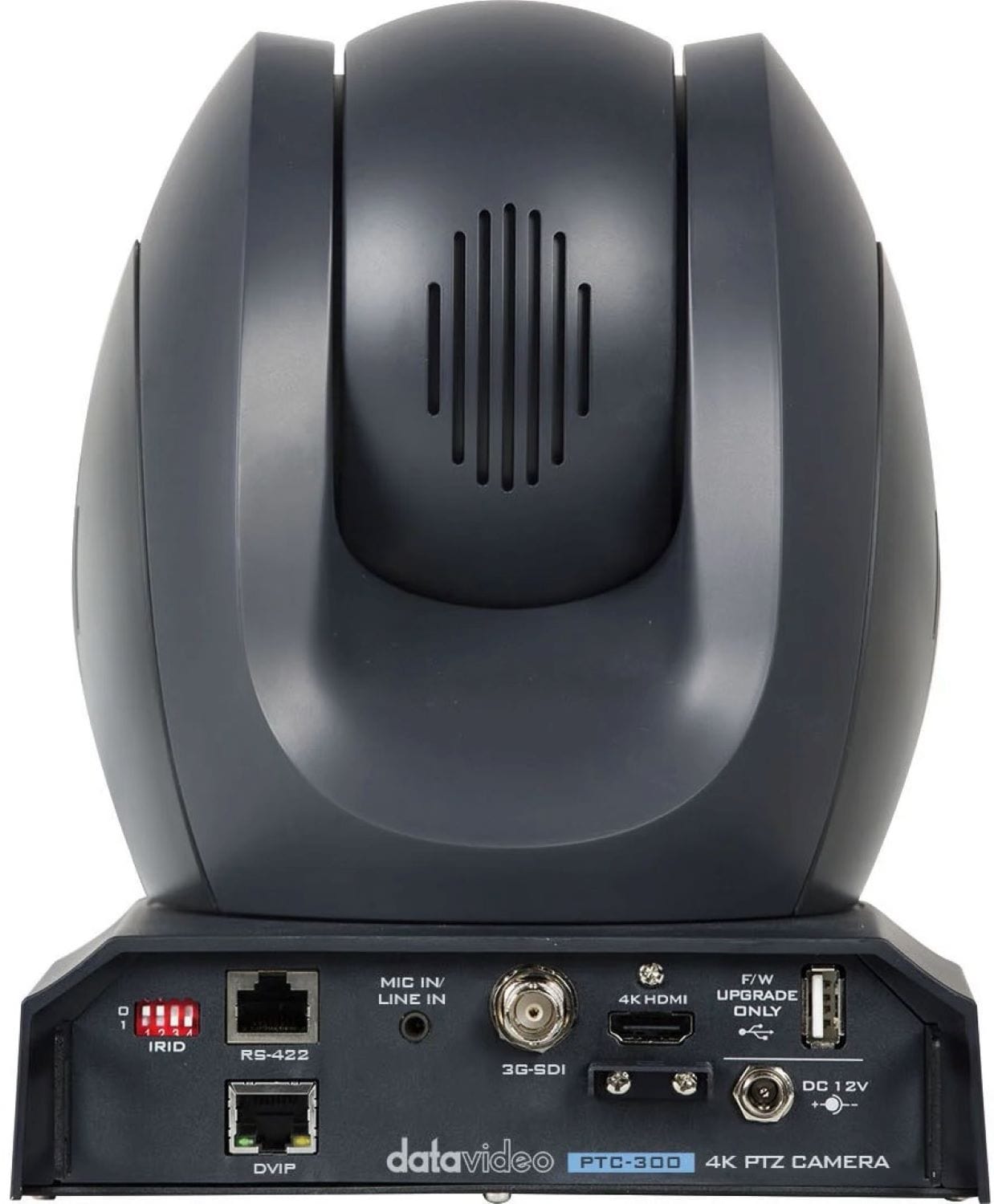

DataVideo PTC-300 20x 4K PTZ Camera - Supports POE
Datavideo is introducing the 4K50/60p PTZ camera lineup which includes the PTC-300 Professional PTZ Camera that can be easily controlled via traditional RS-422 serial port or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market applications, so you can easily stream to Facebook (RTMPS), YouTube simultaneously. It also works well with dvCloud.
Features:
- Simultaneous Outputs
- Broadcast Quality 4K Resolution
- Superior Optical Performance
- PTZ View Assist: Control up to four cameras
- Low Noise in Low Light
- Multiple Simultaneous Video Outputs
- Multiple Network Protocol with Dual Stream Function
- Compatible with Various Controller
- RS-422, DVIP and Ethernet Camera Control
- Power over Ethernet
- Tally Light
- Wide 71° Field of View
- Supports H.264/H.265 Video Compression
- Dark or Light Body
Specifications:
- Video format/Resolution:
- HDMI:
- 2160p 60/59.94/50/30/29.97/25
- 1080p 60/59.94/50/30/29.97/25
- 1080i 60/59.94/50
- 720p 60/59.94/50
- SDI:
- 1080p 60/59.94/50/30/29.97/25
- 1080i 60/59.94/50
- 720p 60/59.94/50
- (2160p 60/59.94/50 YUV 4:2:0 only)
- Image Sensor: 1/2.5" CMOS
- Effective Pixels (approx.): 8.42Mega Pixels
- S/N Ratio: ≥55dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 20x Optical, 16x Digital Zoom
- Gamma Control: Off / Normal
- Iris Control: Auto / Manual
- Digital Noise Reductions: 2D/3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
- AGC / Gain Control: Yes
- Mirror / Flip Image: Yes
- Focus Mode: Auto/Manual
- Panning / Tilting Range:
- Pan: 300°
- Tilt: +130° to -15°
- Panning / Tilting Speed:
- Pan: 0.876°/s~43°/s
- Tilt: 0.693°/s ~21.32°/s
- Preset: 255
- Focal Length: 20x, f = 6.7mm ~125mm, F1.58 ~ F3.95
- Field of View (Horizontal, Wide): 60°
- Image Compensation: Back light compensation
- Video Output:
- HDMI 2.0 x1
- 3G-SDI x1
- 10/100/1000M RJ45 x1
- Audio Input: 3.5mm x1
- Tally LED: Yes
- Lens Filter: N/A
- Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP DHCP, RTSP, RTMP (IP Cam), RTMPS, DVIP
- Remote Control Interface:
- IR
- Web UI
- RS-422
- DVIP
- Video Compression Format: H.264/H.265/MJPEG
- Audio Compression Format: AAC
- Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
- HD IP Interface: ----
- Streaming Protocols: TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
- First Stream Supported Resolution:
- 3840x2160
- 1920x1080
- 1280x720
- 1024x576
- 960x540
- 640x480
- 640x360
- Second Stream Supported Resolution:
- 1280x720
- 1024x576
- 720x576 (50Hz)
- 720x480 (60Hz)
- 720x408
- 640x360
- 480x270
- 320x240
- Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
- Video Bitrate Mode: VBR, CBR
- Encoding Frame rate:
- 50Hz: 1-50fps
- 60Hz: 1-60fps
- POE: IEEE 802.3at
- F/W Update: Via Web UI or USB 2.0
- IR Control: Yes
- Camera Control Unit: RMC-180 series/RMC-300 series/PTZ View Assist APP
- Tripod Mount: 1/4-20 UNC
- Optional Accessories: WM-1/ WM-10/ WM-11
- Color: Black/White
- Dimension (LxWxH): 173 (W) x 219 (H) x 189.08 (D)
- Weight: 2.6 kg
- Operating Temp. Range: 0~40 °C
- Power: DC 12V 12W
