Description

Da-Lite 24867F Tensioned Advantage Series 146x260 Surface / Roller / Motor

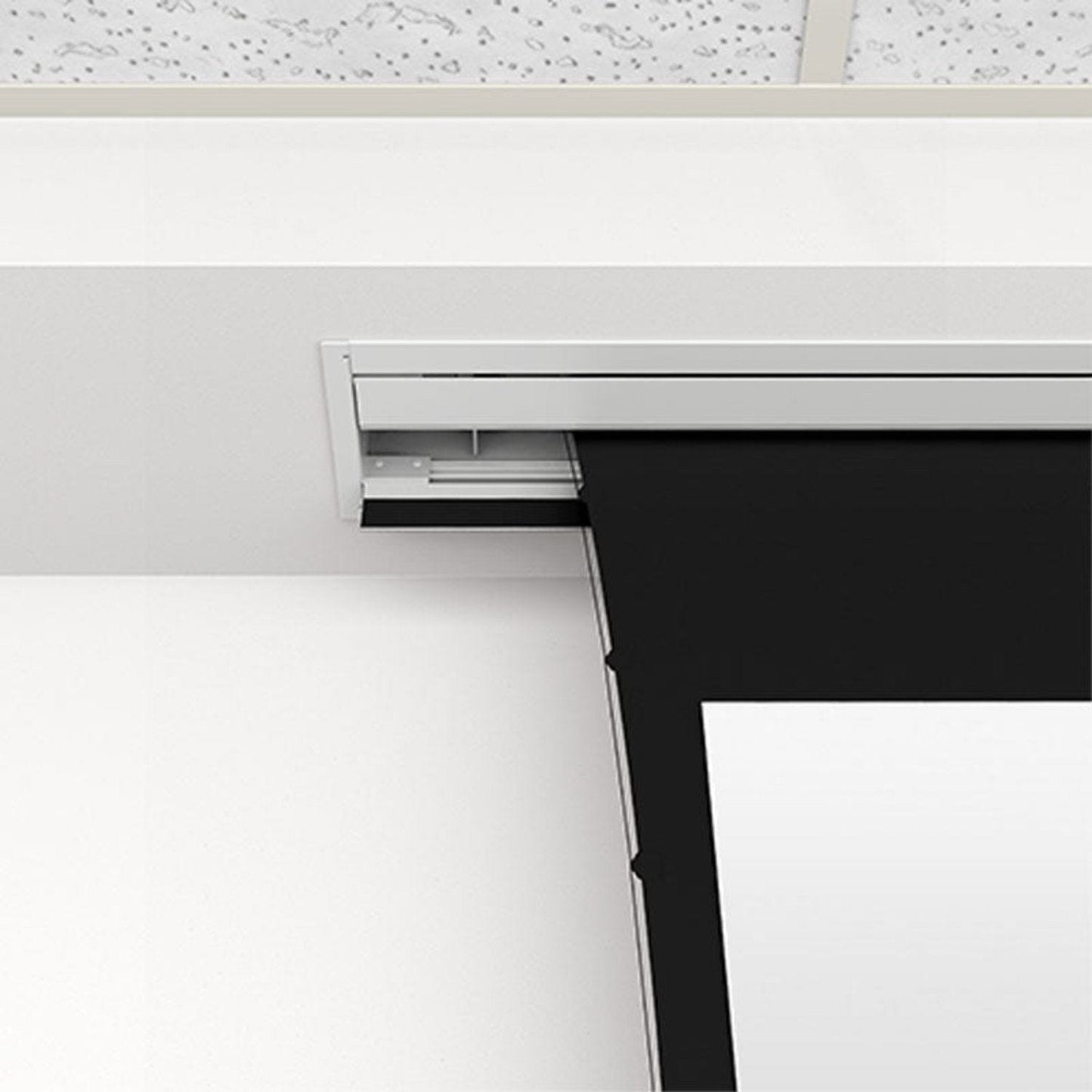

The Tensioned Advantage ceiling-recessed electric screen series is expertly designed to streamline installation and enhance aesthetics. Featuring integrated ceiling trim that conceals the rough opening, this screen eliminates the need for additional trim work after installation. Its innovative two-stage installation process allows the screen case to be mounted during the rough-in phase, with the screen surface assembly completed during the finishing phase.

With sliding installation brackets, the Tensioned Advantage offers exceptional mounting flexibility, making it easy to attach the screen housing to the structure above a drop ceiling. The addition of Da-Lite's SightLine cable drop feature, available on screens up to 177" Diagonal 16:9 and 182" Diagonal 16:10, creates the illusion of a floating screen. This system utilizes a single roller design with 3 or 4 thin cables, eliminating the need for a black drop (the black border above the screen).

Unlike traditional screens that require fixed drop distances, the SightLine feature allows for variable vertical placement, accommodating drop distances up to 70" between the ceiling and the top of the screen. This flexibility simplifies ordering and maintains architectural integrity by creating usable space above the viewing area for camera or speaker placement.

Combining enhanced aesthetics, effortless ordering, and smooth installation, the Tensioned Advantage with SightLine offers a perfect balance between traditional functionality and modern innovation.

Features:

  • Standard Low Voltage Control (LVC) and available optional controls allow screen operation flexibility
  • UL Plenum rated case
  • White powder-coated case for a clean aesthetic
  • Decora-style, three-button wall switch
  • All sizes standard with 12" of black drop except for Parallax Pure which is standard with 2"
  • Smooth Roll Technology to keep your screen perfectly flat
  • TruGuide Electric Screen Tensioning System provides optimal viewing surface smoothness
  • Standard black backing retains projected brightness on front projection surfaces
  • Seamless surfaces in all models

Specifications:

  • Projection Series: Tensioned Advantage Series
  • Screen Type: Electric
  • Mount Type: Ceiling Recessed
  • Surface: HD Progressive 1.3
  • Format: HDTV (16:9)
  • Viewable Diagonal: 298"
  • Viewable Width: 260"
  • Viewable Height: 146"
  • Ship Length: 302"
  • Ship Width: 23"
  • Ship Height: 18"
  • Ship Weight: 290 lbs
  • Freight Class: 125
