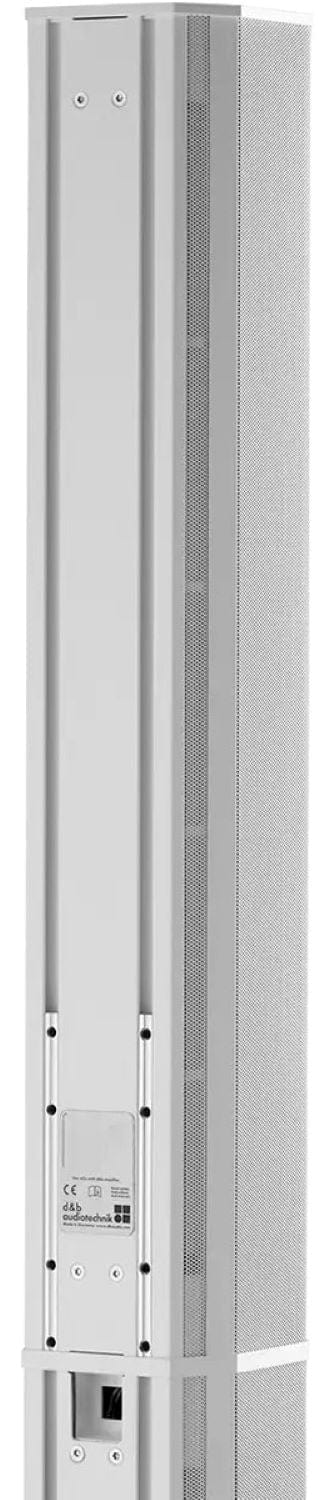

D&B Audiotechnik Z1710.100 24C-E Column Passive Loudspeaker Extension - Weather-Resistant
The 24C-E passive extender is for use with the 24C column loudspeaker. The cabinet houses six 4” neodymium drivers, providing an extension of vertical directivity down by a further octave to 190 Hz. Connections between the loudspeakers are made passively, requiring only one amplifier channel. The 4" drivers are arranged in a unique cardioid setup utilizing damped ports at the rear of the cabinet. This design provides a broadband attenuation to the rear of approximately 18 dB. The 24C-E loudspeaker enclosure is constructed from an extruded aluminium back and a metal baffle, while the front and sides of the cabinet are protected by a metal grill. The 24C-E features extendable rails to accommodate the attachments of the 24C. N-lok connectors are incorporated within the cabinet to link with the 24C loudspeaker. The xC-Series loudspeakers are available in white or black as standard, or can be provided with the Special Colour (SC) option that can be executed in all RAL colours.
Features:
- Components 6 x 4"
- Dispersion 90° x 20°
- SPLmax 128 dB
- Weight 7 kg / 15.4 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 110 Hz - 17 kHz
- Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
- Max. sound pressure: 128 dB (in combination with 24C)
- Cabinets per amplifier channel: 1
- Loudspeaker data:
- Configuration: Installation specific cardioid column extender
- Power handling capacity (RMS/peak 10 ms): 250/1200 W
- Vertical downtilt of low-mid beam: 5°
- Vertical adjustment of HF section: 0° ‒ -14°
- Nominal dispersion angle (h x v): 90° x 20°
- Components: 6 x 4" driver with neodymium magnet
- Connections: fixed cable gland with 2-pole Mate-N-Lok mini through 24C
- Dimensions / Weight:
- Dimensions (H x W x D): 701 x 124.5 x 124 mm / 27.6 x 4.9 x 4.88"
- Weight: 7 kg / 15.4 lb
