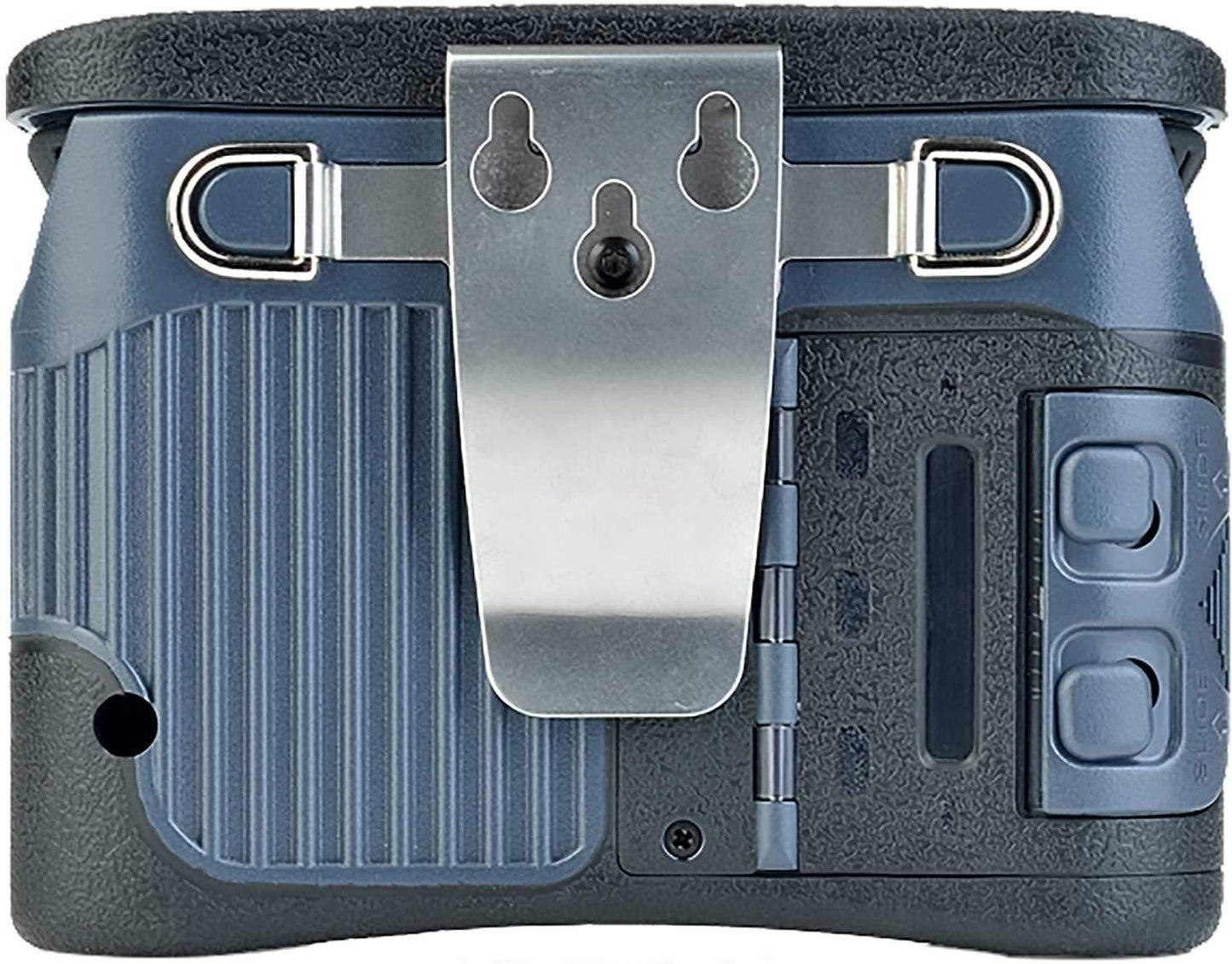

Clear-Com FreeSpeak II Digital Wireless Belt Pack

Durable ConstructionIP-53 rated for wet weather or dusty conditions making them ideal for outdoor productions. For better grip and protection, the beltpack has a rubberized overmold to protect from the most rugged environments.

Superior Intelligibility and ComfortFeaturing the "Clear-Com Sound", the digital beltpack operates in the 200Hz-7.5kHz audio band high audio quality and reduction to the strain on the user’s ears after extended usage.

Extensive Operation Time18+ hours of battery life for continuous talk-time with the BAT60 Li-Ion battery. 6-9 hours of battery life with three AA cells. USB charging port is available on the beltpack for recharging and continuous powered transmissions.

Exceptional RF PerformanceProven cellular auto roaming technology for dependable and continuous communication without the worry of fading or losing connection.

Item Part Number:

• FSII-BP19-X4-US: XLR-4M headset connector approved for use in USA and Canada
• FSII-BP19-X5-US: XLR-5F headset connector approved for use in USA and Canada
• FSII-BP19-X7-US: XLR-7M headset connector approved for use in USA and Canada
• FSII-BP19-X4-O2-US: for high pressure environments XLR-4M headset connector approved for use in USA and Canada
• FSII-BP19-X4-EU: XLR-4M headset connector for use in EU countries; Australia; New Zealand; Hong Kong; Singapore
• FSII-BP19-X5-EU: XLR-5F headset connector for use in EU countries; Australia; New Zealand; Hong Kong; Singapore
• FSII-BP19-X7-EU: XLR-7M headset connector for use in EU countries; Australia; New Zealand; Hong Kong; Singapore
• FSII-BP19-X4-O2-EU: for high pressure environments XLR-4M headset connector for use in EU countries; Australia; New Zealand; Hong Kong; Singapore
• FSII-BP19-X4-J: XLR-4M headset connector for use in Japan
• FSII-BP19-X5-J: XLR-5M headset connector for use in Japan
• FSII-BP19-X7-J: XLR-7M headset connector for use in Japan
• FSII-BP19-X4-LA: XLR-4M headset connector for use in Argentina
• FSII-BP19-X5-LA: XLR-5M headset connector for use in Argentina
• FSII-BP19-X7-LA: XLR-7M headset connector for use in Argentina
• FSII-BP19-X4-B: XLR-4M headset connector for use in Brazil
• FSII-BP19-X5-B: XLR-5M headset connector for use in Brazil
• FSII-BP19-X7-B: XLR-7M headset connector for use in Brazil

Features:

• FreeSpeak II 1.9GHz Wireless Beltpack
• Operates in the 1.88-1.93GHz DECT frequency band (frequency allocation varies by country)
• Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
• 7kHz audio wide band
• Encoder Volume Swap between A&C and B&D
• "Listen Again" message replay
• Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240m)
• Over-the-air beltpack registration
• 18+ hour battery life or USB port for continuous operation
• IP-53 rating for wet and dusty conditions
• Built-in flashlight

Specifications:

Audio

• Audio Bandwidth: 200Hz-7.5KHz
• No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2dedicated rotaries, 3 with menu), 2 controls and a main volume
• Mode of Operation: Full duplex on all routes
• Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
• Enter/Answer-Back Button: 1

Radio

• Frequency Spectrum: 1.88-1.93MHz for EU and US cellular auto roaming technology (frequency allocation varies by country)
• Modulation: GFSK, TDMA frame 10ms Full and Long slot
• Output power: (EU) 18-22dBm, (US) 18-20dBm
• Range: Typical indoor range 300ft (90m), outdoor range 800ft (240m)
• Battery: Li-Ion or 3 AA alkaline cells
• Battery Charging: Drop-in charger (AC60) or local USB
• Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells
• Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
• Microphone Type: Electret and Dynamic, selectable in beltpack menu
• Headset Limiter: Selectable from beltpack menu

Environmental

• IP-53 water and dust resistance
• Operating: 32º-125ºF (0º-50ºC)
• Storage: 32º-150ºF (0º-70ºC)
• Humidity: Between 20% and 90%, Non-Condensing

Dimensions

• Tapered design at largest points
• 3.75 x 5 x 1.5 in (HxWxD) / (97 x 130 x 45 mm)

Weight

• 9.0 oz (0.4kg) including batteries
