Clear-Com CC-110-MD4 Single Ear Min Headseti DIN (M) 4-Pin with Dynamic Microphone

More Clear-Com products

Write a review Q&A SKU: CC-110-MD4 Solotech ID#: 152724
1 of 3
Available options
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

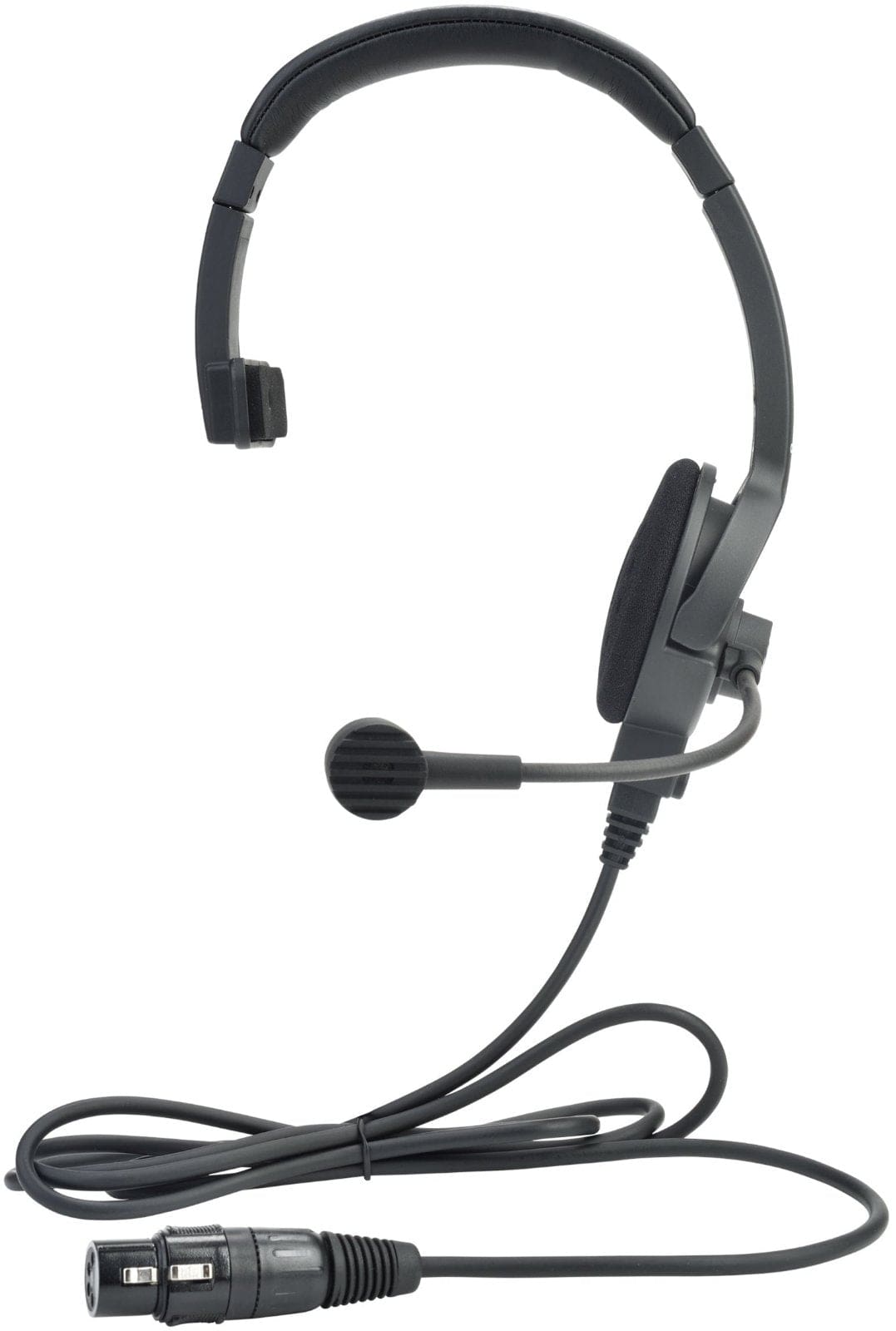

Clear-Com CC-110-MD4 Single Ear Min Headseti DIN (M) 4-Pin with Dynamic Microphone

The CC-110 premium lightweight headset with Mini DIN 4-pin connector offers you the highest quality audio experience. With its high-performance speaker and user-positionable cardioid gooseneck microphone, the CC-110 ensures that every conversation transmits with clarity. The headset also offers the choice of leatherette or foam earpads to provide comfort during extended periods of use. A convenient boom rotation ON/OFF switch allows the microphone to be quickly muted when not in use. Interchangeable cabling and a fully serviceable design mean you can repair the headset in the field for reduced downtime. Rugged design and construction ensure that the headset can keep up with a demanding schedule. Make the CC-110 lightweight headset a part of your premium communication experience.

Features:

  • High quality dynamic cardioid microphone
  • 20Hz -20KHz frequency response
  • Choice of earpads: leatherette or foam
  • Flexible gooseneck microphone positioning
  • Boom rotation ON/OFF switch for quick microphone muting
  • Interchangeable cabling for easy connector change and repair
  • Fully serviceable headset
  • Rugged design

Specifications:

  • Headphone:
    • Type: Closed-back
    • Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
    • Frequency Response: 20Hz v- 20kHz
    • Impedance:
    • CC-110: 400Ω ±30%; at 1kHz typical
    • CC-220: 200Ω ±30%; at 1kHz typical
  • Microphone:
    • Element: Dynamic
    • Driver: 15mm, neodymium magnet
    • Polar Pattern: Cardioid
    • Frequency Response: 250Hz – 20kHz
    • Impedance:
      • CC-110: 200Ω ±30%; at 1kHz typical
      • CC-220: 200Ω ±30%; at 1kHz typical
    • Power: Maximum: 500mW
    • Sensitivity
    • Microphone Open Circuit Sensitivity: -64dB ±3.5dB; (0dB=1V/1Pa, at 1kHz , typical)
  • Headphone Sensitivity:
    • CC-110: 99dB ±3dB (SPL) / 1mW, at 1kHz typical
    • CC-220: 96dB ±3dB (SPL) / 1mW,at 1kHz typical
  • Connector: Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR
  • Dimensions: Packaging for CC-110 and CC-220: 6.7 x 8 x 3.5in (WxHxD), (170 x 205 x 90mm)
  • Weight:
    • CC-110: 5.1oz (145g) without 8-pin cable assembly and M3*18mm SCREW
    • CC-220: 6.8oz (195g) without 8-pin cable assembly and M3*18mm SCREW
