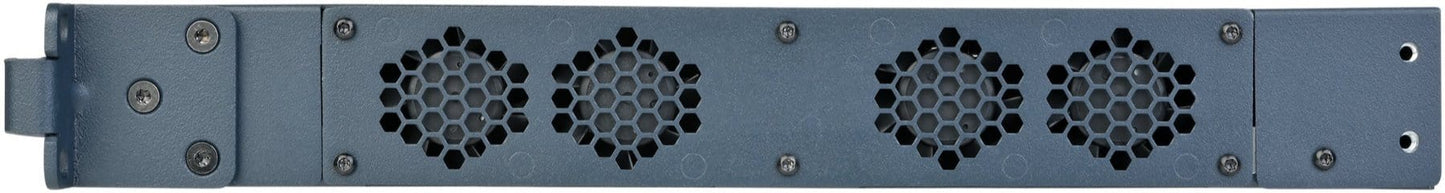

Clear-Com Arcadia Central Station 128 Licensed Ports 1RU with HelixNet 4-Wire / 2-Wire with Dante

The Clear-Com Arcadia Central Station is the centerpiece of a scalable IP networked intercom platform with support for more than 100 wired and wireless intercom user stations of various form factors, frequencies, and connectivity options.

Features:

• Combined Wired and Wireless Intercom
• Flexible Dante and Analog Interfacing
• Easy to use CCM browser configuration
• Scalable capacity licensing
• Fast front panel color touch screen with tactile encoders for control and configuration
• Plug-and-go with central discovery and pairing
• Supports FreeSpeak Wireless Intercom and HelixNet Wired Intercom
• Dante Audio Network Interfaces

Specifications:

• Capacity: (128) Licensed Ports
• FreeSpeak Wireless Intercom: (10) E1 Transceivers (1.9*, 2.4 GHz), (16) IP Transceivers (1.9*, 5GHz), (40) Beltpacks (1.9, 2.4, 5GHz)
• HelixNet Wired Intercom: (24) Enabled Channels, (64) Endpoints (HRM, HKB, HXIIBP)
• Dante Audio Network Interfaces: (64) Dante Ports
• Connectors: Headset 4-pin XLR-M (X4), 5-pin XLR-F (X5), Gooseneck Microphone ¼” TRS Threaded, 2-Wire I/O (4) XLR-3F
• 4-Wire I/O: (8) RJ45
• Audio Crossover Mode: Software selectable
• Program input/Stage output: XLR-3F, XLR-3M
• GPIO: (2) DB9F
• Weight: 7.3 lbs (3.3 kg)
• Dimensions: 19 x 1.7 x 13.9 in (482.6 x 43.2 x 353.1 mm)
