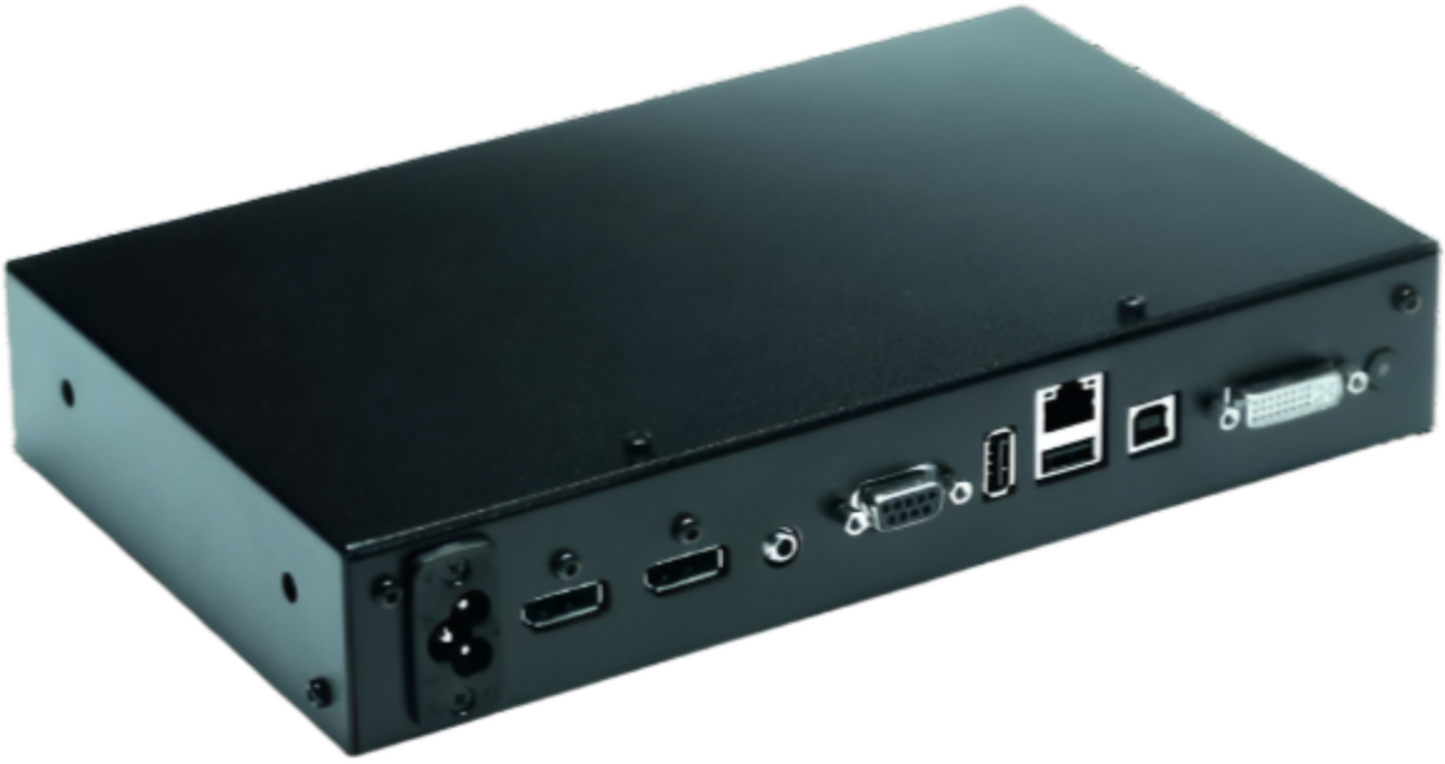

Christie Digital E100 MicroTile ECU Processor

Name: Christie Digital E100 MicroTile ECU Processor
Brand: Christie Digital
SKU: TZ-E100

Write a review Q&A SKU: TZ-E100 Solotech ID#: 100818030

Product variants

View full details

Description

Christie Digital E100 MicroTile ECU Processor

A MicroTiles array requires an ECU in order to display an image across the entire array. End users connect a PC or media player to the array using a DVI-D cable. The ECU
then ensures the supplied video signal is properly displayed across the entire array. For more complex arrays, multiple ECUs can be used. The ECU is able to communicate with all tiles in the array and with any other ECU using Christie’s proprietary HSSL interface. Each tile and ECU has a unique IP address, allowing full communication between tiles and ECUs across the network. The address of each tile is assigned using DHCP.

(ECU) dimensions:

Height: 50mm (1.97")
Width: 259mm (10.20")
Depth: 191mm (7.52")
Weight: 1.6kg (3.5lbs)

Processing:

Input signal compatibility: Single-link DVI-D (HDCP)
Processor bit rate: 165M pixels per second
Data link bit rate: 5Gbps
Color processing: 13 bits
Refresh rate: 47-63Hz frame-locked

Control interface: Ethernet with SNMP support, Serial
