Description

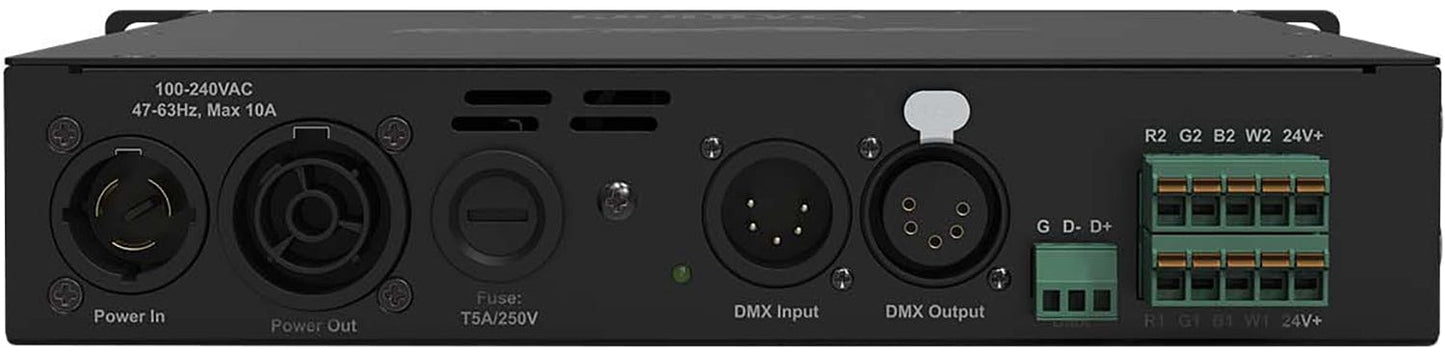

ChauvetPro ONAIRFLEXDRIVE2 OnAirFlex Drive 2 LED Driver

onAir Flex Drive 2 is an LED Driver ideal for TV studios seeking simple and impactful on-camera looks with integrated power supply and driver for a one-box modular solution. onAir Flex Drive 2 features 24v to allow longer run lengths for set pieces and light boxes, and 8 channels of output for complete flexibility with a choice of tapes and lengths. It also features adjustable PWM, making it ideal for broadcast compatibility. With two outputs, onAir Flex Drive 2 supports RGBW or generic 4-channel control for up to 350W of total power and assisted convection cooling perfect for studio environments. To ease installation, onAir Flex Drive 2 also features DMX 5pin and Phoenix connector for installation support.

Features:

  • TV focused 24 VDC constant voltage LED Driver with integrated power supply
  • Adjustable PWM makes this product ideal for broadcast compatibility
  • Two outputs support RGBW or generic 4-channel control for up to 350W of total power
  • Assisted convection cooling utilizes a quiet fan for studio environments
  • Built in overcurrent and short circuit protection with indicator LEDs
  • RDM supported for remote device management
  • Scalable rack mount system, two per 1U space
  • DMX 5pin and Phoenix connector for installation support

Specifications:

  • Dynamic Effects
    • Standalone Color Mixing: Yes
    • Built-in Automated Programs: Yes
  • Construction / Physical:
    • Dimensions: 5.4 x 4.3 x 0.8 in (137 x 109 x 20 mm)
    • Weight: 5.4 lb (2.44 kg)
    • Exterior Color: Black
    • Housing Material: Steel
    • Rackmount: 1U
  • Connections:
    • Power Connection: Edison (Local) plug to Neutrik powerCON TRUE1 Compatible
    • Power Input: Seetronic Powerkon (powerCON Compatible)
    • Power Output: Seetronic Powerkon (powerCON Compatible)
    • Device Outputs (5-pin Phoenix Connector): 2
    • Physical Linking Per Port: 2 RGBW Tape
    • Data Connectors: 5-pin XLR, 3 Pin Phoenix Connector
    • Cable Length (power): 5 ft (1.5 m)
    • Total Max Cable Extension Length Per Port: 100 ft (30.48m) 16 AWG
  • Control:
    • Control Protocol: DMX
    • DMX Channels: 8 or 10
    • Modes/Personalities: RGBW, RGBW+D
    • Total Output Power (Per Port): 200 W
    • Total Output Power (Total): 350 W
  • Electrical:
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V;
    • Power and Current: 400 W, 3.34 A @ 120 V, 60 Hz
    • Power and Current: 400 W, 1.93 A @ 208 V, 60 Hz
    • Power and Current: 400 W, 1.74 A @ 230 V, 50 Hz
  • Certifications / Qualifications:
    • CE
    • US Safety: UL 8750
    • Canadian Safety: CSA C22.22 No. 250.13
    • IP Rating: IP20, dry location
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
