Description

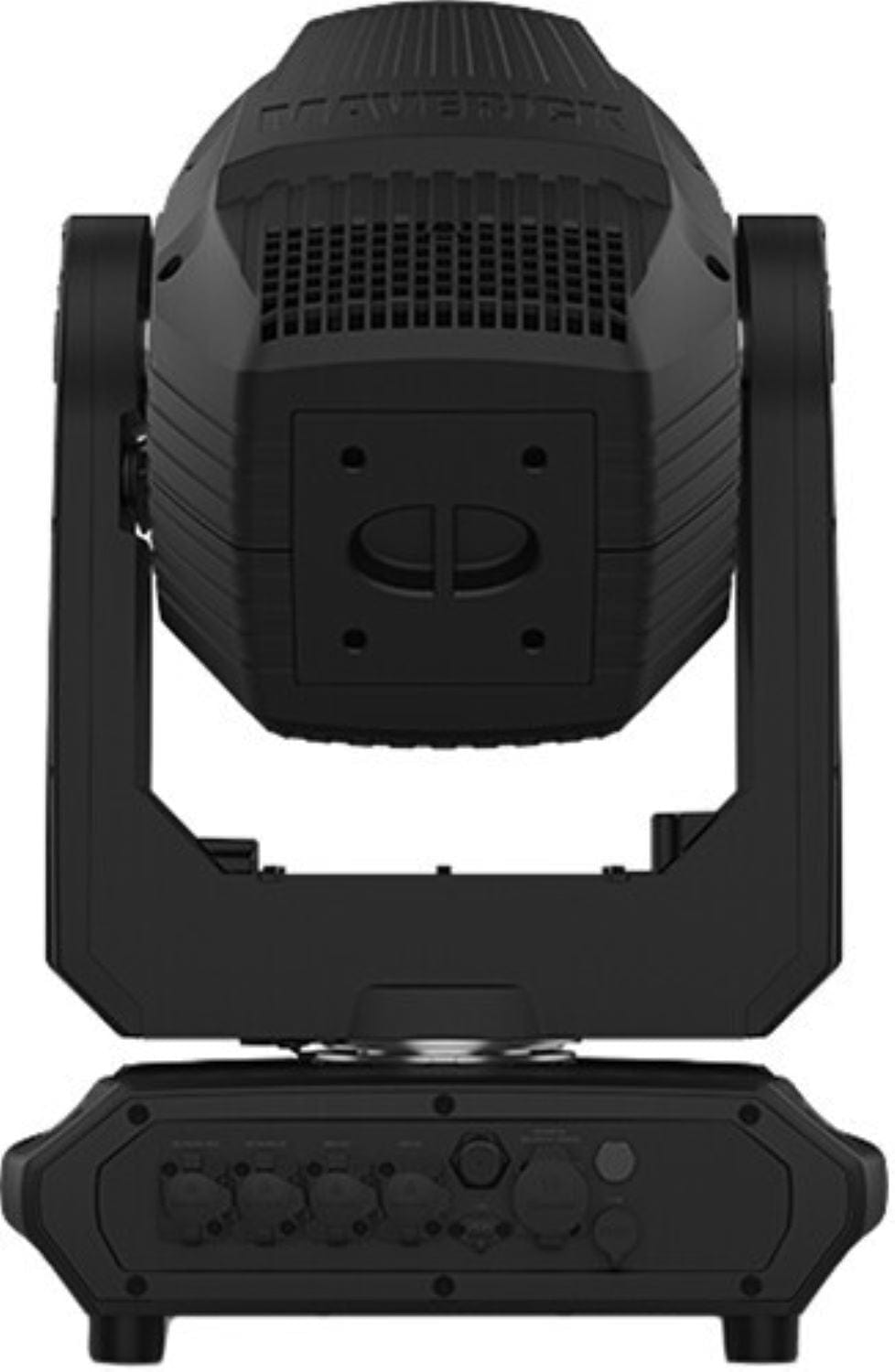

ChauvetPro MAVERICKSTORM1BEAM Maverick Storm 1 Beam Moving Head Light

Maverick Storm 1 Spot is a powerful, IP65-rated Cool White LED moving head that compliments the Maverick Storm 1 Wash perfectly. The outdoor-ready unit features a compact and rugged die-cast aluminum housing built with marine grade stainless steel screws to withstand even the harshest elements. With an output of just over 14,500 lumens, its customized optics feature variable CMY + CTO color mixing and a massive zoom range. A rotating and static gobo wheel, 5-facet motorized and rotating prism, animation wheel, light and medium frosts, and iris create killer visual effects. The RDM-enabled unit features 16-bit dimming and can be controlled via DMX, W-DMX, sACN, and Art-Net.

Features:

  • Fully featured IP 65 Rated 480W LED yoke spot fixture including CMY+CTO color mixing, a color wheel, animation wheel, 6.5:1 zoom, a 5 facet prism, two frosts, a static and rotating gobo wheel, and a patent-protected sunshield optical protection system
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • 5 facet prism
  • Independent light and medium frosts for beam control
  • Animation wheel for enhanced visual effects
  • Iris for total beam control
  • RDM control over DMX for fixture reporting
  • 7.1° to 51° zoom range for variable beam sizes
  • 3 menu presets and preset cross load for decreased shop setup time
  • True 1 compatible power input
  • Battery backup display with auto-rotate depending on fixture orientation
  • Intergraded and controllable sunshield for protecting optical system when fixture is not in use

Specifications:

  • Optical:
    • Light Source: 1 LEDs (CW) 480 W, 6604 K, 50,000 hours life expectancy
    • Color Temperature (at full): 6604 K
    • CRI: 69
    • Front Lens Diameter: 132 mm
    • TLCI: 46.8
    • Beam Angle: 7° to 42°
    • Field Angle: 8° to 48°
    • Cutoff Angle: 9.2° to 51°
    • Zoom Range: 7.1° to 51°
    • Lumens – Source: 32,000
    • Lumens – Output: 14,500
    • Illuminance (8°): 28,829 lux @ 5 m
    • Illuminance (48°): 1,528 lux @ 5 m
    • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
  • Dynamic Effects:
    • Pan and Tilt: 540°/270°
    • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
    • Colors: 7 + white, split colors, continuous scroll at variable speeds
    • Colors: CMY flags, CTO flag
    • Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    • Gobos (2): 9 + open (metal), static, continuous scroll at variable speeds
    • Gobo Size (1): Gobo Wheel 1 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
    • Gobo Size (2): Gobo Wheel 2 (static): 160 mm (outside), 23 mm (image), 0.8 mm (max. thickness)
    • Effect Wheel: 1 effect
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Motorized
    • Focus: Motorized
    • Frost 1: Light Frost - Motorized
    • Frost 2: Medium Frost - Motorized
    • Iris: Motorized
    • Prism: 3 Facets, motorized, rotating
    • Strobe Rate: 0 to 20 Hz
    • Move-in-Black: Yes
    • Dim Curves: 4
  • Construction / Physical:
    • Dimensions: 17.91 x 12.56 x 28.43 in (455 x 319 x 722 mm)
    • Dimensions (shipping size): 32.87 x 16.33 x 22 in (83.5 x 41.5 x 56 mm)
    • Weight: 85.8 lb (38.9 kg)
    • Weight (shipping weight): 92.6 lb (42 kg)
    • Exterior Color: Black
    • Housing Material: High-impact flame-retardant polymer
  • Connections:
    • Power Connection: Edison plug to Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Data Connectors: 5-pin IP rated, Neutrik IP rated RJ45 Connectors in/out
    • Cable Length (power): 5 ft (1.5 m)
  • Control:
    • Control Protocol: Art-Net, DMX, W-DMX, RDM, sACN
    • DMX Channels: 26 or 33
    • Art-Net Channels: 26 or 33
    • Modes/Personalities: 2 personalities (26, 33)
  • Electrical:
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 2 units @ 120 V; 3 units @ 208 V; 4 units @ 230 V
    • Power and Current: 700 W, 5.82A @ 120 V, 60 Hz
    • Power and Current: 705 W, 3.32 A @ 208 V, 60 Hz
    • Power and Current: 704 W, 2.97A @ 230 V, 50 Hz
  • Certifications / Qualifications:
    • CE, MET, FCC
    • IP Rating: IP65
    • Noise Level (ambient): 36.9 dB level @ 1 m
    • Noise Level (Full): 61.3 dB level @ 1 m
    • Noise Level (Eco): 55.5 dB level @ 1 m
    • Temperature (Ambient): 14 °F to 104 °F (-10 °C to 40 °C)
