Description

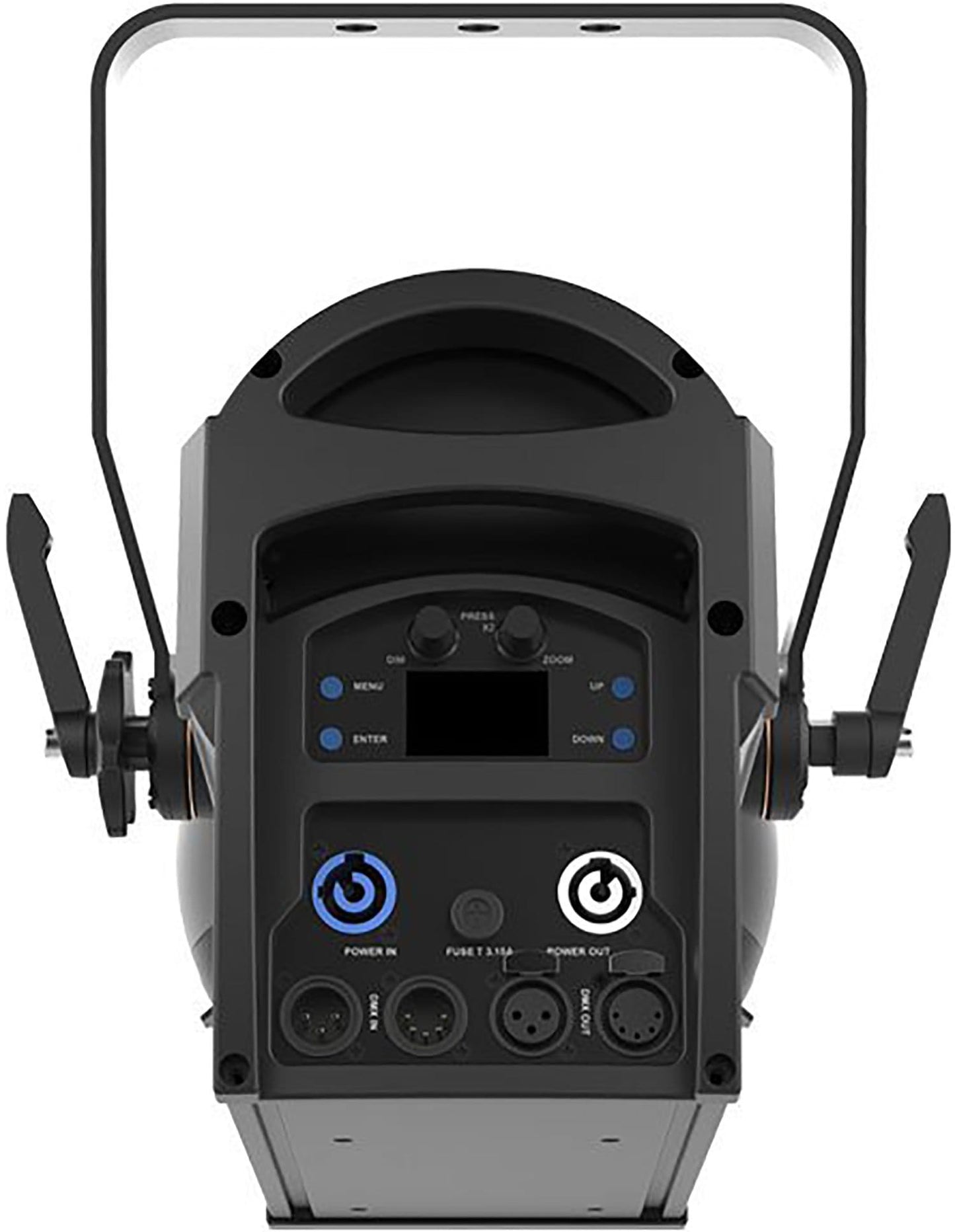

Chauvet Ovation FD-105WW Warm White LED Fresnel

Ovation FD-105WW is a LED Fresnel wash utilizing data and power sensors that make it possible to run on both dimming power systems and constant power rigs. A massive zoom range of 25° to 76° and a beautifully soft, warm white wash with high CRI make it a worthy LED replacement for aging incandescent six-inch Fresnels. Enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems.

Features:

  • 6" warm white LED Fresnel with class leading output
  • Soft and even field of light
  • Works perfectly on conventional dimmers or constant power with DMX
  • Auto-senses power/data and responds appropriately
  • Superior low end dimming whether using dimmers or constant power
  • Perfect fixture for the retrofit market, utilizes existing dimming infrastructure flawlessly
  • 16-bit dimming resolution (DMX mode) for smooth fades
  • Flat, even field of light, with manual zoom (25-76 deg)
  • Virtually silent operation for use in any situation

Specifications:

    Optical:
    • Light Source: 1 LEDs (WW) 80 W, (2 A), 50,000 hours life expectancy
    • Color Temperature (at full): 3,197K
    • CRI: 91
    • Beam Angle: 8° to 51°
    • Field Angle: 14° to 63°
    • Zoom Angle: 14° to 63°
    • Illuminance (14°): 6,609 lux @ 5 mIlluminance (64°): 340 lux @ 5 m
    • Selectable PWM: 600Hz, 1200Hz, 2000Hz, 2400Hz, 6000Hz, 18000Hz, 25000Hz
    Dynamic Effects:
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Manual
    • Strobe Rate: 0 to25 Hz
    • Dim Modes: 5
    • Dim Curves: 4
    Construction/Physical:
    • Dimensions: 12.8 x 11 x 16.5 in (325 x 279 x 420 mm)
    • Weight: 13 lbs. (5.9 kg)
    • Exterior Color: Black
    • Accessory Holder/Gel Frame Size: 6.25 in/159 mm
    Connections:
    • Power Connection: Local plug to Neutrik® powerCON®
    • Power Input: Neutrik® powerCON®
    • Power Output: Neutrik® powerCON®
    • Data Connectors: 3- and 5-pin XLR
    • Cable Length (power): 5 ft (1.5 m)
    Control:
    • Control Protocol: DMX, RDM, Dimmer
    • DMX Channels: 1, 2 or 3
    • Modes/Personalities: 3 personalities (UNO, DOS, STD-P)
    Electrical:
    • Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
    • Power Linking: 14 units @ 120 V; 25 units @ 230 V
    • Power and Current: 115 W, 0.951 A @ 120 V, 60 Hz
    • Power and Current: 125 W, 0.541 A @ 230 V, 50 Hz
    Certifications/Qualifications:
    • CE, MET
    • IP Rating: IP20, dry location
