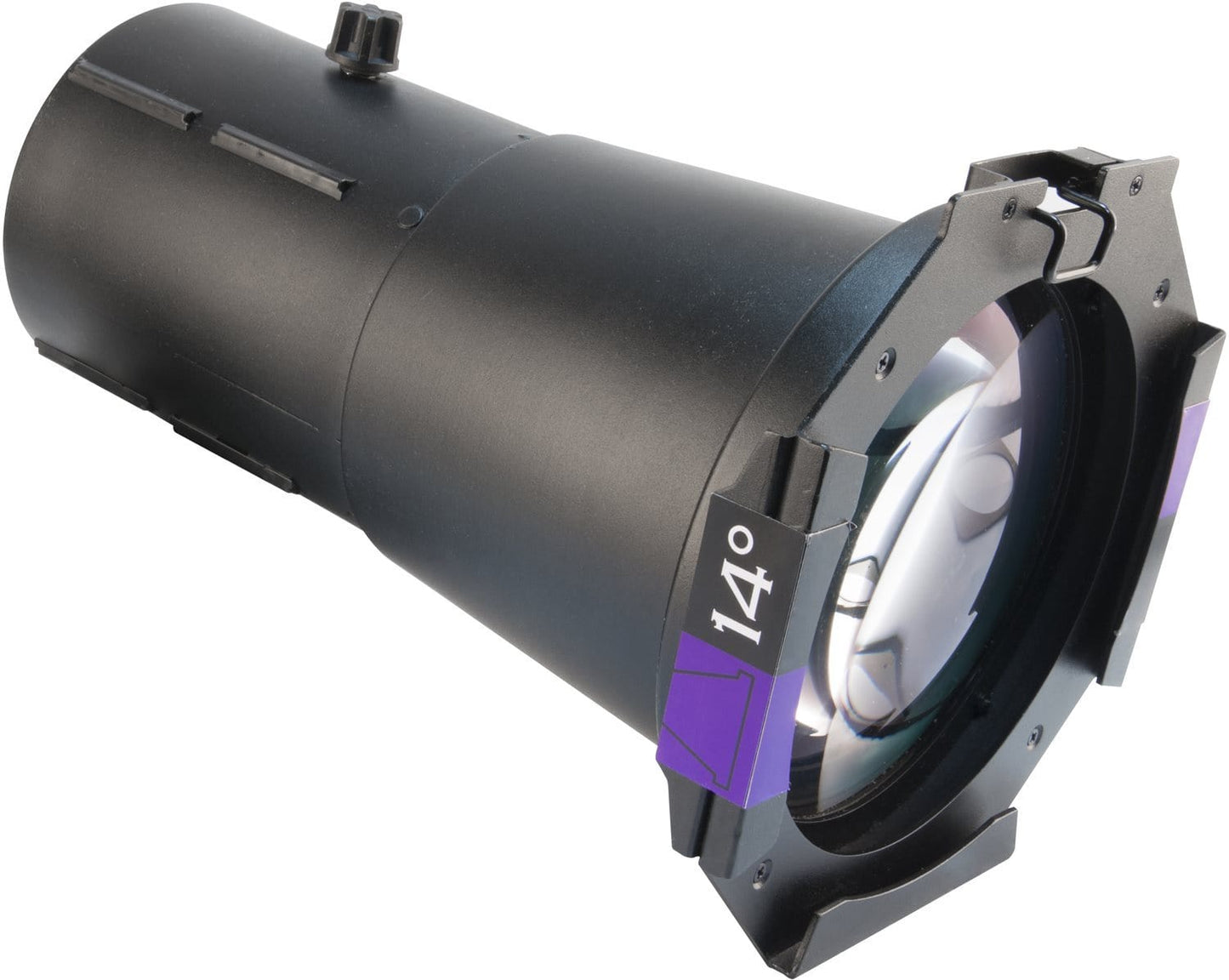

Chauvet OHDLENS14 14 Degree HD Lens Tube Only
Ovation Ellipsoidal HD Lens Tubes are designed to fit all ellipsoidal fixtures as well as many other standard ERS-style fixtures. Lens tubes are constructed using high-precision HD optics encased in rugged housings designed to survive the rigors of touring, broadcast and theatrical production. Each lens tube ships with a standard size gel frame.
Features:
- Fixed focal length lens tube for the Ovation ellipsoidal fixtures
- Dual aspheric lenses provide precise focus for crisp gobo projection
- Integrated gel frame holder and gel frame included
Specifications:
- OPTICAL
- Installed Optics: 14°
- CONSTRUCTION / PHYSICAL
- Dimensions: 12.7 x 7.8 x 8 in (323 x 198 x 204 mm)
- Weight: 5.4 lb (2.4 kg)
- Accessory Holder/ Gel Frame Size (14° lens): 7.50 in (191 mm)
- Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
- CERTIFICATIONS / QUALIFICATIONS
- IP Rating: IP65, outdoor/wet
- WHAT'S INCLUDED
- OHDLENS14
- OPTICAL
- Installed Optics: 14°
- CONSTRUCTION / PHYSICAL
- Dimensions: 12.7 x 7.8 x 8 in (323 x 198 x 204 mm)
- Weight: 5.4 lb (2.4 kg)
- Accessory Holder/ Gel Frame Size (14° lens): 7.50 in (191 mm)
- Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
- CERTIFICATIONS / QUALIFICATIONS
- IP Rating: IP65, outdoor/wet
- WHAT'S INCLUDED
- OHDLENS14
