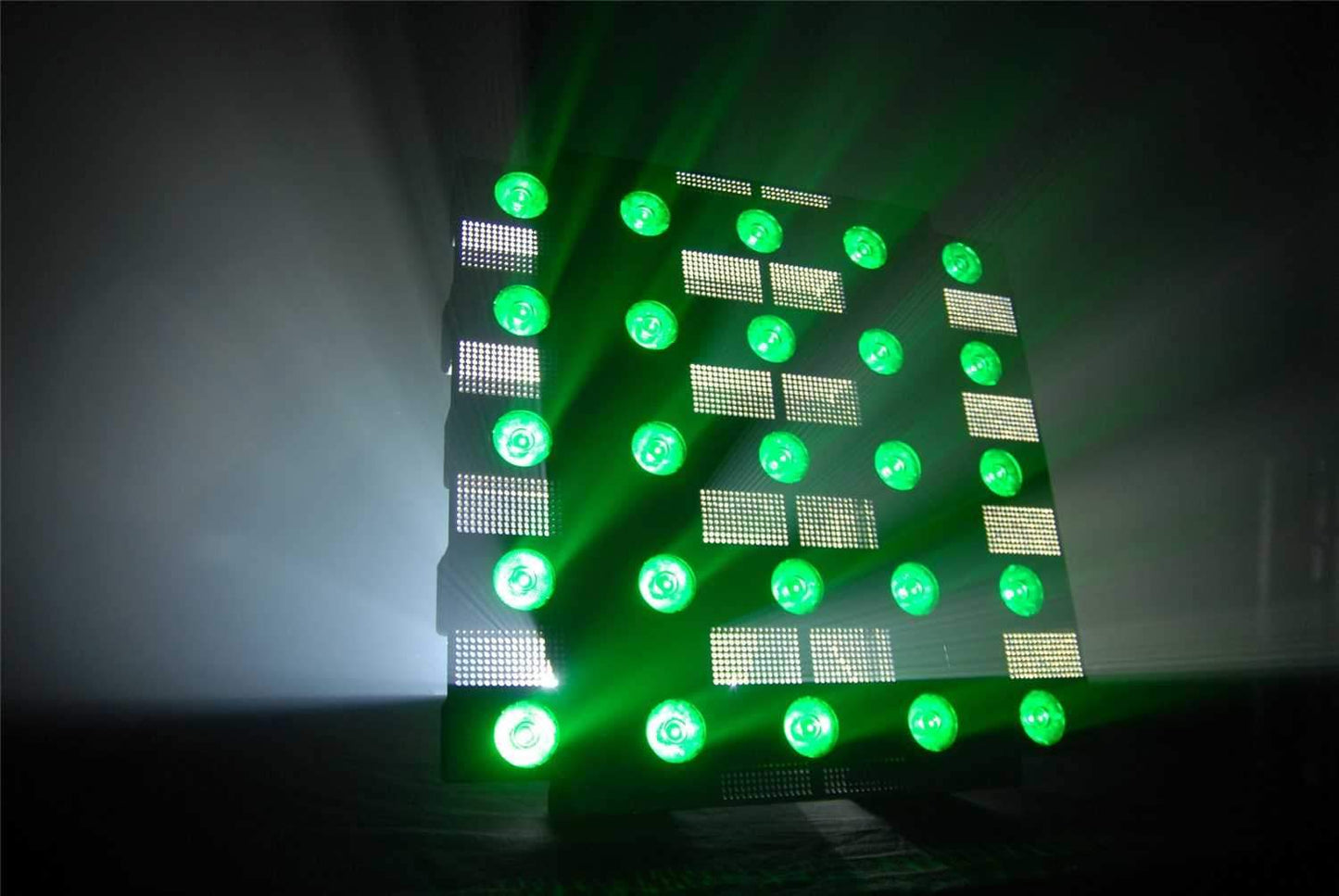

Chauvet Nexus AQ5x5 Narrow Beam LightA new addition to our family of pixel mapping displays, The Nexus Aq 5x5 LED system is made for the stage and studio. A truly versatile LED system, Nexus Aq 5x5 projects narrow beams of light, provides full color mixing washes, makes instant audience blinders, and displays impactful text and vivid animated graphics in full RGBW color. Nexus Aq 5x5's smooth dimming curve and mounting versatility make it a perfect application into live events, broadcast, studio, theatre, and touring applications.
Features:- Stage blinder delivering great output due to 25 RGBW LEDs
- Project narrow beams of light
- Create impactful text and vivid animated graphics
- Smooth dimming curve
- Built-in power supply for easy use
- Design with intuitive individual pixel-mapping options: Kling-Net, Art-Net, DMX
- Flexible panel system with integrated locks and 0.5 x 0.5 m footprint optimal for larger arrays
- Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin XLR DMX connections
- Built-in effects triggered by DMX
- HSV, HSI, DMX control options
- Control Protocol: Art-Net, Kling-Net, DMX
- DMX Channels: 4, 6, 10, 100 or 105
- Art-Net Channels: 100
- Data Connectors: Neutrik® etherCON®
- Light Source: 25 LEDs (quad-color RGBW) 10 W, (2.6 A), 50,000 hours life expectancy
- Built-in Automated Programs: Yes
- Pixels: 5 x 5
- Pixel Pitch: 100 mm
- Pixel Density: 100/m2
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 8 degrees
- Field Angle: 13 degrees
- Illuminance (total): 11,350 lux @ 5 m
- Color Temperature (range): 2,800 to 10,000 K
- Color Temperature (full): 10,650 K
- IP Rating: IP40, indoor use
- Cable Length: 5 ft (1.5 m)
- Power Connection: Edison plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 320 W, 2.66 A @ 120 V, 60 Hz
- Power and Current: 318 W, 1.52 A @ 208 V, 60 Hz
- Power and Current: 318 W, 1.38 A @ 230 V, 50 Hz
- Weight (single unit): 22.2 lb (10 kg)
- Weight (roadcase): 184 lb (83.5 kg)
- Dimensions (single unit): 3.8 x 19.7 x 19.7 in (95.5 x 500 x 500 mm)
- Dimensions (roadcase): 34 x 24 x 27 in (855 x 600 x 690 mm)
- Housing Material: Aluminum alloy
- Compatible Mounting Options: Affinity Rig Kit (truss mounting), or M12 Bolt/Clamp
- (rear mounting/adjustable bracket)
- Accessories (optional): ArKaos Media Master Express + KN software
- Approvals: CE, MET pending
