Description

Chauvet Legend-5000X DMX Moving Head



The Legend 5000 features a 575-watt discharge lamp, a second color wheel equipped with a mechanical iris and a user selectable 16-bit or 8-bit pan/tilt resolution. Multiple gobos, colors and prisms can be layered to produce impressive scenic effects.


CONTROL FEATURES:
  • 14 or 16 channel DMX-512 moving yoke
  • Pan: 570° / tilt: 270°
  • Variable strobe/shutter
  • Color wheel
    - 11 colors plus white
    - Split colors
    - Rainbow color spin at variable speeds
  • Second color wheel
    - 11 colors plus white
    - 1 CT filter, 4 solid, 4 split-colors & 2 quad-colors
    - Rainbow color spin at variable speeds
  • Static gobo wheel
    - 9 interchangeable gobos plus open
    - Gobo wheel spin in both directions at variable speeds

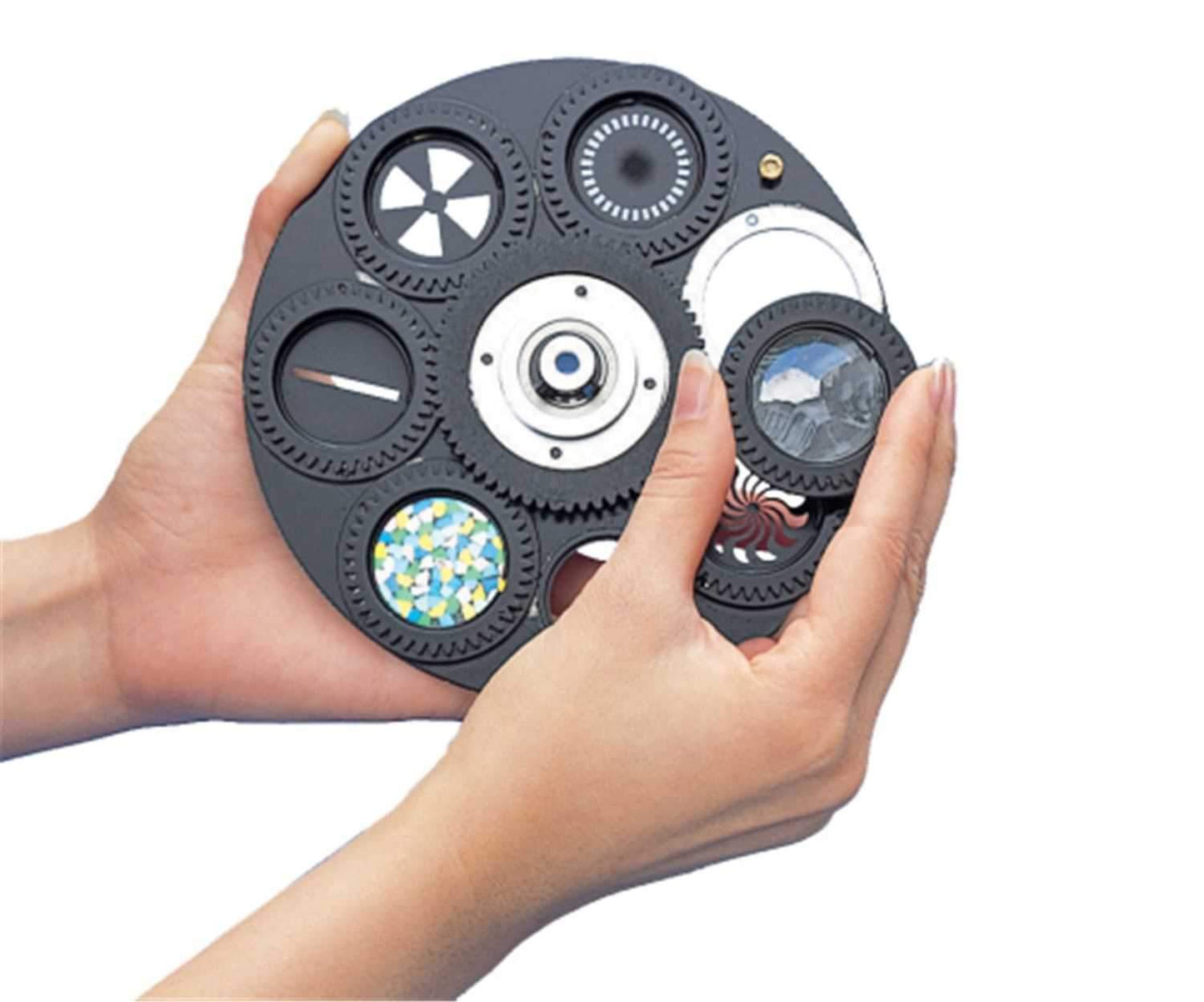

  • Indexing rotating gobos
    - 6 interchangeable rotating + open
    - 5 metal, 1 glass gobo
    - Additional : 9 metal gobos
    - Gobos fully indexed
    - Rotating gobo wheel spin at variable speeds
    - Gobo Bounce
  • 3-facet, high-speed rotating prism in both directions at variable speeds
  • Variable motorized iris (with pulse and random effect)
  • Variable motorized focus
  • Variable motorized dimmer (0 – 100%)
  • Remote fixture reset, lamp on/off and vector speed channel

ADDITIONAL FEATURES:
  • Automatic pan & tilt correction
  • Micro-stepping motors
  • Lamp use timer
  • LED display
  • Display on/off setting
  • Built in demo programs
  • User-selectable 16bit or 8bit pan/tilt resolution
  • Removable air filter
  • Thermal switch
  • Fan cooled

SPECIFICATIONS:
  • Beam angle: 15°
  • Footcandles: 10,250 @ 1 meter
  • Lux: 110,290 @ 1 meter
  • Light Source : HMI575/GS 575W 6000°K 1,000hrs
  • Current draw: (peak 936W @ 120V) (inrush 1320W @ 120V)
  • Power: Switchable (internal) 100V, 115V, 200V, 230V – 50/60Hz
  • Weight: 79.5lbs (32.4kgs)
  • Size: 16in x 16in x 24in (406mm x 406mm x 609mm)
  • 2-year limited warranty
