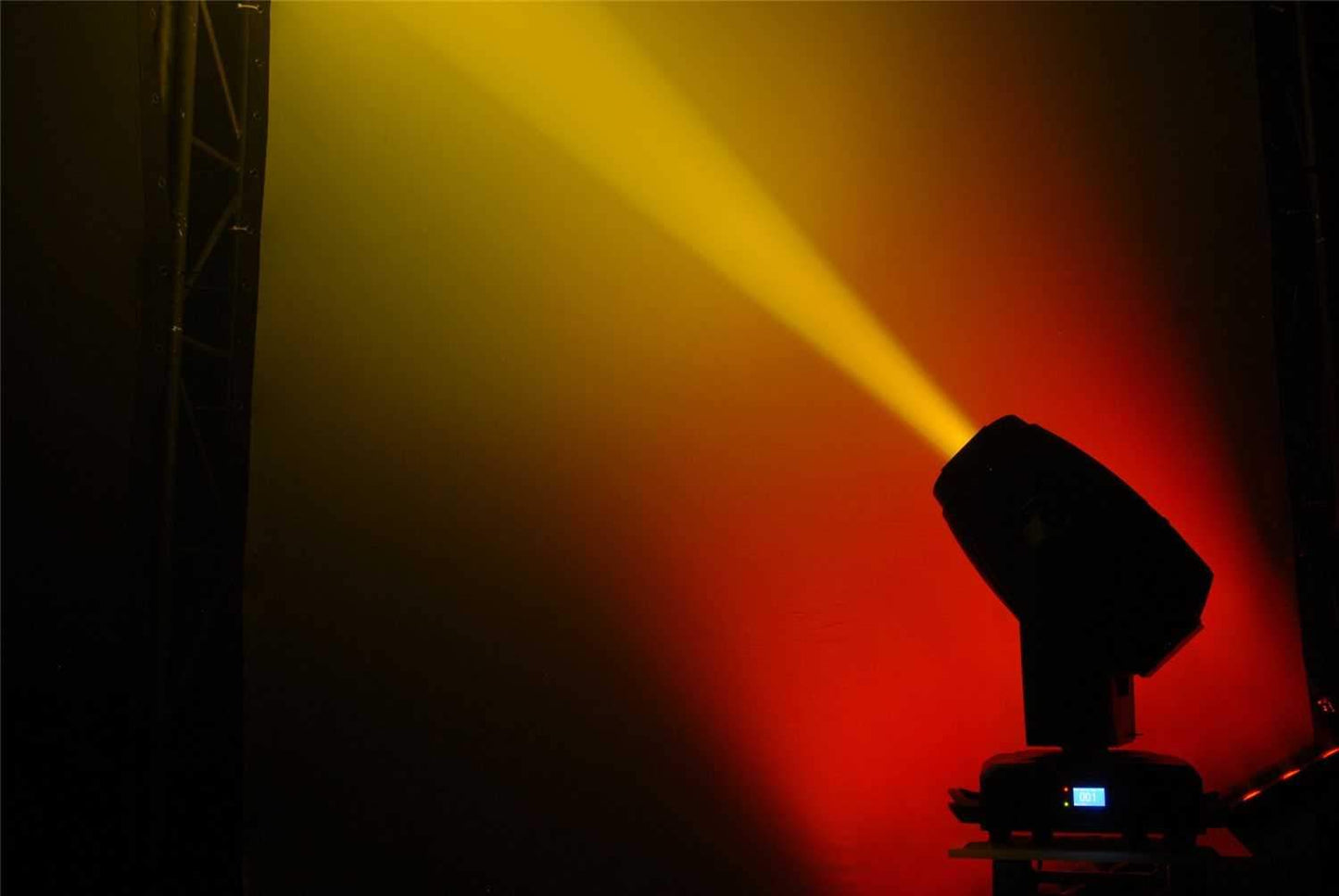

Chauvet Legend 330SR Spot LED Moving Head
Extremely bright with crisp crystal clear optics, the Legend 330SR Spot is a class leader in output and gobo projection. Legend 330SR Spot is quick and agile fixture with precise movement and a zoom range of 8 degrees to 23 degrees, making it a great choice for touring rigs, broadcast, or live events. Legend 330SR Spot’s 330W Osram Sirius lamp gives the fixture a powerful punch of 29,940 lux at 5 meters and a field that makes even the most complicated gobo stunning.
Features:- 3-pin and 5-pin DMX input/output connections
- Virtually silent operation for use in any situation
- Precision optics for crisp, even gobo projections
- Variable frost for wash-style effects
- 8-facet rotating prism with zoom for stunning effects
- Fast, precise pan and tilt movement
- Neutrik powerCON power input
- Uses Osram Sirius 330W lamp source with a rated 1500-hour lamp life
- Compact moving yoke spot fixture with zoom optics and motorized focus
- DMX Channels: 21 or 27
- Data Connectors: 3- and 5-pin XLR
- Light Source: Osram Sirius 330 W lamp, 7,500 K, 1,500hours of lamp life
- Pan and Tilt: 540 degrees/270 degrees
- Automatic Pan/Tilt Correction: Yes
- Built-in Automated Programs: No
- Customizable Programs: No
- Recall Custom Programs: No
- Colors: 7 + white, split colors, continuous scroll at variable speeds
- Colors: CMY Flags
- Gobos (1): 8 + open (4 metal + 4 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 14 + open (14 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1(rotating): 17.8 mm (outside), 14 mm (image), 1.3 mm (max. thickness)
- Prism: 3-Facets, motorized, rotating
- Dimmer: Motorized
- Focus: Motorized
- Iris: Motorized
- Frost: Motorized
- Shutter/Strobe: Motorized
- Beam Angle: 8 degrees to 23 degrees
- Field Angle: 8.4 degrees to 27.5 degrees
- Zoom Angle: 8 degrees to 23 degrees
- Illuminance (8 degrees): 29,940 lux @ 5 m
- Illuminance (23 degrees):2,864 lux @ 5 m
- IP Rating: IP20, dry location
- Cable Length: 5 ft (1.5 m)
- Power Connection: Bare wire to Neutrik powerCON
- Power Input: Neutrik powerCON
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 514 W, 4.3 A @ 120 V, 60 Hz
- Power and Current: 495 W, 2.5 A @ 208 V, 60 Hz
- Power and Current: 495 W, 2.3 A @ 230 V, 50 Hz
- Weight: 47.4 lb (21.5 kg)
- Dimensions: 16.5 x 15.3 x 26 in (420 x 390 x 660 mm)
- Approvals: CE, MET pending
