Chauvet EPIXSTRIP LED Video Panel Piece

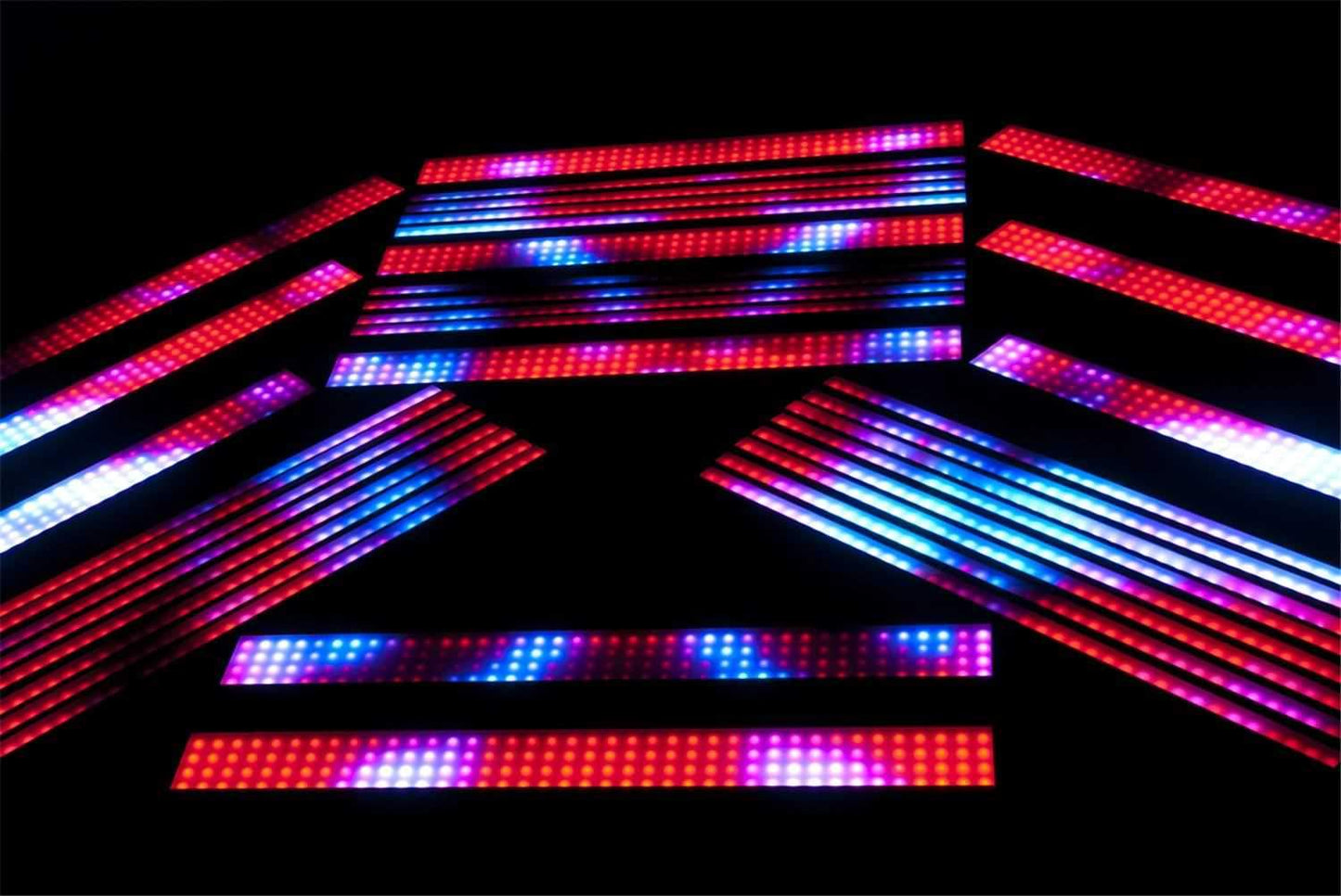

EPIX Strip is a 1-pixel wide strip, designed for video and pixel mapping applications with countless of layout options. It has 40 SMD LEDs and receives power and real-time data via an RJ45 connection directly from the EPIX Drive 640 module, capable of automatically configuring up to 16 units for rapidly composing a large pixel-mapping video system. The Kling-Net protocol automatically configures real-time video data, eliminating the hassle of pixel-by-pixel programming. PowerCON in/out facilitates connections.
Features:- Controlled via Arkaos Kling-Net which provides fast and easy assignment and control
- A video/pixel mapping system that doesn't require years of experience or technical know-how to design, set-up or operate
- Does NOT require piles of processing, driver and signal distribution equipment to create large scale displays
- Independent system of strip style fixtures that can be used for video and pixel mapping applications with countless layout options
- Receives power and data via an RJ45 connection from the EPIX Drive 640
- Tri-color SMD LEDs covered by a smooth diffuser plate gives excellent color rendering and wide viewing angles
- Source: Tri-color 5050 SMD LEDs
- Pixels/Strip: 40 Pixels
- Pixel Pitch 25 mm
- Display Refresh Rate: 400 Hz
- Video Refresh Rate: 60 fps
- Viewing Angle: 120°
- Luminance: 850 NIT
- Input Voltage: 24 VDC (by EPIX Drive 640)
- Power Linking: 4 EPIX Strips per Drive 640 output (4 available)
- Size: 1.4 x 39.3 x 4.1 in (36 x 997 x 104 mm)
- Weight: 5.5 lbs (2.5 kg)
- Mounting Design: Mounting Bracket
- Housing Material: Steel
- Power Connection: RJ45 (power+control)
- IP20, dry location
