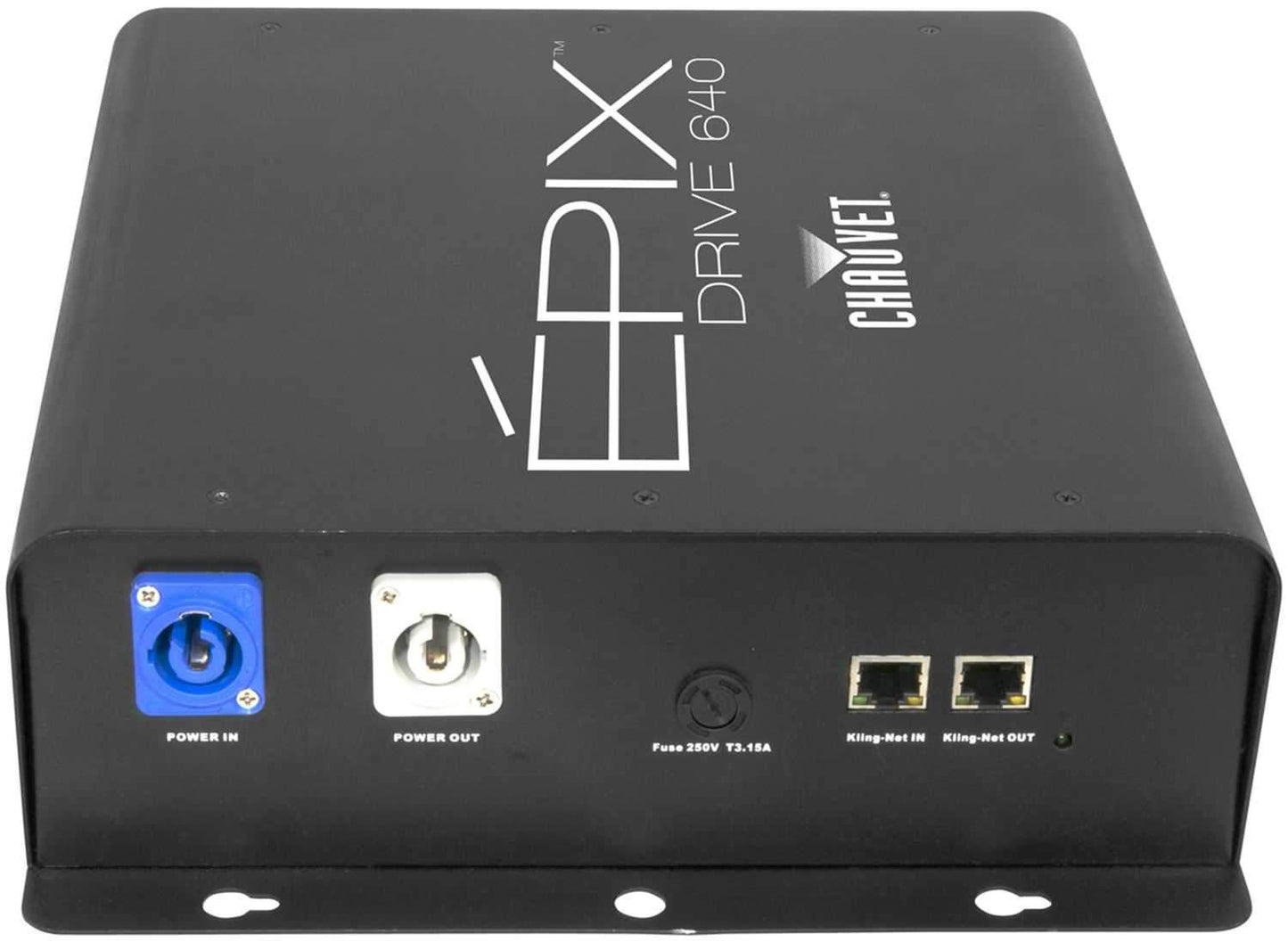

Chauvet EPIXDRIVE640 Pixel Mapping Video Control
EPIX Drive 640 provides power and data for up to 16 EPIX Strips to rapidly compose a large pixel-mapping video system. It features Neutrik powerCON in and out connections and RJ45 for control connection. EPIX Drive 640 uses ArKaos MediaMaster Express as computer software interface.
Features:- Controlled via Arkaos Kling-Net which provides fast and easy assignment and control
- A video/pixel mapping system that doesn't require years of experience or technical know-how to design, set-up or operate
- Does NOT require piles of processing, driver and signal distribution equipment to create large scale displays
- Intended to be used with EPIX Strips and future products
- Utilizes powerCON in and out connections for power and RJ45 for Kling-Net protocol communication
- Video Source: RJ45 connection (2, RJ45 Kling-Net in and out)
- Video Output: 4, RJ45
- Display Refresh Rate: 400 Hz
- Video Refresh Rate 60 fps
- Provides power and data for up to 16 EPIX strips
- Computer software interface: Kling-Net protocol via Arkaos MediaMaster Express + Kling-Net
- Input voltage: Switchable 120/230 VAC 50/60 Hz
- Power and current: 310 W, 4.12 A @ 120 V 60 Hz
- Power and current: 303 W, 2.32 A @ 208 V 60 Hz
- Power and current: 299 W, 2.16 A @ 230 V 50 Hz
- Power linking: 3 units @ 120 V / 5 units @ 208 V / 6 units @ 230 V
- Size: 10 x 9.1 x 2.9 in (253 x 230 x 74 mm)
- Weight: 6.3 lbs (3 kg)
- Mounting Design: Clamp/bolt mounting holes
- Housing Material: Steel
- Power Connection: Neutrik powerCON
- Control Connection: RJ45
- IP20, dry location
