Chauvet EPIX Bar LED Pixel Mapped Fixture

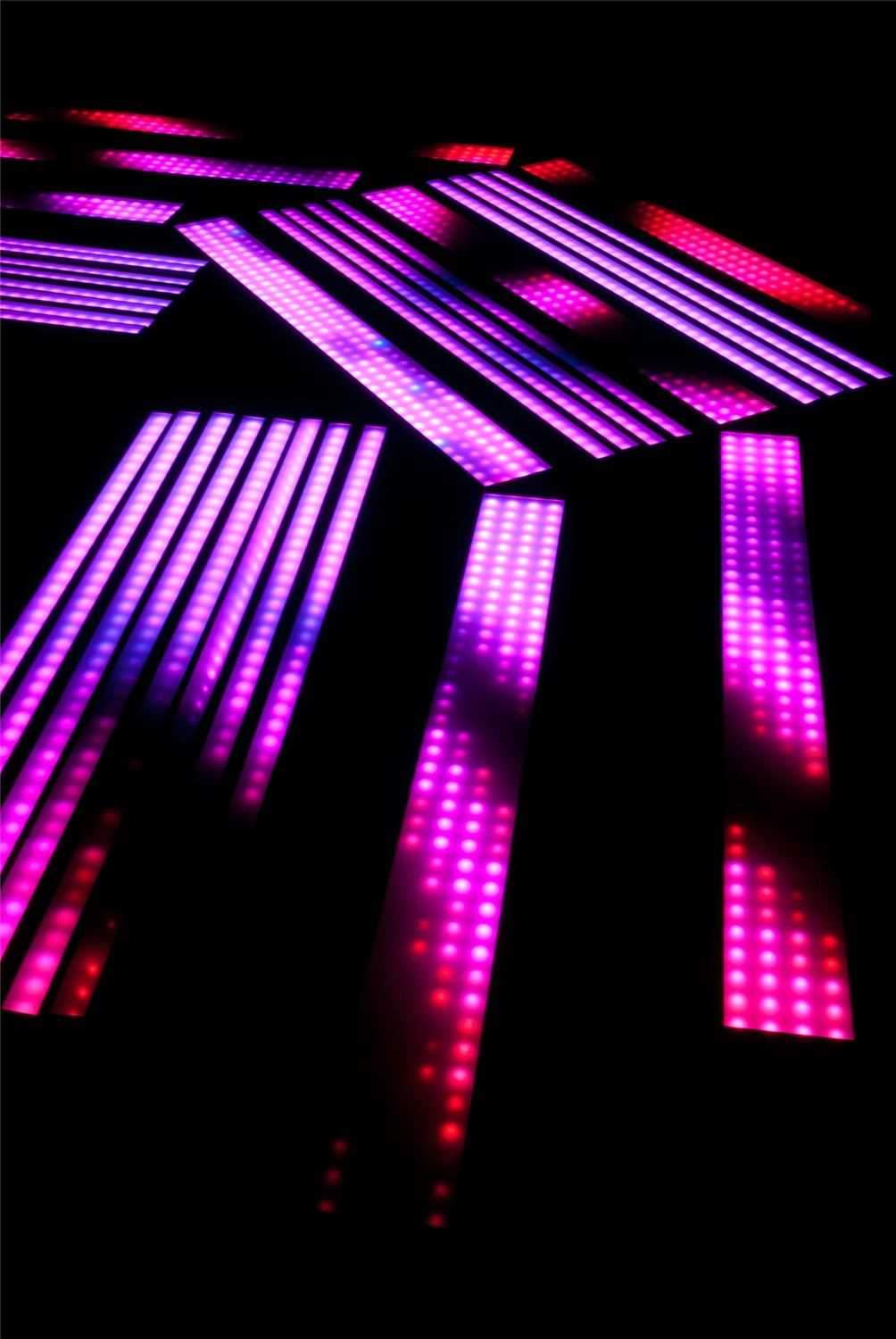

EPIX Bar is a pixel-mapping linear fixture incorporating 160 brilliant tri-colored SMD LEDs for dynamic video displays. By accepting a direct feed from ArKaos Kling-Net, it eliminates the hassle of pixel-by-pixel programming and intuitively configures images and effects in any orientation. Versatile and resourceful, it can be positioned vertically, horizontally or obliquely and on any side of a mounting structure.
Features:- Controlled via Arkaos Kling-Net which provides fast and easy assignment and control
- A video/pixel mapping system that doesn't require years of experience or technical know-how to design, set-up or operate
- Does NOT require piles of processing, driver and signal distribution equipment to create large scale displays
- Independent system of strip style fixtures that can be used for video and pixel mapping applications with countless layout options
- Tri-color SMD LEDs covered by a smooth diffuser plate give excellent color rendering and wide viewing angles
- Utilizes powerCON in and out connections for power and RJ45 for Kling-Net protocol communication
- Video Source: See EPIX Drive 640
- Source: Tri-color 5050 SMD LEDs
- Pixels/Bar: 160 Pixels
- Pixel Pitch: 25 mm
- Display Refresh Rate: 400 Hz
- Video Refresh Rate: 60 fps
- Viewing Angle: 120°
- Luminance: 850 NIT
- Input voltage: Auto-ranging 100-240 VAC 50/60 Hz
- Power and current: 132 W, 1.1 A @ 120 V 60 Hz
- Power and current: 125 W, 0.6 A @ 208 V 60 Hz
- Power and current: 138 W, 0.6 A @ 230 V 50 Hz
- Power linking: 8 units @ 120 V / 16 units @ 208 V / 16 units @ 230 V
- Control: Kling-Net protocol via Arkaos MediaMaster Express + Kling-Net
- Size: 4.6 x 39.3 x 5 in (118 x 997 x 126 mm)
- Weight: 11.5 lbs (5.2 kg)
- Mounting Design: Mounting Bracket
- Housing Material: Steel
- Power Connection: Neutrik powerCON
- Control Connection: RJ45
- IP20, dry location
