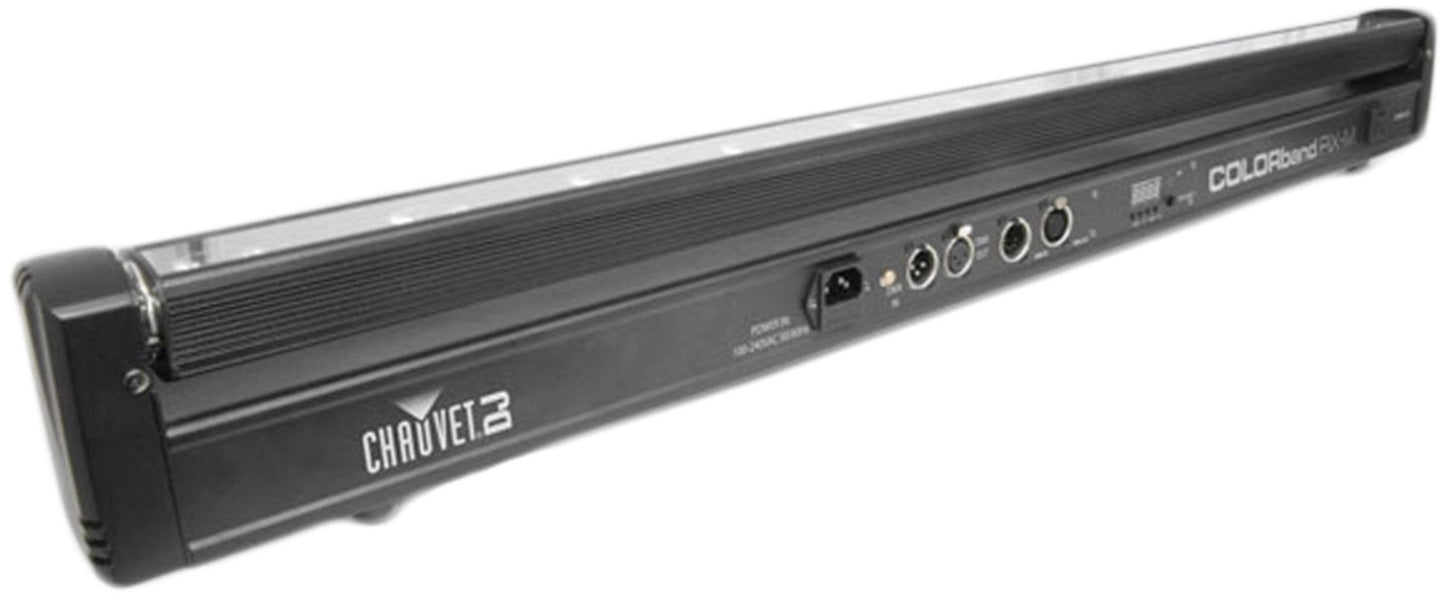

Chauvet DJ COLORBANDPIXMILS COLORband PiX-M ILS LED Wash Light (RGB)
COLORband PiX-M adds a new dimension of motion to the popular COLORband PiX linear fixture. Powered by 12 tri-color LEDs, it uses DMX-controllable motors to sweep back and forth, or from position to position, creating dynamic effects, especially when used in a line or matrix of multiple units. It includes built-in automated programs to create stunning combinations of light and motion, while 3- and 5-pin DMX connections allow for easy integration into any lighting rig. Each LED is individually controllable for pixel-mapping animations and graphics.
Features:
- Moving LED strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer
- Angle the light where it’s needed using the built-in motors
- Create eye-catching animations and video effects with individual LED control
- Access dramatic, pre-built automated programs with or without DMX
- Generate complex looks with ease using ShowXpress™ Pixels
- Flexible control options with onboard 3- and 5-pin XLR DMX connectors
- Achieve a wide variety of programming styles with multiple DMX personalities
- Eliminate multicolor shadows with high-power, tri-color LEDs
- Achieve flicker-free video operation with high-frequency LED dimming
- Save time running cables and extension cords by power linking multiple units
- Create large, coordinated light shows with COLORband PiX, COLORband PiX IP, and COLORband PiX Mini fixtures in Master/Slave mode
Specifications:
- DMX Channels: 5, 6, 8, 10, 11, 14, 20, 38 or 42
- DMX Connectors: 3- and 5-pin XLR
- Light Source: 12 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
- PWM Frequency: 1,200 Hz
- Beam Angle: 20°
- Field Angle: 34°
- Illuminance: 2,325 lux @ 2 m
- Power Linking: 8 units @ 120 V; 15 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 113 W, 1 A @ 120 V, 60 Hz
- 117 W, 0.5 A @ 230 V, 50 Hz
- Weight: 10.2 lb (4.7 kg)
- Size: 40.9 x 2.6 x 7.4 in (1,040 x 67 x 188 mm)
- Approvals: CE
- Tilt: 270°
