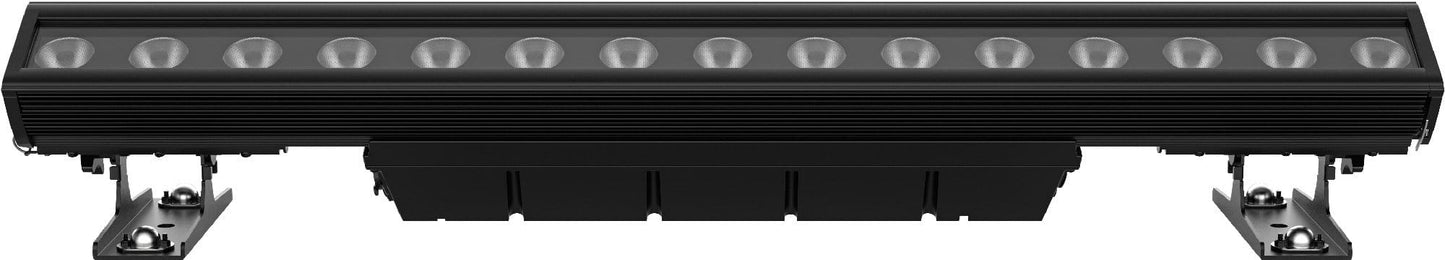

Chauvet COLORado Batten Q15 15x20-Watt RGBW LED Bar

COLORado Batten Q15 is a rugged, tour-ready, quad-color RGBW LED batten with 15 individually controllable LEDs that eliminate the appearance of “skittles” and allow for awesome pixel-mappable looks. The IP65-rated unit features tremendous output with selectable, smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 16° beam angle. An included wall wash filter creates a 16° by 43° beam spread for guaranteed smoothness. Mount it your way by adjustable trunnions with ¼ turn adaptors for the Omega Bracket, innovative end-cap, or back plate mounting for seamless row alignment, icicles, and floor mounting. The unit also includes a stowable glare shield.

Features:

  • Quad-Color RGBW LED Batten for touring, rental, and production, indoors or out
  • All environment operation with IP rated power and DMX connections
  • Unique end-cap and back plate mounting options
  • Color temperature presets, from 1800 K to 8000 K
  • Selectable, smooth dimming curves for programming versatility
  • Built for touring, live event, television, and theatrical productions
  • Large, easy to navigate display with password protection

Optical

  • Light Source: 15LEDs (quad-color RGBW) 20 W, (800 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 1800 to 8000 K
  • Installed Optics: 16°
  • Beam Angle (Horizontal): 15.5°
  • Beam Angle w/Filter (Horizontal): 41.9°
  • Beam Angle (Vertical): 14.7°
  • Beam Angle w/Filter (Vertical): 15.3°
  • Field Angle (Horizontal): 28.6°
  • Field Angle w/Filter (Horizontal): 77.9°
  • Field Angle (Vertical): 28.1°
  • Field Angle w/Filter (Vertical): 32.1°
  • Lumens: 6,324
  • Lumens w/Filter: 5,547
  • Illuminance (total): 2399 lux @ 5 m
  • Illuminance w/Filter (total): 653 lux @ 5 m
  • Selectable PWM: 1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 25 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

Construction / Physical

  • Dimensions: 41.22 x 7.28 x 6.55 in (1047 x 185 x 166.4 mm)
  • Weight: 28.8 lb (13 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1 Cell: 4, 6, 8, 10
    15 Cell: 45, 60, 64, 66, 76
  • Modes/Personalities: 9 personalities

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 6 units @ 100 V; 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V; 16 units @ 240 V
  • Power and Current: 194 W, 1.606 A @ 120 V, 60 Hz
  • Power and Current: 197 W, 0.951 A @ 208 V, 60 Hz
  • Power and Current: 197 W, 0.860 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • Colorado Batten Quad X
  • Seetronic powerKON® IP65 power cord
  • 2 Omega Bracket
  • Base Plate
  • 2 Retaining Pins
  • 2 Safety Cable
  • Glare Shield
  • Filter

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik TRUE1 power linking cables
  • 5-pin IP DMX Cables
