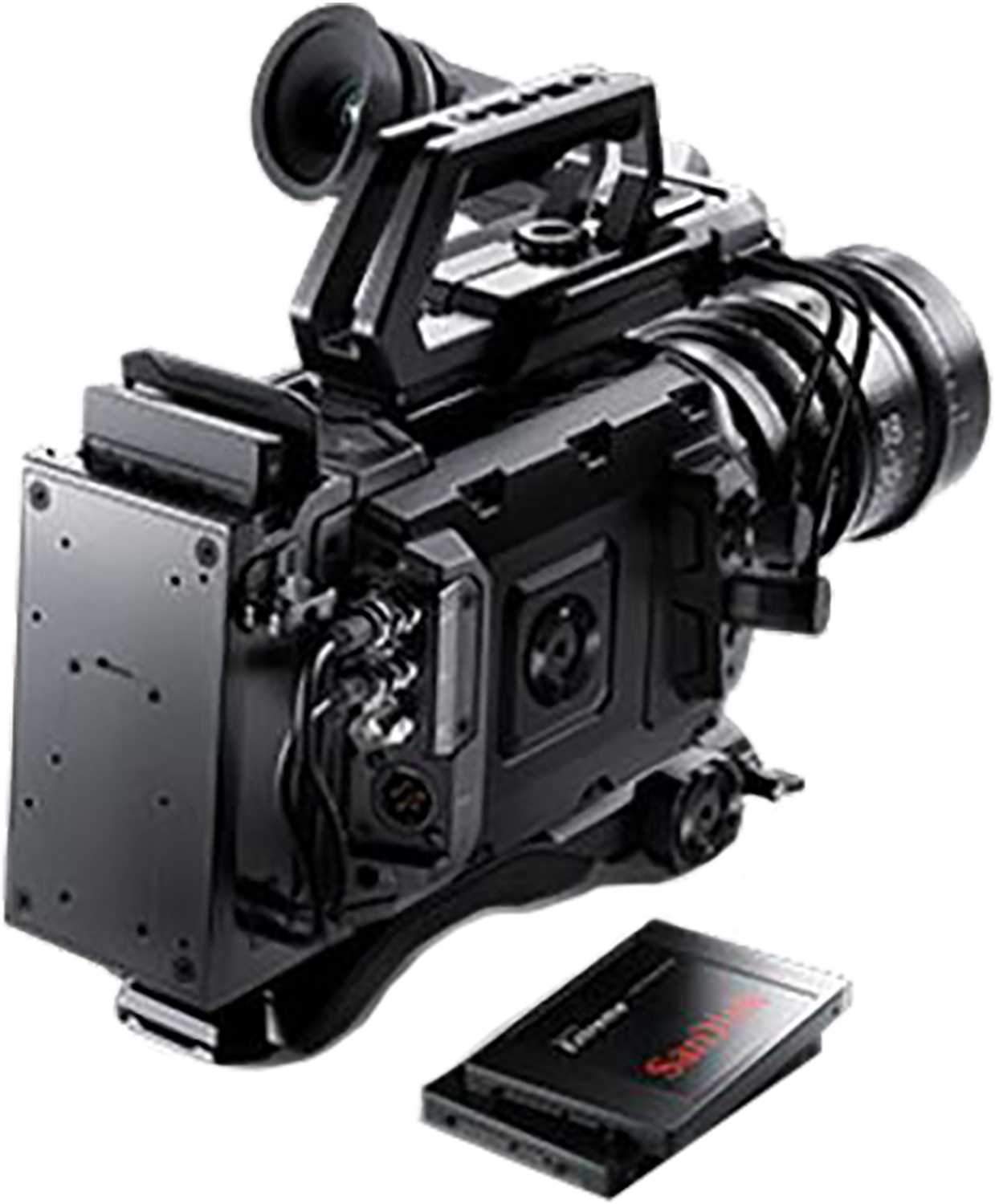

Blackmagic Design URSA Mini SSD Recorder

Blackmagic URSA Mini SSD Recorder lets you record Blackmagic RAW or ProRes files onto standard 2.5" SSD Media with your URSA Mini Pro camera! That means you can use commonly available and inexpensive high capacity solid state media! The SSD media can record full resolution 4K and 4.6K 12?bit RAW files. Plus, SSD media comes in much larger sizes so you can record longer without having to change cards!

Specifications:

    Connections

  • SDI Inputs 1x BNC for Data Link with URSA Mini Pro.
  • SDI Outputs 1x BNC for Data Link with URSA Mini Pro.
  • Computer Interface USB Type-C for software updates.
  • Media

  • Media 1 x 2.5 inch SSD for HD, Ultra HD and 4.6K
  • Supported Codecs

  • Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5, ProRes 444 XQ, ProRes 444, ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy.
  • Operating Systems

  • Mac 10.13 High Sierra, Mac 10.14 Mojave or later.
  • Windows 8.1 or Windows 10.
  • Power Requirements

  • Power Connection 12-pin molex connector with passthrough to battery plate.
  • EMC Certifications

  • FCC, CE and KCC.
  • Environmental Specifications

  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative humidity: 0% to 90% non-condensing
  • What's Included

  • Blackmagic URSA Mini SSD Recorder
  • URSA Mini SSD Recorder Mount Plate with mounting screws
  • Warranty

  • 12 Month Limited Manufacturer's Warranty.
