Description

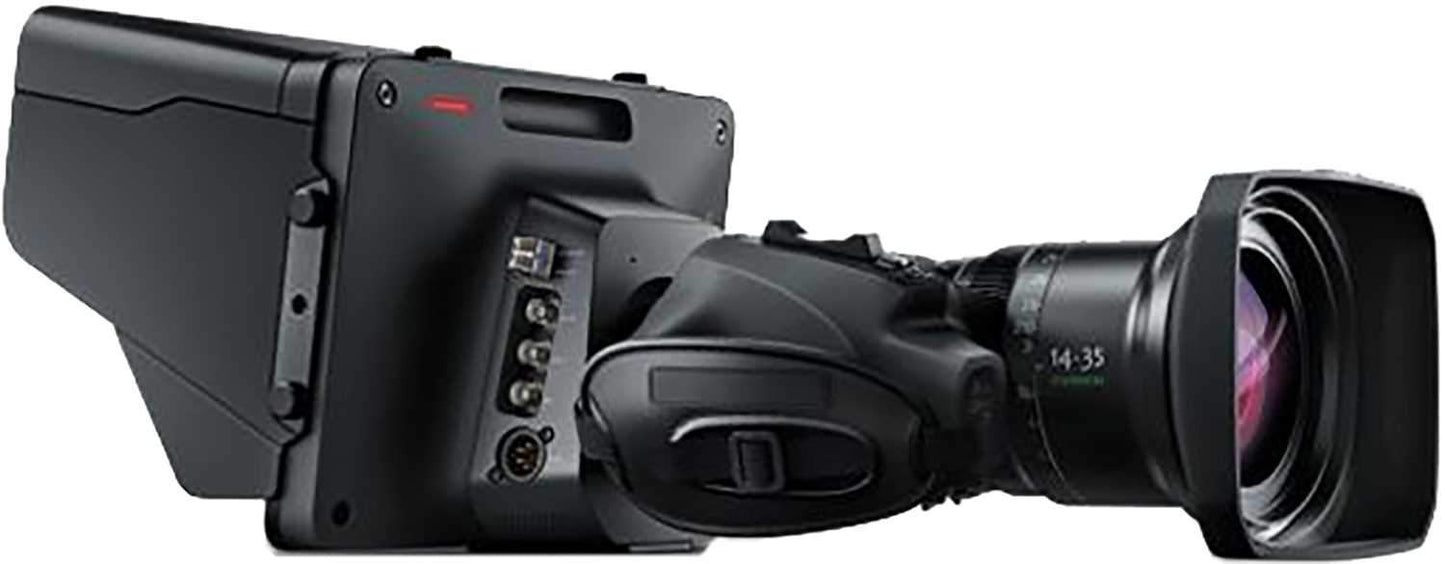

Blackmagic Design Studio Camera 2

The Blackmagic Studio Camera is the world’s most advanced broadcast camera for live production! You get a massive 10 inch viewfinder, MFT lens mount, talkback, tally indicators, phantom powered microphone connections, 3G-SDI and user upgradeable optical fiber connections that let you connect to your switcher with a single cable! Its incredibly tough, lightweight magnesium alloy body is packed with all the built in features you need for multi camera production and broadcast.

Specifications:

    Camera Features

  • Effective Sensor Size: 12.48mm x 7.02mm
  • Focus: Auto focus. Peaking mode.
  • Lens Mount: Active MFT Mount
  • Lens Control: Iris, focus, zoom on supported lenses.
  • Dynamic Range: 13 Stops.
  • Screen Dimensions: 10.1 inch 1920 x 1200
  • Screen Type: 10.1 inch TFT-LCD
  • Controls: Push button controls for navigating menus.
  • Mounting Options: 2 x 3/8 inch tripod mount. 4 x 1/4 inch 20 UNC thread mounting points on top of camera, 3 x 1/4 inch 20 UNC thread mounting points left on right of camera
  • Connections

  • Total Video Inputs: 1 x SDI
  • Total Video Outputs: 1 x SDI
  • SDI Rates: 1.5G, 3G.
  • Optical SDI: Supports optional SMPTE optical module.
  • Optical Fiber Inputs/Outputs: 3G Optical Fiber Input and Output.
  • Optical fiber SFP module sold separately.
  • Analog Audio Inputs: 2 x XLR analog switchable between mic and line levels. Phantom power support.
  • Analog Audio Outputs: Aviation headphone (Fixed Wing Plugs) output for talkback and audio monitoring.
  • Reference Inputs: Tri-Sync or Black Burst.
  • SDI Audio Outputs: 2 channels in 3G-SDI 48Khz and 24 bit. 2 channels for talkback on channel 15 - 16.
  • Remote Control: 1 x 2.5mm LANC for Iris Control and Focus. SDI CCU control from ATEM.
  • Computer Interface: USB 2.0 Mini-B port for software updates.
  • Audio

  • Microphone: Integrated stereo microphone.
  • Built in Speaker: None.
  • Standards

  • SD Video Standards: None.
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, and 1080i60
  • Ultra HD Video Standards: None.
  • SDI Compliance: SMPTE 292M. SMPTE 424M Level B
  • SDI Audio Sampling: 48 kHz and 24-bit
  • Media

  • Media: None.
  • Media Format: None.
  • Supported Codecs

  • Codecs: None.
  • Control

  • External Control: Blackmagic SDI Control Protocol. 2.5mm LANC connection for lens control.
  • Color Corrector

  • DaVinci YRGB
  • Talkback and Tally

  • Live Tally Indicator: 1 x for talent, 1 x for operator.
  • Talkback: SDI Channels 15 and 16.
  • Software

  • Software Included: Blackmagic Camera Setup for Mac and Windows.
  • Operating Systems

  • Mac 10.11 El Capitan,
    Mac 10.12 Sierra or later.
  • Windows 8.1 or Windows 10.
  • Power Requirements

  • 1 x External 12V power supply
  • Optional Accessories

  • SMPTE compatible SFP Optical Module
  • Blackmagic Studio Camera
  • Environmental Specifications

  • Operating Temperature: 0° to 40° C (32° to 104° F)
  • Storage Temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
  • What's Included

  • Blackmagic Studio Camera
  • Sun Shield and attaching screws
  • Turret Dust Cap
  • 12V AC Adapter
  • SD card with software and manual
  • Warranty

  • 12 Month Limited Manufacturer's Warranty.
