Name: Blackmagic Design Smart Videohub 12G 40x40
Brand: Blackmagic Design
SKU: VHUBSMARTE12G4040

Description

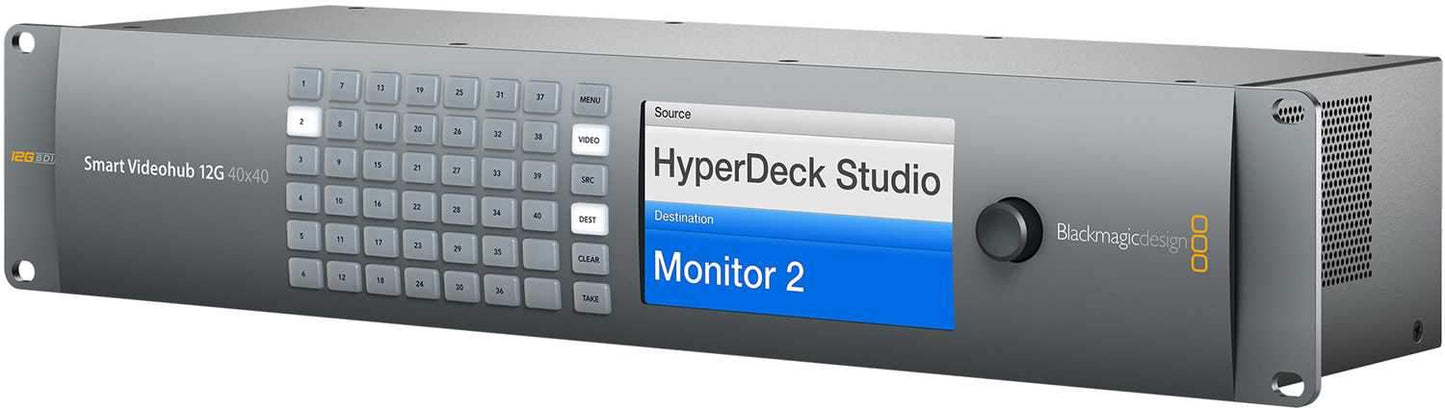

Blackmagic Design Smart Videohub 12G 40x40

Advanced 12G-SDI video router supports any SD, HD or Ultra HD SDI format on the same router at the same time. Smart Videohub 12G 40x40 features 40 inputs and 40 outputs and includes video reference, redundant power connections and an elegant machined metal front panel with large full HD LCD for monitoring and routing label display. Routing can be performed by direct button selection and the spin knob controller. 12G-SDI technology supports all SDI video standards up to 2160p60.

Specifications:

Connections

SDI Video Inputs: 40 x 10-bit SD-SDI, HD-SDI and 12G?SDI.
SDI Video Outputs: 40 x 10-bit SD-SDI, HD-SDI and 12G?SDI.
SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
Video Input Re-Sync: None.
SDI Reclocking: On all SDI outputs.
Reference Inputs: Tri-Sync or Black Burst.
Reference Outputs: Reference terminating loop output.
Control Panel Connection: Ethernet.
Serial Control Connection: DB-9 RS-422.
Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
Updates: USB
Front Panel Router Control: 40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. RS-422.
Router Configuration: Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control: 1 x input for controlling router crosspoint switching.

Standards

SD Video Standards: 525i59.94 NTSC, 625i50PAL
HD Video Standards:
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU?R BT.601
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision: 10-bit 4:2:2 and 4:4:4
SDI Color Space: YUV or RGB
SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 12G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.

Control

Built in Control Panel: 40 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 5 inch color display.
External Control Panel: Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ehternet Videohub Control Protocol.

Software

Software Control: Router control included free for Windows™ and Mac™.
Internal Software Upgrade: Via included updater application

Operating Systems

Mac 10.12 Sierra, Mac 10.13 High Sierra or later.
Windows 8.1 or Windows 10.

Display

Displays: Built in 5 inch LCD for video and menu settings.

Power Requirements

Power Supply: 2 x Internal 90 - 240V AC. IEC power cables required.
Power Fail Protection: Crosspoint connections preserved and restored instantly at power on.
