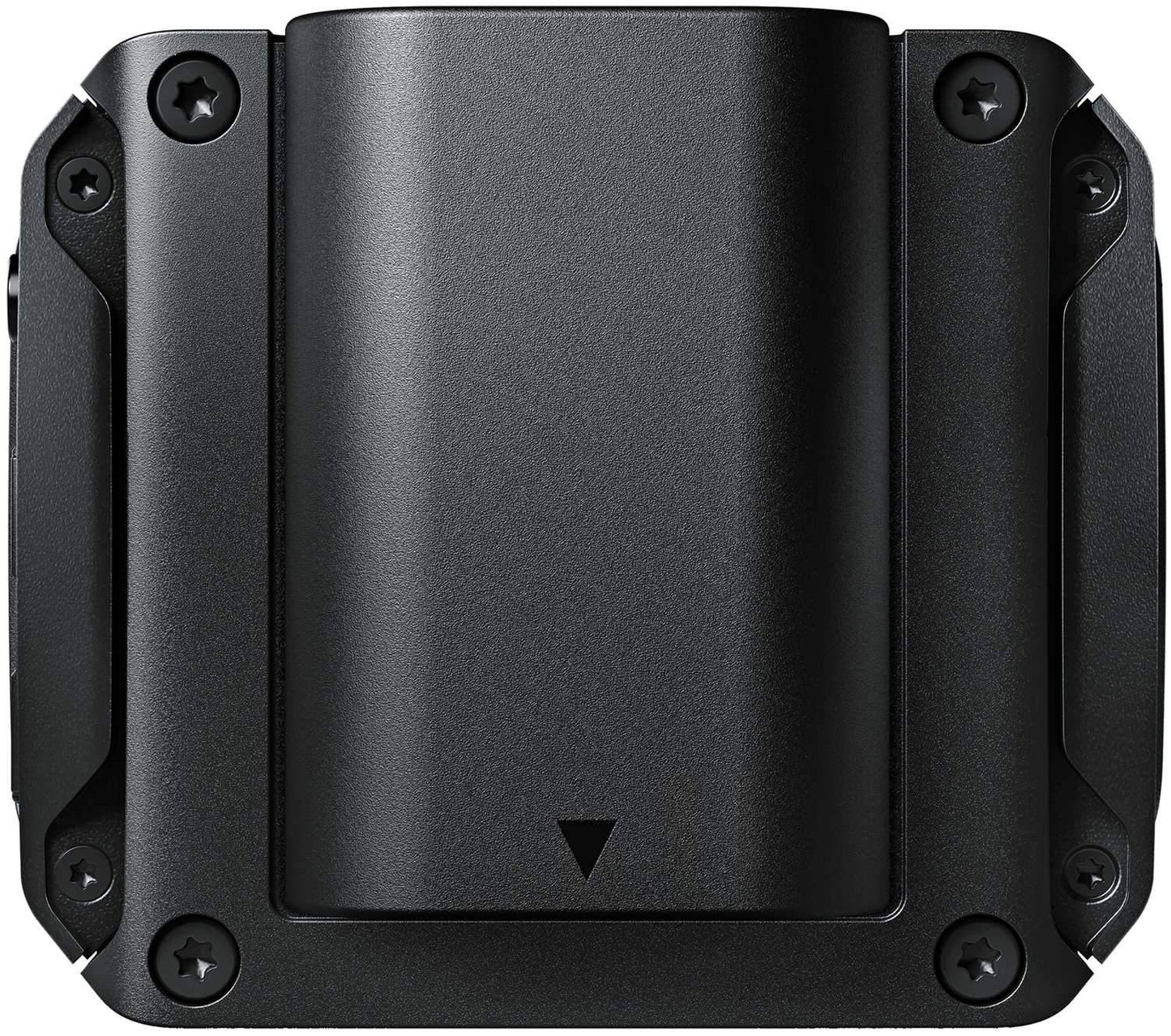

Blackmagic Design Micro Cinema Camera
The world’s smallest digital film camera with Super 16mm sensor and 13 stops of dynamic range that is designed to be operated remotely! Features a revolutionary expansion port with PWM and S.Bus inputs so you can use a model airplane remote control to operate the camera wirelessly. Includes a built in SD card recorder for capturing up to 1080HD in CinemaDNG RAW or ProRes, MFT lens mount and operates up to 60 fps.
Specifications:
Camera Features
- Effective Sensor Size: 12.48mm x 7.02mm (Super 16)
- Lens Mount: Active MFT mount.
- Lens Control: Iris, focus and zoom on supported lenses.
- Dynamic Range: 13 stops.
- Shooting Resolutions: 1920 x 1080
- Frame Rates: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Focus: Remote focus control via expansion connector when using compatible lenses.
- Iris Control: Iris control via Rewind and Forward buttons, plus remote control via expansion connector when using compatible lenses.
- Controls: 6 control buttons including Record, Play, Rewind, Forward, Menu, and Power. 4 channel PWM plus 1 x S.Bus remote via expansion connector.
- Mounting Options: 1 x 1/4 inch (top), 3 x 1/4 inch (bottom).
Connections
- Total Video Inputs: None
- Total Video Outputs: 1 x HDMI Type A, 1 x Composite Video output.
- Analog Audio Inputs: 1 x 3.5mm stereo jack, mic or line level. Can also be used for timecode input.
- Analog Audio Outputs: 1 x 3.5mm stereo headphone jack
- Reference Input: Tri-Sync or Black Burst on expansion connector.
- Expansion Port: DB-HD15 serial connector provides support for:
- Power input
- LANC input
- 1 x S.Bus input
- 4 x PWM channel input
- Reference input
- Composite video output
- Remote Control: Lens control, recording parameters and record trigger start/stop trigger via LANC and PWM or S.Bus remote channels
- Computer Interface: USB 2.0 Mini-B port for software updates.
Audio
- Microphone: Integrated stereo microphone.
Standards
- SD Video Standards: None
- HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Codecs
- CinemaDNG RAW, CinemaDNG RAW 3:1, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes Proxy QuickTime.
Media
- Media: SDXC and SDHC cards.
- Media Format: Media Format can format cards to HFS+ for Mac or exFAT for Windows.
Control
- External Control: Expansion connector has LANC, S.Bus and PWM for lens and other settings control.
Storage Features
- Storage Type: Removable SDXC and SDHC cards.
- Storage Format: Mac OS Extended or exFAT format. SD cards can be formatted in camera, or on any Mac or Windows computer. Formatting in camera recommended.
- Storage Rates:
- 1920 x 1080
- CinemaDNG RAW - 65 MB/s
- CinemaDNG RAW 3:1 - 33 MB/s
- Apple ProRes 422 HQ - 27.5 MB/s
- Apple ProRes 422 - 18.4 MB/s
- Apple ProRes 422 LT - 12.75 MB/s
- Apple ProRes Proxy - 5.6 MB/s
- Rates based on 30 frames per second.
- Recording Formats:
- Lossless CinemaDNG RAW, RAW 3:1 at 1920 x 1080 with film dynamic range.
- Apple ProRes 422 HQ, 422, 422 LT and 422 Proxy at 1920 x 1080 with either film or video dynamic range.
Software
- Software Included: DaVinci Resolve grading software. SD card for Mac and Windows.
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.
- Windows 8.1 or Windows 10.
Power Requirements
- Battery Type: Canon LP-E6
- Battery Life: Approximately 1 hour 30 minutes
- Power: 12V-20V
Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
What's Included
- Blackmagic Micro Cinema Camera
- Expansion cable
- LP-E6 battery
- Turret dust cap
- 12V AC Adapter
- SD card with software and manual
Warranty
- 12 Month Limited Manufacturer's Warranty
