Description

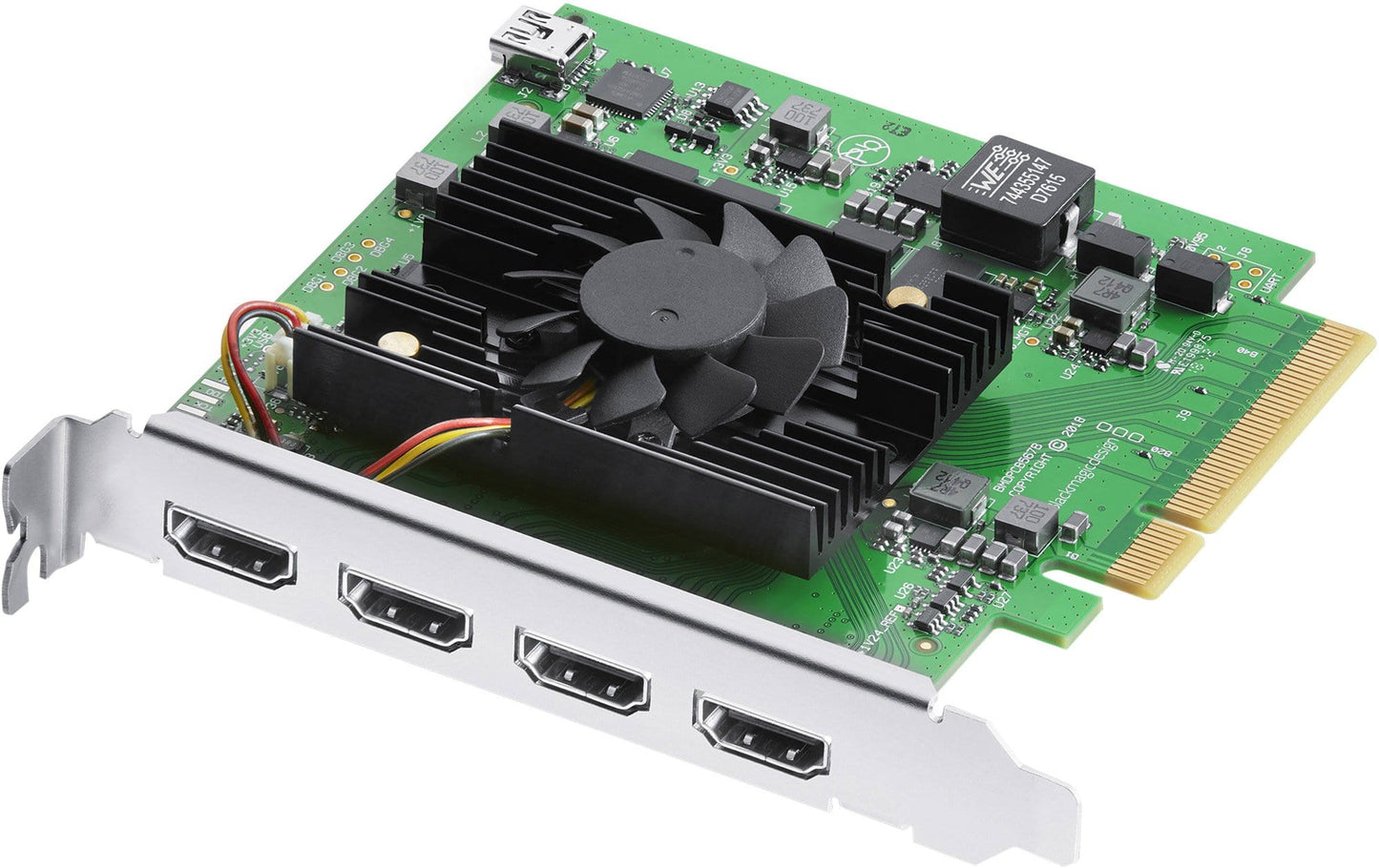

Blackmagic DeckLink Quad HDMI Recorder

DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K, and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!

Specifications:

  • Connections:
    • HDMI 2.0b Video Inputs: 4
    • HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K.
    • Computer Interface: PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
  • Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2.
  • Software:
    • Software Included: Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility, and Blackmagic driver on Linux.
    • Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
    • Physical Installation: PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
  • Software Applications:
    • Wirecast
    • vMix
    • OBS
    • Other supported applications include: Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & (REC)Marker, Zoom.
  • Video Standards:
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards:
      • 720p50, 720p59.94, 720p60
      • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • 1080i50, 1080i59.94, 1080i60
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
    • Digital Video Interface (DVI) Standards: 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60
    • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
    • HDMI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 and 4:2:0 in all modes. 8‑bit RGB 4:4:4 in all DVI modes.
    • Color Space: REC 601, REC 709, REC 2020
    • HDMI Video Sampling: 4:4:4, 4:2:2 and 4:2:0
    • HDMI Configuration: HDMI 2.0b supports Deep Color and HDR.
    • Multiple Rate Support: HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI, and DVI modes.
    • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
  • Operating Systems:
    • Mac 11.1 Big Sur, Mac 12.0 Monterey or later.
    • Windows 8.1, 10, and 11, all 64-bit.
    • Linux
  • Power Requirements:
    • Power Consumption: 23 W
  • Environmental Specifications:
    • Operating temperature: 5° to 40° C (41° to 104° F)
    • Storage temperature: -20° to 45° C (-4° to 113° F)
    • Relative Humidity: 0% to 90% non-condensing
