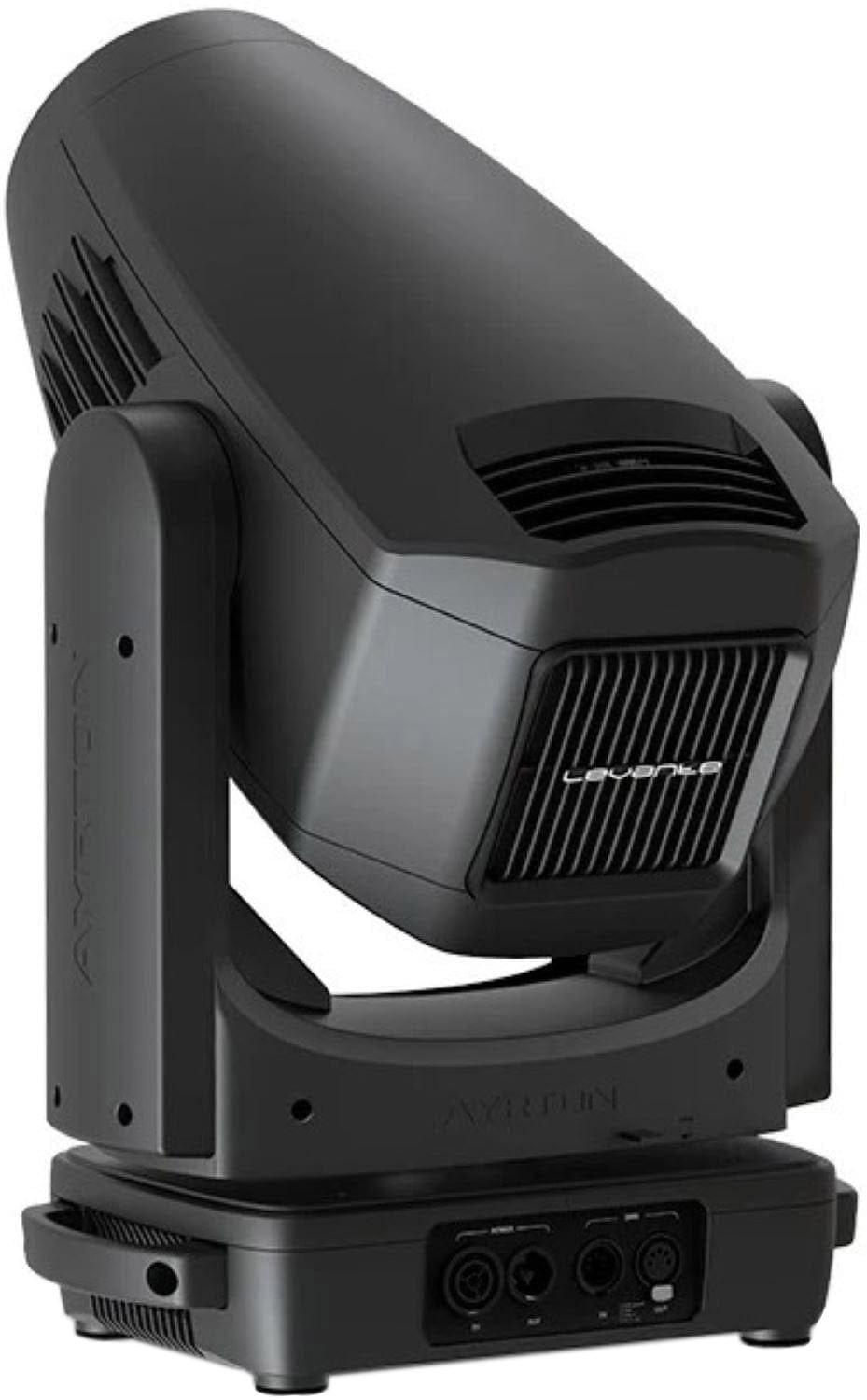

Ayrton Levante-S AY010240 300 Watt 7000K 20,000 Lumens LED Wash Moving Head - 7 to 58 Degree
Ayrton now introduces Levante™, a dramatically miniaturized version of the Bora wash light, and using the same radical concept, has endowed it with outstanding performance capabilities in the confines of an ultra-compact format. Levante is a marvel of technology that will attract the most demanding lighting designers. The “S” version, weighing only 22 kg, can deliver light output greater than 20,000 lumens while consuming only 300 W. Fitted with a spherical frontal 138 mm lens, the proprietary optical system, using 13 lenses and developed specifically for wash-type applications, features a zoom ratio of over a 8:1 and an impressive zoom range from 6.9° to 57°. The optics produce an extremely uniform flat beam with no hot spot, ensuring a perfect colour mix regardless of the colour combination selected. Ayrton has created a wash luminaire that can actually sculpture light and added a high-transmission diffusion filter to the zoom lens group to erase the edge of the beam without changing its angle. A variable linear frost system was developed to let the user adjust the desired diffusion level with precision. A new barndoors module allows the four shutter blades to be freely positioned on 100% of the surface area so that any object can be framed regardless of the luminaire’s position.
The S version can produce ultra high output, generating metallic white light calibrated at 7000 K and is specially designed for stage applications.
Features:
- 300 W - 7000 K
- Lumens 20,000
- Beam Aperture 6.9° to 57°
- Front Lens 138 mm
Specifications
- Optics:
- 13-element 8:1 zoom high-resolution optic system
- Beam aperture: 6.9° to 57°
- High-speed motorized linear zoom
- Tempered anti-reflective coated lenses
- 138 mm frontal lens for greater performance
- Light Source:
- 26,500 lumens 8000 K white light engine
- Total luminaire output: up to 20,000 lumens
- Color temperature output: 7000 K
- CRI: greater than 70
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
- Movement:
- Highly accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
- Pan and tilt with automatic repositioning
- Moving-head range: 540° (pan), 263° (tilt)
- Colors:
- Sophisticated color mix system providing CMY color mixing
- Variable CTO color temperature correction
- Fixed color wheel with seven complementary colors
- GOBOS:
- 1 indexable rotating gobo wheel with 7 metallic gobos, plus an open position
- Adjustable-speed rotating gobo in both directions
- Gobo diameter: 25.5 mm
- Image diameter: 19.0 mm
- Barndoors:
- 4 individually positionable shutter blades on a 100% surface area in all positions
- Rotation of the barndoor system module: +/- 45°
- Iris Diaphragm:
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
- Frost:
- 0% to 100% variable linear frost
- Dimmer / Strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation
- White or color strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software Features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware Features:
- Graphic LCD display for addressing and special functions settings, with flip function
- Clicking jog wheel to set functions
- Excess-temperature protection
- Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
- XLR 5 pin male and female connectors for DMX connection
- powerCON TRUE1 male and female connectors for power connection
- Control:
- DMX 512 protocol, through DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- Local control panel, with LCD display
- Choice of 3 DMX modes (from 29 to 50 DMX channels)
- Power Supply:
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60 Hz
- Power: 550 W maximum
- Cooling System:
- Advanced liquid cooling system
- Self-adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes with a new Silent Mode
- Safety protection against temperature excesses
- Housing:
- Moving-head skeleton made of aluminium and steel plates
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Molded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Two-side handles for transportation
- Four heavy-duty feet for better stability
- IP20 protection rating
- Exterior finish: black (Carbon)
- Installation:
- Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
- Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
- Operating Parameters:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
- Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
- Minimum usage distance: 1.5 m (4.92 ft)
- Compliance:
- EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
- US (Safety & EMC):
- UL 1573
- FCC Part 15, Subpart B: 2018
- Size:
- Product: 365 x 632 x 212 mm (l x h x d)
- Flight-case foam: 430 x 660 x 280 mm (l x h x d)
- Weight:
- Product: 22.0 kg
- Optics:
- 13-element 8:1 zoom high-resolution optic system
- Beam aperture: 6.9° to 57°
- High-speed motorized linear zoom
- Tempered anti-reflective coated lenses
- 138 mm frontal lens for greater performance
- Light Source:
- 26,500 lumens 8000 K white light engine
- Total luminaire output: up to 20,000 lumens
- Color temperature output: 7000 K
- CRI: greater than 70
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
- Movement:
- Highly accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
- Pan and tilt with automatic repositioning
- Moving-head range: 540° (pan), 263° (tilt)
- Colors:
- Sophisticated color mix system providing CMY color mixing
- Variable CTO color temperature correction
- Fixed color wheel with seven complementary colors
- GOBOS:
- 1 indexable rotating gobo wheel with 7 metallic gobos, plus an open position
- Adjustable-speed rotating gobo in both directions
- Gobo diameter: 25.5 mm
- Image diameter: 19.0 mm
- Barndoors:
- 4 individually positionable shutter blades on a 100% surface area in all positions
- Rotation of the barndoor system module: +/- 45°
- Iris Diaphragm:
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
- Frost:
- 0% to 100% variable linear frost
- Dimmer / Strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation
- White or color strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software Features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware Features:
- Graphic LCD display for addressing and special functions settings, with flip function
- Clicking jog wheel to set functions
- Excess-temperature protection
- Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
- XLR 5 pin male and female connectors for DMX connection
- powerCON TRUE1 male and female connectors for power connection
- Control:
- DMX 512 protocol, through DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- Local control panel, with LCD display
- Choice of 3 DMX modes (from 29 to 50 DMX channels)
- Power Supply:
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60 Hz
- Power: 550 W maximum
- Cooling System:
- Advanced liquid cooling system
- Self-adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes with a new Silent Mode
- Safety protection against temperature excesses
- Housing:
- Moving-head skeleton made of aluminium and steel plates
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Molded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Two-side handles for transportation
- Four heavy-duty feet for better stability
- IP20 protection rating
- Exterior finish: black (Carbon)
- Installation:
- Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
- Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
- Operating Parameters:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
- Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
- Minimum usage distance: 1.5 m (4.92 ft)
- Compliance:
- EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
- US (Safety & EMC):
- UL 1573
- FCC Part 15, Subpart B: 2018
- EU (EMC & LVD):
- Size:
- Product: 365 x 632 x 212 mm (l x h x d)
- Flight-case foam: 430 x 660 x 280 mm (l x h x d)
- Weight:
- Product: 22.0 kg
