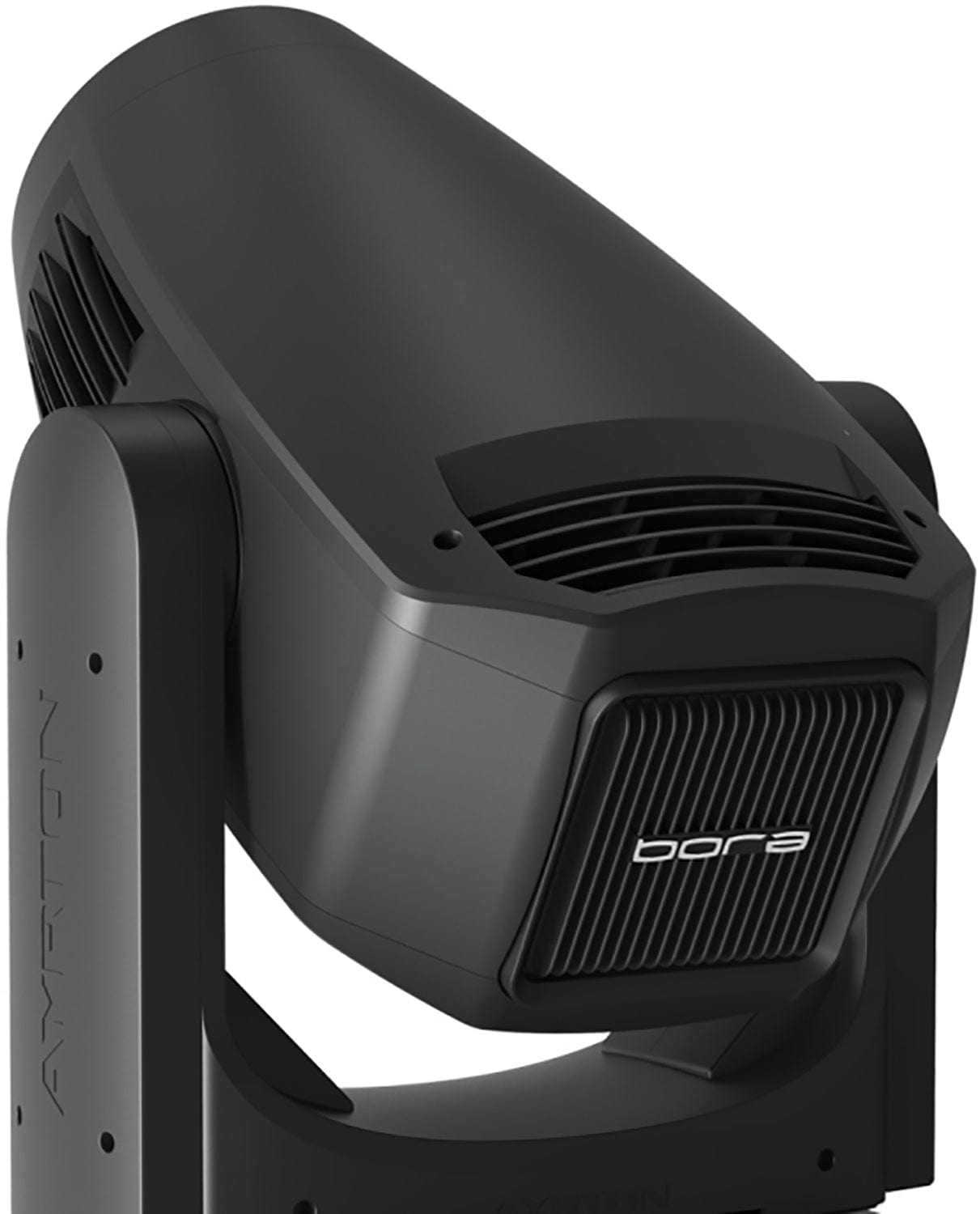

Ayrton Bora-S AY010640 750W 8000K 40000 Lumens LED Beam and Wash Moving Head Light - 8 to 64 Degree

More Ayrton products

Write a review Q&A SKU: BORA-S Solotech ID#: 129344
1 of 2
Available options
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

Ayrton Bora-S AY010640 750 Watt 8000K 40,000 Lumens LED Beam and Wash Moving Head Light - 8 to 64 Degree

Ayrton's Bora is a revolution in wash luminaires, forged with a pioneering spirit to elevate your creative endeavors. With a dedicated mission to craft the perfect ambiance, Bora shines with innovation. Boasting a front-mounted 178 mm spherical lens and a proprietary optical system featuring 13 premium lenses, it's purpose-built for "wash" applications. The 8:1 zoom ratio grants a broad zoom spectrum ranging from 8° to 64°. The optics generate an impeccably even, flat beam with no distracting hotspots, ensuring a seamless blend of colors, irrespective of the palette chosen.

Bora comes in two distinct versions, each tailored to meet the specific needs of lighting professionals. Bora S is geared towards scenic applications and is armed with an 8000 K calibrated LED module, delivering an astonishing 40,000 lumens of powerful metallic white light. On the other hand, Bora TC is meticulously designed for scenarios that demand precise color reproduction, equipped with an entirely new LED module featuring a 6200 K monochromatic light source, a native color rendering index exceeding 90, and exceptional TM30 readings.

Features:

  • 7 Series - Source 750 W - 6800 K Bora-S
  • Lumens 40,000 Bora-S
  • Native CRI greater than 90 Bora-TC
  • Beam Aperture 8° to 64°
  • Front Lens 178 mm

Specifications:

  • Optics:
    • 13-element 8:1 zoom in high-resolution optic system
    • Beam aperture: 8° to 64°
    • Fast motorised linear zoom
    • Tempered anti-reflective coated lenses
    • 178 mm frontal lens for greater performance
  • Light source (Bora-S):
    • 60,000 lumens 8000 K white light engine
    • Total luminaire output: up to 42,000 lumens
    • Colour temperature output: 6800 K
    • CRI: greater than 70
    • Rated life (L70): up to 40,000 hours
    • Flicker free sources management suitable for TV applications and all video-recorded events
  • Movement:
    • Extremely accurate positioning
    • Moving head operated via either 8 or 16 bit resolution
    • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movements
    • Pan and tilt with automatic repositioning
    • Moving-head range: 540° (pan), 270° (tilt)
  • Colours:
    • Sophisticated colour mix system providing CMY colour mixing
    • Variable CTO colour temperature correction
    • 2 fixed colour wheels with six complementary colours each
  • Gobos:
    • Indexable rotating gobo wheel with 6 gobos plus open position
    • Adjustable-speed rotating gobo in both directions
    • Gobo diameter: 34.0 mm
    • Image diameter: 25.0 mm
  • Barndoors:
    • 4 individually positionable shutter blades on a 100% surface area in all positions
    • Rotation of the framing system module: +/- 45°
  • Iris Diaphragm:
    • Fast iris diaphragm with adjustable dynamic effects
    • Iris range: 15% to 100% open
  • Frost: 0% to 100% variable linear frost
  • Effect: Sparkle effect: dynamic animation effect with speed and fade adjustment
  • Dimmer / Strobe:
    • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
    • Strobe effect, with speed adjustment from 1 to 25 flashes per second
  • Software features:
    • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
    • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
    • Information menu including hour counter, temperature, software version
  • Hardware features:
    • Graphic LCD display for addressing and special functions settings, with flip function
    • Clicking jog wheel to set functions
    • Excess temperature protection
    • Integrated LumenRadio wireless CRMX TiMo RDM receiver
    • XLR 5 pin male and female connectors for DMX connection
    • etherCON RJ45 IN / OUT connectors for ArtNet connection
    • powerCON TRUE1 male connector for power connection
  • Control:
    • DMX 512 protocol, through DMX cable or wireless system
    • DMX-RDM compatible
    • Stand-alone mode and Master/Slave modes
    • ArtNet & sACN protocol through Ethernet cable
    • Local control panel, with LCD display
    • Choice of 3 DMX modes (from 30 to 52 DMX channels)
  • Power supply:
    • Electronic supply with active PFC
    • 120 to 240 Volts 50/60 Hz
    • Power: 1,150 W maximum
  • Cooling system:
    • Advanced liquid cooling system
    • Self-adjusting variable speed fans for quiet operation (Auto mode)
    • Selectable ventilation users modes with a new Silent Mode
    • Safety protection against temperatures excesses
  • Housing:
    • Moving-head skeleton made of aluminium and steel metal plates
    • Base in die-cast aluminium
    • Heatsinks in aluminium and copper
    • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
    • Two-side handles for transportation
    • Four heavy-duty feet for better stability
    • IP20 protection rating
    • Exterior finish: black (Carbon)
  • Installation:
    • Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
    • Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
    • Safety-cable attachment point
  • Operating parameters:
    • Operating positions: all (device on floor or fixed to a support)
    • Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
    • Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
    • Minimum usage distance: 2.0 m (6.56 ft)
