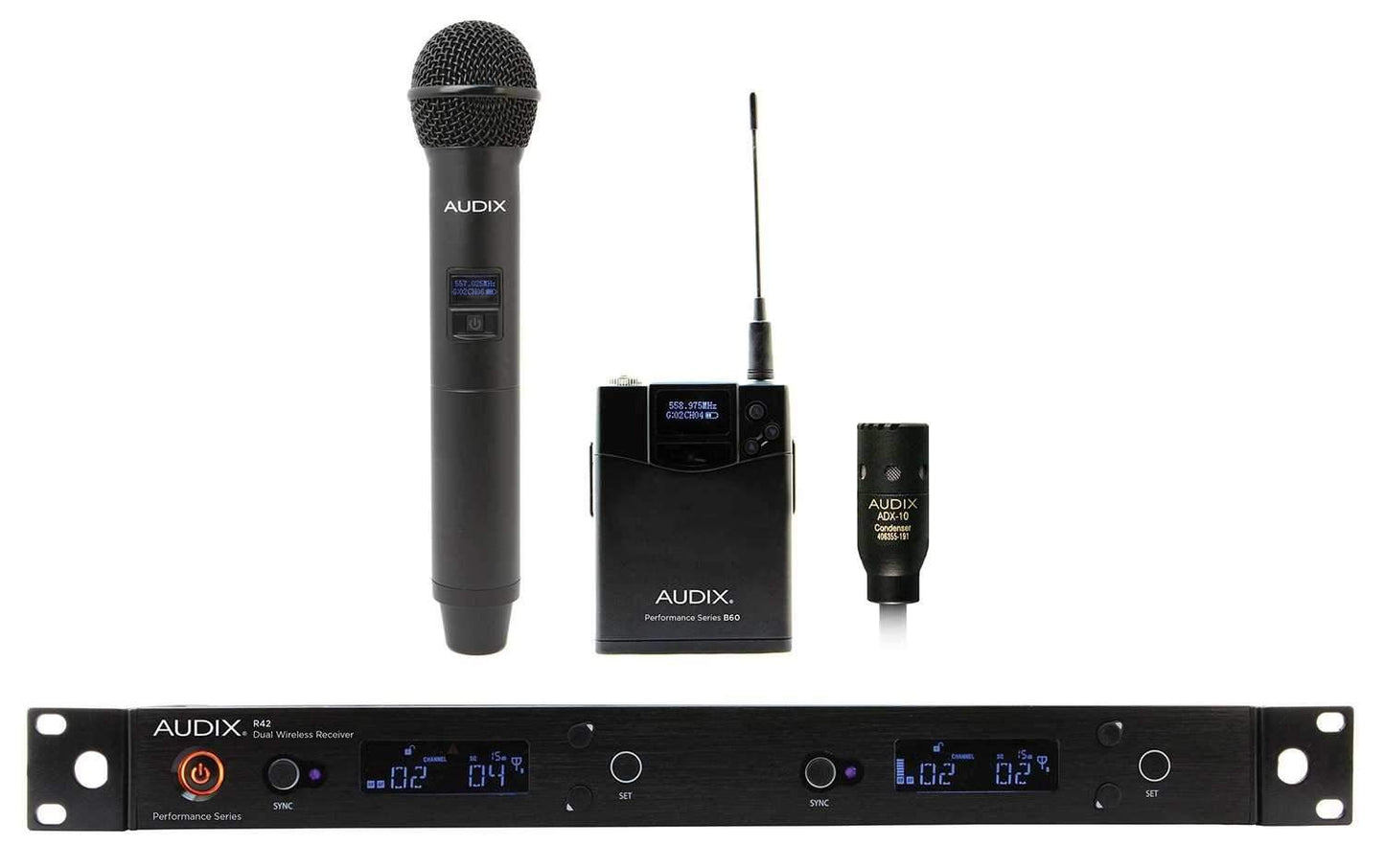

Audix AP42 C210 - Dual Channel Combo Wireless Microphone System
A dual channel system that combines the OM2 handheld transmitter with the ADX10 cardioid lavalier system. This is a very efficient and cost effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.
With the R42 Kit a variety of combination packs can be tailored to a specific application depending on what type of transmitter and mics are needed. Included with the 2-channel diversity receiver are antennas, power supply, rack mount, and BNC cables for front mounting antennas.
The Performance Series B60 Bodypack Transmitter boasts contemporary and comfortable design. Rugged construction and ease of use make the B60 ideal for all users and applications. There is a convenient soft mute switch at the top of the housing which serves as an on-off switch when needed. The B60 bodypack features a high contrast LCD display with group, channel, and battery indicator. It is designed for use with all Audix lavalier, headworn, and instrument mics, and is also excellent for guitar and bass.
The OM2, Audix's best-selling vocal microphone, has a slight bass proximity, a tailored mid-range and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.
The ADX10 is a miniaturized condenser microphone designed for lavaliere applications such as speech, presentation and theatrical production. The ADX10 has the ability to accurately capture and reproduce vocals from a comfortable distance of 4"- 8". This mic is clear, resistant to feedback and easy to use. Designed with a uniformly controlled cardioid polar pattern, the ADX10 helps to isolate the area or section being miked from other vocals or instruments on stage. The ADX10 has a smooth, accurate frequency range of 50 Hz - 18 kHz. The ADX10, primarily for use with Audix wireless systems, includes a tie-clip, and a 3’ attached cable terminating to a mini-XLRf connector.
R42 2-Channel Diversity Receiver Features & Specifications:
- Wide spectrum tuning receiver
- 106 pre-coordinated frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam
- Frequency Range: (A) 522 MHz - 554 MHz, (B) 554 MHz - 586 MHz
- Bandwidth: 32 MHz
- Compatible systems: 8 compatible system operation
- Switchable frequencies: 106 preset frequencies
- Frequency response: 45 Hz - 18 kHz
- Receiving system: single tuner, diversity
- Signal-to-noise ratio: 105 dB at 30 kHz deviation (A-weighted)
- Output connectors: 1/4", XLR
- Range: 300' (91 M)
- Dimensions: 406mm x 209mm x 44mm (W x D x H)
- Net Weight:4.4 lbs. / 2.0 kg
- Frequency Bandwidth: 64 MHz
- Durable metal housing
- Batteries: 2 x AA
- Current consumption: 110 mA typical
- Battery life: 10 hours
- Input connector: 3 pin mini-XLR
- Input impedance: 10kohm
- Small, lightweight, low profile
- Natural, accurate sound reproduction
- Field replaceable capsule
- Transducer type: pre-polarized condenser
- Frequency response: 50 Hz - 18 kHz
- Polar pattern: cardioid
- Output impedance: 800 ohms
- Sensitivity: 5 mV / Pa @ 1k
- Equivalent noise level <29 dB (A-weighted)
- Signal to noise ratio: >65 dB
- Maximum SPL: =120 dB
- Power requirements: 9-52 V phantom
- Connector shielded: 3’ terminating to a mini 3-pin female XLR connector
- Materials & finish: machined brass with black finish
- Weight: 0.74 oz / 21 g
- Length: .98" / 25mm
- Wide spectrum transmitter with OM2 dynamic capsule
- Frequency bandwidth: 64 MHz
- Durable metal housing
- Batteries: 2x AA
- Battery life: 10 hours
- Current consumption: 110 mA typical
- R42 32MHz 2-Channel Diversity Receiver
- H60 Handheld Transmitter with OM2 Capsule Module
- B60 Bodypack Transmitter with ADX10 Lavalier Mic
- (2) Antennas
- Audio Cable
- Clip
- Pouch
- Rackmount Hardware
- BNC Coax Cables
- (4) AA Batteries
- Power Supply
- User Guide
