Audio Technica Subminiature Condenser Lavalier Mic

With a capsule diameter not much bigger than the head of a pin, Audio-Technica’s smallest-ever lavalier microphone virtually disappears in props or clothing to create highest-quality audio for broadcast and theater sound reinforcement.

The BP896 MicroPoint™ omnidirectional lavalier delivers extremely intelligible natural audio and handles high sound pressure levels with ease. Its subminiature omni element is enclosed in a durable housing designed to minimize noise from handling, clothing and wind. Flip a switch to eliminate low-frequency hum without affecting intelligibility.

Offered in wired & wireless models, the BP896 comes generously equipped with an extensive accessory kit—mic holders, windscreens, element covers & more.

Features:

• Inconspicuous, lightweight capsule
• Extremely intelligible natural audio
• Handles high sound pressure levels with ease
• Rugged built for long-lasting performance
• High-pass UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Requires 11V to 52V DC phantom power
• Includes generous accessory kit & protective case
• RoHS compliant—free from all substances specified in the EU directive on hazardous substances
• BP896 – includes AT8539 power module. Available in black and beige, wired and wireless models:
  • BP896-TH – same as BP896, but in "theater" color (beige)
  • BP896c – less power module; 1.4 m (55") cable, unterminated
  • BP896c-TH – same as BP896c, but in "theater" color (beige)
  • BP896cW – less power module; 1.4 m (55") cable terminated with locking 4-pin connector for A-T UniPak® wireless systems
  • BP896cW-TH – same as BP896cW, but in "theater" color (beige)
  • BP896cL4 – less power module; 1.4 m (55") cable terminated for Sennheiser wireless systems using Lemo connector
  • BP896cL4-TH – same as BP896cL4, but in "theater" color (beige)
  • BP896cLM3 – less power module; 1.4 m (55") cable terminated for Sennheiser wireless systems using locking 3.5 mm connector
  • BP896cLM3-TH – same as BP896cLM3, but in "theater" color (beige)
  • BP896cT4 – less power module; 1.4 m (55") cable terminated with TA4F-type connector for Shure wireless systems
  • BP896cT4-TH – same as BP896cT4, but in "theater" color (beige)
  • BP896cT5 – less power module; 1.4 m (55") cable terminated with TA5F-type connector for Lectrosonics wireless systems
  • BP896cT5-TH – same as BP896cT5, but in "theater" color (beige)

Specifications:

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 18 dB/octave (wired only)
• Open Circuit Sensitivity: –49 dB (3.5 mV) re 1V at 1 Pa
• Impedance: 250 ohms (wired only)
• Maximum Input Sound Level: 135 dB SPL, 1 kHz at 3% T.H.D.
• Dynamic Range (typical): 104 dB, 1 kHz at Max SPL (wired only)
• Signal-To-Noise Ratio: 63 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical (wired only)
• Switch: Flat, roll-off (wired only)
• Current Consumption: 0.1 mA typical at 5V (wireless only)
• Voltage Range: 2.5-11V (wireless only)
• Weight (Microphone): 0.14 g (0.005 oz)
• Weight (Power Module): 85 g (3.0 oz) (wired only)
• Dimensions (Microphone):
  • 10.8 mm (0.43") long,
  • 2.6 mm (0.10") diameter
• Dimensions (Power Module):
  • 97.6 mm (3.84") long,
  • 18.9 mm (0.74") diameter (wired only)
• Output Connector (Power Module): Integral 3-pin XLRM-type
• Cable: 1.4 m (55") long (permanently attachedto microphone), 1.6 mm (0.06") diameter, 2-conductor shielded cable with locking 4-pin connector (wired only)

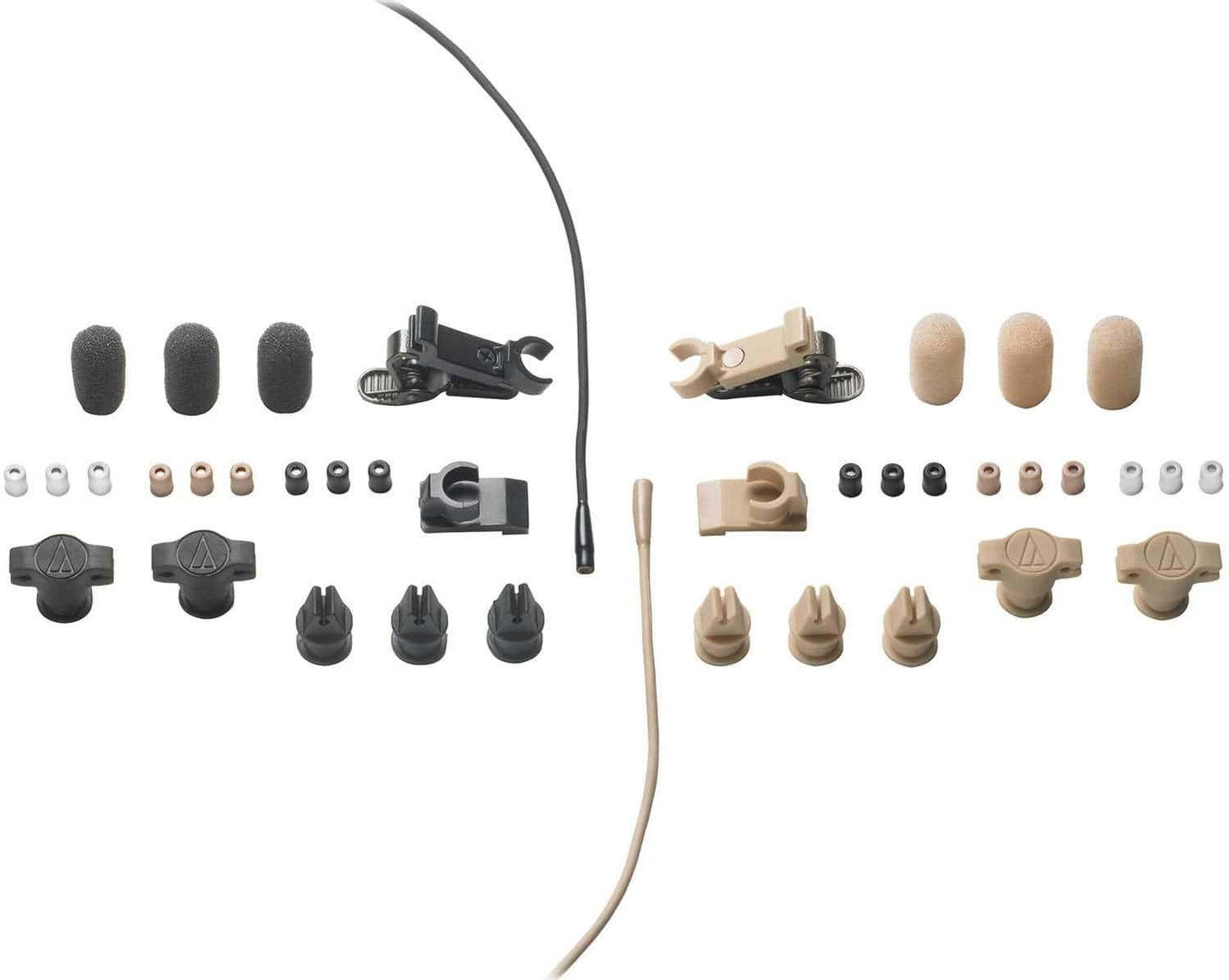

• Accessories Furnished: BP896: AT8539 power module (wired only); two AT8157 windscreens; six element covers (2 white, 2 beige, 2 black); viper clip base; clothing clip base; 3 black single mic holders; 2 black double mic holders; belt clip (wired only); carrying case
• Audio-Technica Case Style: M39
