Description

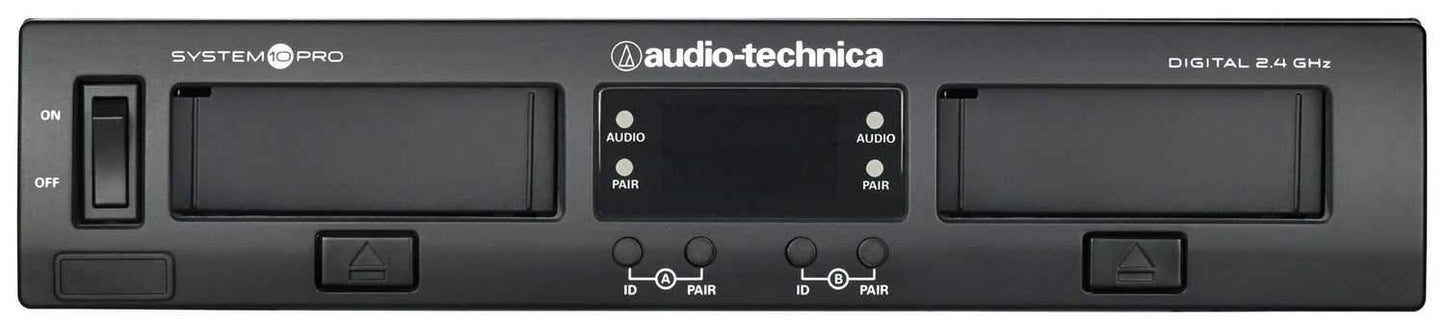

Audio-Technica Receiver Chassis for System 10 Pro

ATW-RC13 receiver chassis with rack-mount adapters and easy-to-read displays for the Audio-Technica's System 10 Pro.

The System 10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 wireless system but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.

Like all the products in the System 10 wireless family, the PRO Rack-Mount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.

Features:
  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4 GHz range - completely free from TV interference
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and setup
  • Three levels of diversity assurance: frequency, time and space
  • Ground-lift switch helps eliminate audible hum caused by ground loops
Overall System Specifications:
  • Operating Frequencies: 2.4 GHz ISM band
  • Dynamic Range: >109 dB (A-weighted), typical
  • Total Harmonic Distortion: <0.05% typical
  • Operating Range: 60 m (200') Open range env. with no interfering signals
  • Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
  • Frequency Response: 20 Hz to 20 kHz (Depending on microphone type)
Receiver Specifications:
  • Receiving System: Diversity (frequency/time/space)
  • Output Connectors: Remote Receiver Connector: RJ45, Link Connector: RJ12
  • Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
  • Dimensions: 209.8 mm (8.26") W x 44 mm (1.73") H x 169.3 mm (6.67") D
  • Net Weight: 940 grams (33.2 oz)
  • Accessory Included: Power supply
  • Accessories Included: AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
