Audio-Technica NET 3000 BP With BP893XTH-CH 530-590

3000 Series network-enabled systems offer the same features and configurations as the standard systems along with network monitoring and control via Audio-Technica’s Wireless Manager software. Each network-enabled receiver also comes with an AT8631 joining plate.

ATW-R3210N network-enabled receiver and ATW-T3201 body-pack transmitter with BP893xcH-TH MicroEarset (beige) omnidirectional condenser headworn microphone. Includes element covers, windscreens, clothing clip, and dual-ear adapter kit.

Features:

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; in EE1 (530–590 MHz) also available in DE2 (470–530 MHz).
• Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
• Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops

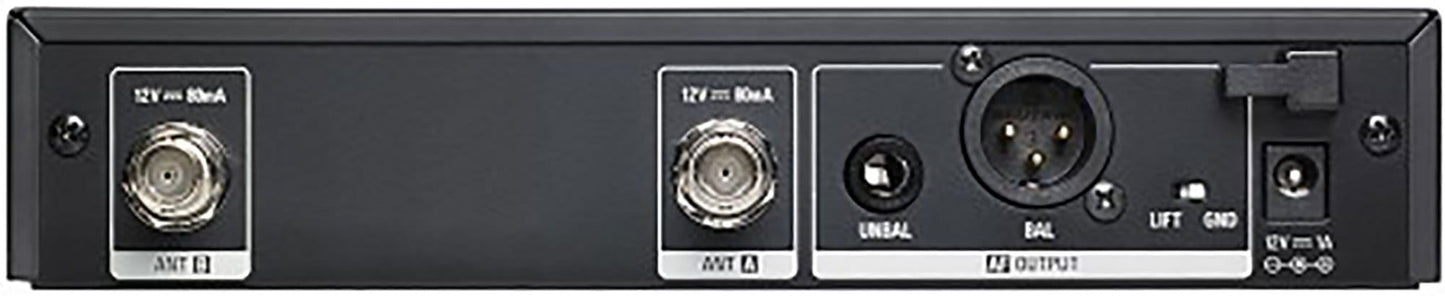

• Balanced and unbalanced audio output jacks

Specifications:

• Operating Frequencies: Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation:
  • ATW-T3201: ±38 kHz (THD:10%)
  • ATW-T3202: ±36 kHz (THD:10%)
• Dynamic Range:
  • ATW-T3201 Mic input: > 115 dB (A-weighted), typical
  • ATW-T3201 Inst input: > 112dB (A-weighted), typical
  • ATW-T3202: > 115 dB (A-weighted), typical
• Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
• Operating Range: 100 m (328')Open range environment with no interfering signals.
• Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
