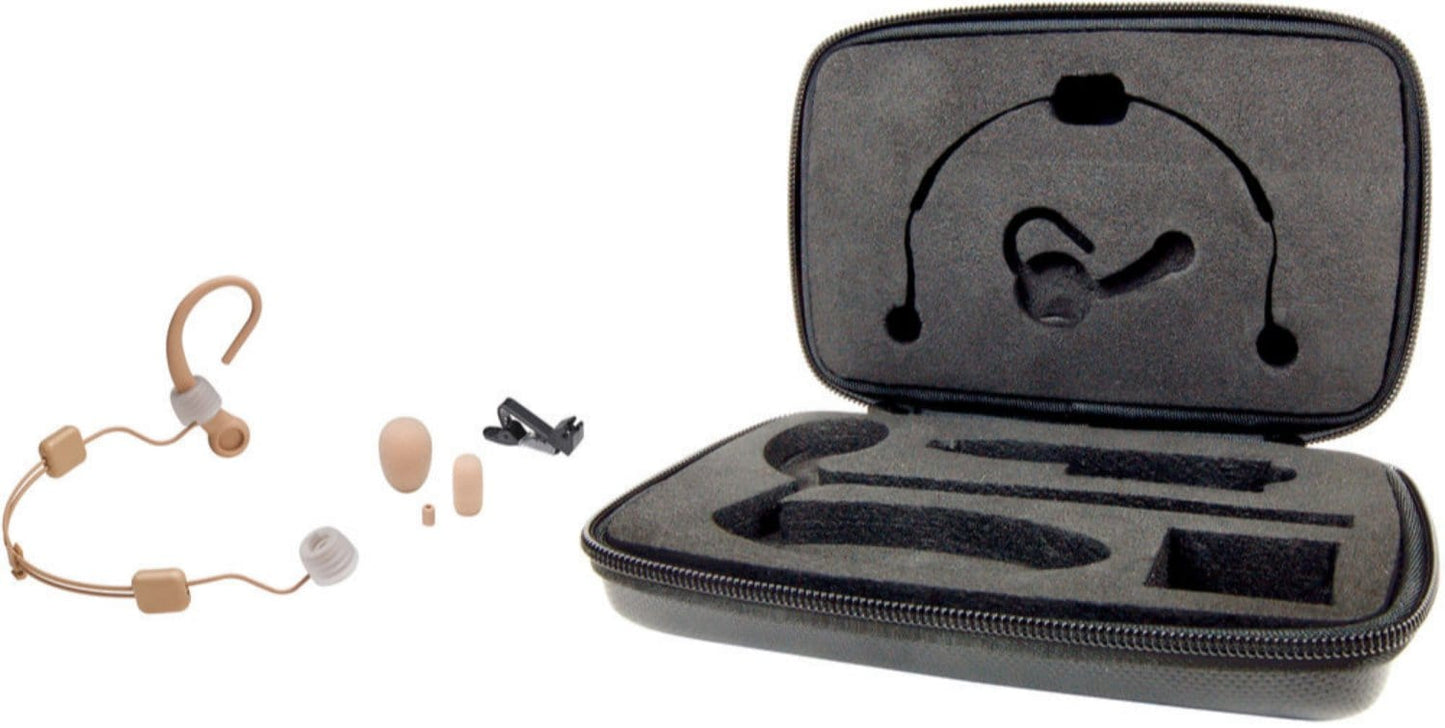

Audio Technica BP892xcW-TH MicroSet Headworn Mic

The BP892xcW-TH Omnidirectional Condenser Headworn Wireless Microphone is designed to provide intelligible natural audio for stage and television talent, lecturers, and worship leaders. The microphone includes the BPCB-cW-TH detachable, field-replaceable 1.4 m (55") cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style wireless body-pack transmitters. Other detachable cables with a variety of output terminations are available separately.

The BP892xcW-TH includes AT8440 cable clip, AT8464x-TH dual-ear adapter kit, AT8157-TH windscreen, AT8171-TH windscreen, two AT8156-TH element covers, a moisture guard, and a carrying case. See BP892x-TH for specifications.

Features:

• Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
• Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
• Ergonomic under-ear design—the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
• BPCB-cW-TH detachable, field-replaceable 1.4 m (55") cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style wireless body-pack transmitters
• Handles high sound pressure levels with ease
• Comes with the AT8464x-TH Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that’s worn on both ears for maximum stability and comfort
• Constructed of hypoallergenic materials
• Available in black and beige, wired and wireless models

Specifications:

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 18 dB/octave (wired only)
• Open Circuit Sensitivity: -43 dB (7.2 mV) re 1V at 1 Pa
• Impedance: 250 ohms (wired only)
• Maximum Input Sound Level: 136 dB SPL, 1 kHz at 3% T.H.D.
• Dynamic Range (typical): 104 dB, 1 kHz at Max SPL (wired only)
• Signal-to-Noise Ratio: 63 dB, 1 kHz at 1 Pa
• Phantom Power Requirement: 11-52V DC, 2 mA typical (wired only)
• Switch: Flat, roll-off (wired only)
• Current Consumption: 0.2 mA typical at 5V (wireless only)
• Voltage Range: 2.5-10V (wireless only)
• Weight (Microphone): Microphone, boom & earpiece: 2.6 g (0.09 oz)
• Weight (Power Module): 85 g (3.0 oz) (wired only)
• Dimensions:
  • Microphone: 9.5 mm (0.37") long, 2.6 mm (0.10") diameter
  • Boom: 98.5 mm (3.88") long, 1.07 mm (0.04") diameter
• Dimensions (Power Module): 100.0 mm (3.94") long, 18.9 mm (0.74") diameter (wired only)
• Output Connector (Power Module): Integral 3-pin XLRM-type
• Cable: Detachable 1.4 m (55") long, 1.6 mm (0.06") diameter, 2- or 3-conductor shielded cable (termination dependent)
• Accessories Furnished: BP892x-TH: AT8545 power module (wired only); AT8464x-TH dual-ear adapter kit; AT8440 cable clip; AT8157-TH windscreen; AT8171-TH windscreen; two AT8156-TH element covers; moisture guard; belt clip (wired only); carrying case
• Audio-Technica Case Style: M31
