Description

Audio Technica 3000 Series Wireless Headworn Sys.

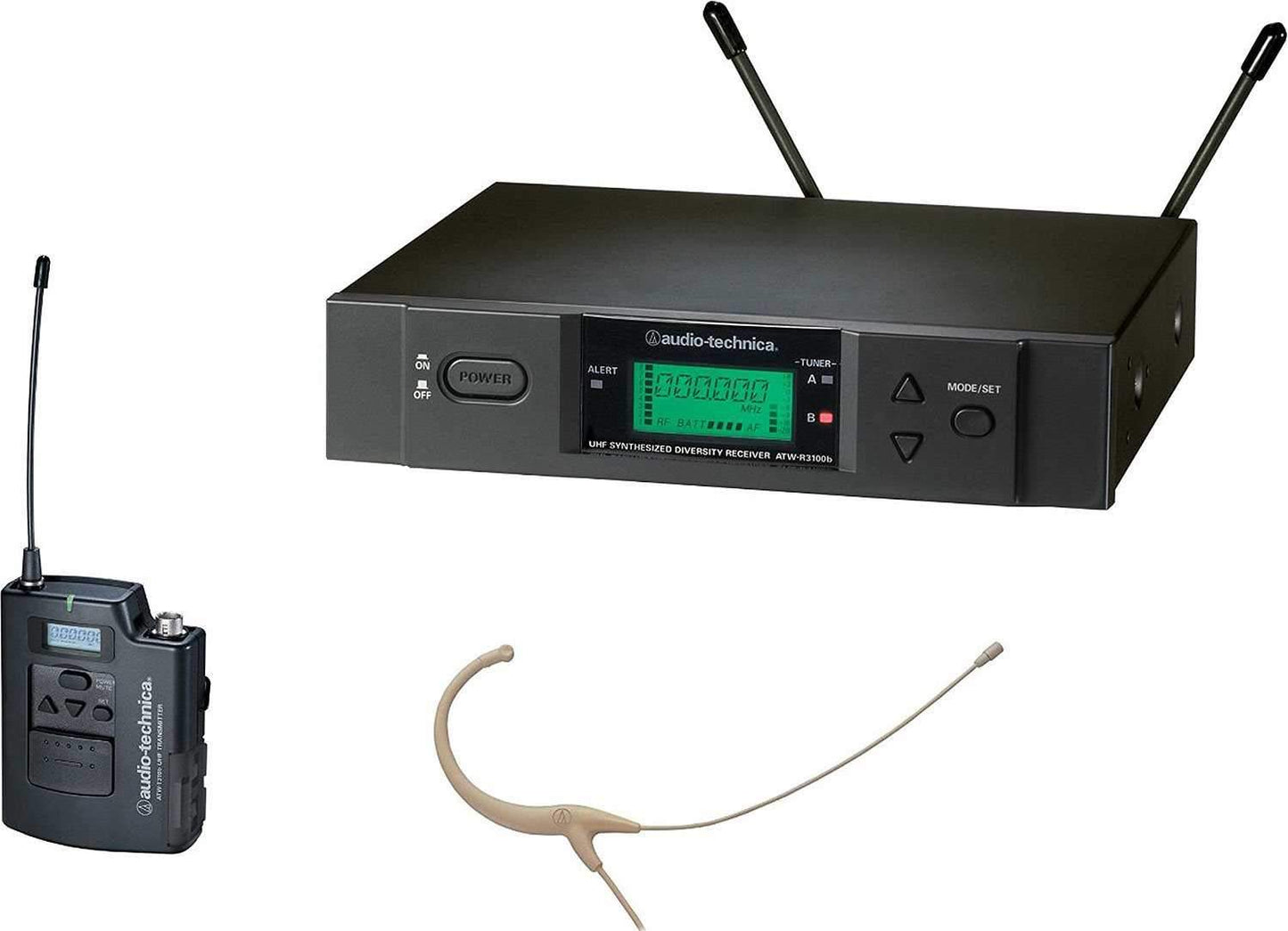

Audio-Technica’s third-generation 3000 Series wireless systems offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation. We’ve simplified selection of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound. The versatile ATW-T310b UniPak® body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of microphones, as well as a guitar cable. A 3-position sliding cover on the transmitter’s control panel prevents accidental shut-off or channel-switching. A new locking battery compartment provides a more secure latch and more robust design.ATW-R3100b receiver and ATW-T310b UniPak® transmitter with BP894cW MicroSet® (beige) cardioid condenser headworn microphone. Includes windscreens and clothing clip.

Features:
  • 996 - 1001 UHF frequencies in one of three UHF frequency ranges
  • Available in three frequency bands:
  • 541.500 MHZ to 566.375 MHz (TV Channels 25 - 30)
  • 655.500 MHz to 680.375 MHz (TV Channels 44 - 49)
  • 482.000 MHz to 507.000 MHz (TV Channels 16 -20)
  • Antenna power available for powered antennas & other in-line RF devices
  • Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
  • True Diversity operation reduces dropouts
  • Advanced digital Tone Lock™ squelch effectively blocks stray RF and communicates transmitter data for receiver display
  • Transmitters offer backlit LCD & dual-color LED
  • Locking battery compartment with secure latch and robust design
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks
  • ATW-T310b UniPak® transmitter includes Super Hi-Z input that provides optimum load for guitar pickups
Specifications:
  • Operating Frequencies: UHF band
  • Band C: 541.500 MHz to 566.375 MHz (996 frequencies)
  • Band D: 655.500 MHz to 680.375 MHz (996 frequencies)
  • Band I: 482.000 MHz to 507.000 MHz (1001 frequencies)
  • Not all frequencies are available in all areas. Please check with local regulations.
  • Minimum Frequency Step: 25 kHz
  • Modulation ModeFM
  • Maximum Deviation: ±35 kHz
  • Dynamic Range: > 110 dB (A-weighted), typical
  • Total Harmonic Distortion: < 1% (at 1 kHz, ±17.5 kHz deviation)
  • Operating Range100 m (300'), typical
  • Open range environment with no interfering signals.
  • Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
  • Battery and LCD performance may be reduced at very low temperatures.
  • Frequency Response: 70 Hz to 15 kHz (+1 dB, -3 dB)
  • Receiving System: True diversity
  • Image Rejection: 60 dB nominal, 55 dB minimum
  • RF Sensitivity: 20 dBuV at 60 dB S/N ratio
  • Maximum Output Level: XLR, balanced: +9 dBV; ¼" (6.3 mm), unbalanced: +7 dBV
  • Antenna Input: BNC-type, 50 ohms
  • Bias voltage 12V DC, 60 mA, each
  • Power Requirements: 12-18V DC, 500 mA
  • Dimensions: 210.0 mm (8.27") W x 164.4 mm (6.47") D x 44.0 mm (1.73") H
  • Not including BNC connectors or feet.
  • Net Weight1.1 kg (38.8 oz), without accessories
  • Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
