ATLONA AT-UHD-EX-70C-RX 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE
The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control pass-through, plus Power over Ethernet capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V Power over Ethernet. The AT-UHD-EX-70C-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for easy installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.
This receiver is used in commercial and applications that call for an HDBaseT receiver with a compact form factor that allows for simple mounting behind displays and at projectors. These applications will not require an AC outlet for the receiver, since the receiver is powered by an Atlona switching product. This receiver will also be used to simplify control of the AV system by working with 12 volt-based IR receivers as well as passing through RS-232 commands.
Features
4K/UHD capability
- Compatible with Ultra High Definition sources and displays
- Full support of 4K/UHD streaming services and playback devices
HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Digital Content Protection
- Allows protected content stream to pass between devices
Supports 4K HDR10 @ 24 Hz
- Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
Remote-powered receiver
- Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
- Saves time and integration costs
Bidirectional extension of both RS-232 and IR control commands
- Control signals travel over HDBaseT link for maximum control system flexibility
- Eliminates multiple cable runs between source, control system, and display
Long distance HDMI extension
- Receives HDMI signals up to 230 ft (70m) @ 1080P and 130 ft (40m) @ 4K/UHD using CAT6a/7 cable
- Uses easy-to-integrate category cable for low-cost, reliable system installation
Flexible Bidirectional IR control capabilities
- IR Input designed to work with 12V IR receivers for source control
- Saves control systems costs

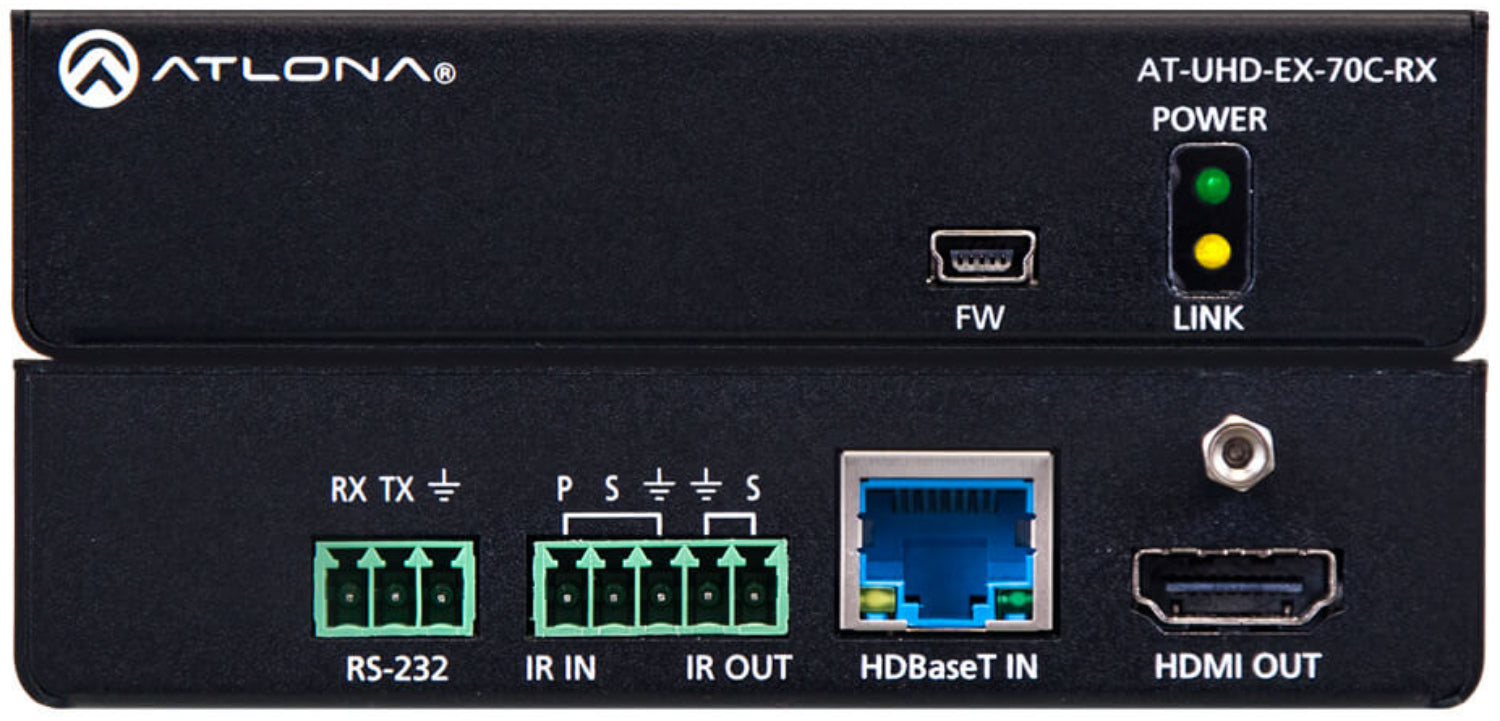

Rear panel I/O connectors
- Placement of ports on rear panel simplifies wire management
- Saves installation time and eliminates clutter
Multi-channel audio compliant
- Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, DTS:X™
- Allows any multi-channel audio stream to be used within a professional audio system
Field updatable firmware
- Front panel USB port provides an easy means for kit upgrades
- Ensures long term system return on investment
Front panel Power and Link status LEDs
- LED indicators provide power and HDBaseT link status information
- Provides easy setup and troubleshooting
Low-profile, 1 inch (25 mm) high quarter rack-width enclosure
- Easy installation into confined spaces behind displays and above projectors
- Keeps devices out-of-sight when placed in public spaces
Included accessories
- User guide, mounting brackets, IR emitter P/N AT-IR-CS-TX
Product Warranty
- To view the product warranty, use the following link: https://atlona.com/warranty/
