Antari LCU-2S Universal Liquid Control Unit for Fog and Snow

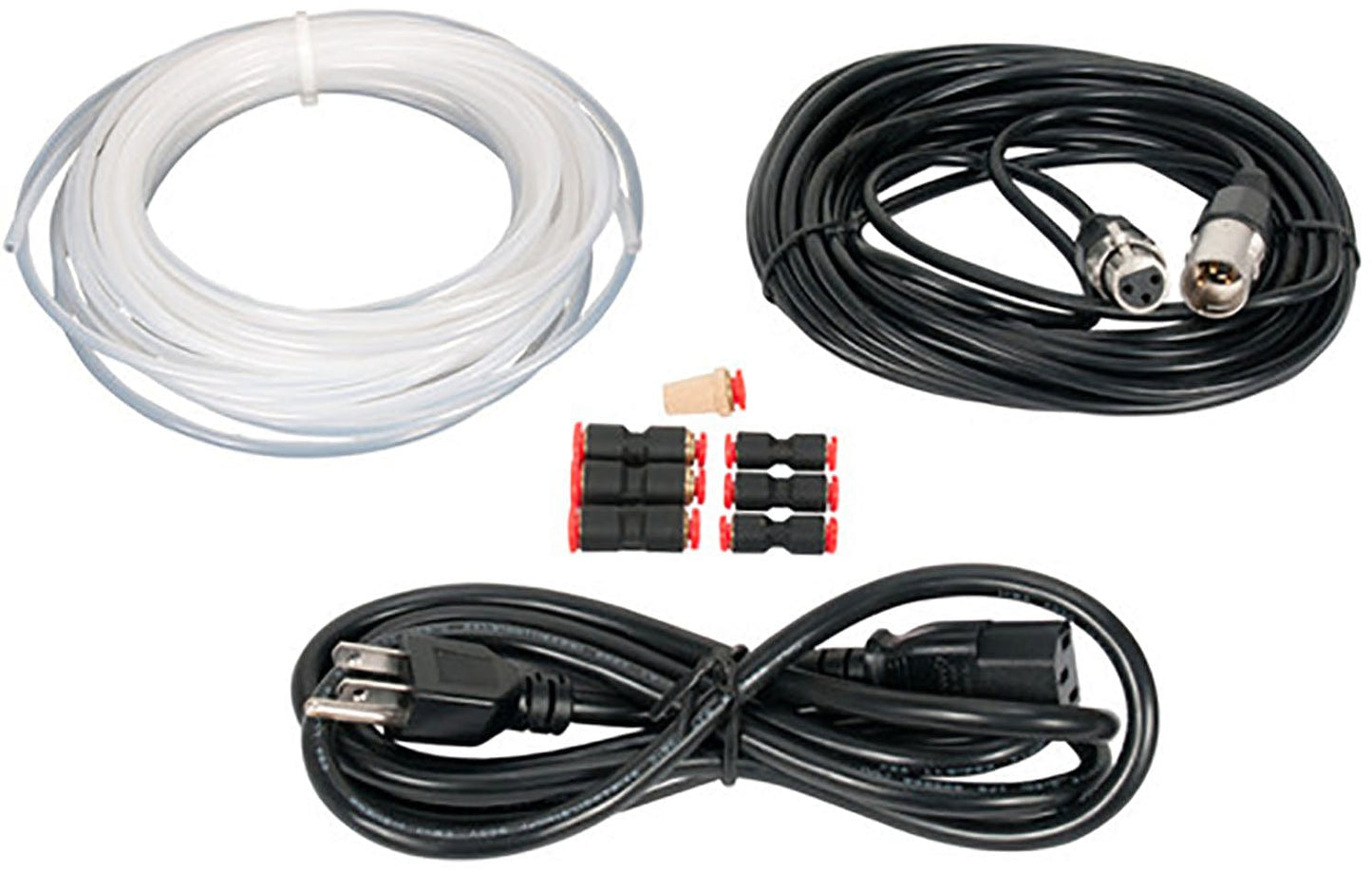

The Antari LCU-2S™ Liquid Control System is a universal effect liquid delivery system for all high volume usage Antari fogger, fazer, and snow machine installations. The system can supply up to 3 different Antari effect machines which use the same type of effect liquid. The system features a separate Liquid Supply Unit with (3) 4mm liquid tube outputs, (1) 6mm liquid tube input, 3pin data control input, an adjustable yoke bracket and safety cable loop for clamp/truss mounting, and a separate Liquid Tank Unit with 1 6mm liquid tube output, (1) 3pin data control output, and a main power switch. The system also includes (1) 3pin data connection cable, (1) 6mm fluid tube, (1) 4mm fluid tube, (3) 4mm-4mm adaptors, (3) 6mm-4mm adaptors, a fluid filter, and power cord.

The Liquid Tank Unit can be stored wherever most convenient such as near the main liquid supply container. No more ladders or scissor lifts required to fill empty effect machine liquid containers as the liquid is automatically pumped directly from any size container to the Liquid Supply Unit. Maximum vertical distance between the Liquid Tank Unit and the Liquid Supply Unit is up to 40 feet (12m) and the maximum horizontal run length between the two units is up to 115 feet (35m). Control of the system is easy, simply power on the Liquid Tank Unit and it continuously supplies the Liquid Supply Unit with effect liquid which guarantees the liquid tanks of up to 3 Antari effect machines remain full at all times.

Features:

Compatible with Antari Fluids Data Connection: 3-Pin XLR Simultaneously Supply up to 3 Machines Max Vertical Distance: 39' Max Horizontal Distance: 115' Power Connection: IEC

Features:

• Compatible with Antari Fluids
• Data Connection: 3-Pin XLR
• Simultaneously Supply up to 3 Machines
• Max Vertical Distance: 39'
• Max Horizontal Distance: 115'
• Power Connection: IEC

Specifications:

• Input Voltage: AC 100-120V, 50 / 60Hz 0.35 A
• Rated Power: 48W
• Compatible Fluid: Antari Fluid
• Ambient Temp. Range: 5 °C - 40 °C (41 °F-104 °F)
• Control: Auto
• Connection: IEC (Power), XLR 3-pin (Data)
• Dimensions:
  • Supply unit: L7.05 W6.57 H3.31 inch
  • Tank unit: L6.22 W4.06 H9.76 inch
• Weight:
  • Supply unit: 4.30 lbs
  • Tank unit: 3.97 lbs
