Antari IoCore2 GPI and GPO Interface with RS-232 and DMX

The IoCore2 serves as a network-based, solid-state interface designed to manage GPIO signals. It offers eight GPI ports that can be flexibly configured as either digital contact-closures or analog 0-10V level inputs. Additionally, the IoCore2 features eight GPO ports equipped with potential-free relay switches. It further includes an RS-232 port, a bi-directional DMX-512 port, and provides support for a range of Ethernet-based protocols.

Features:

• Extend CueCore connectivity
• Convert and trigger protocols stand-alone
• Program show-control automation

Specifications:

• Ethernet port

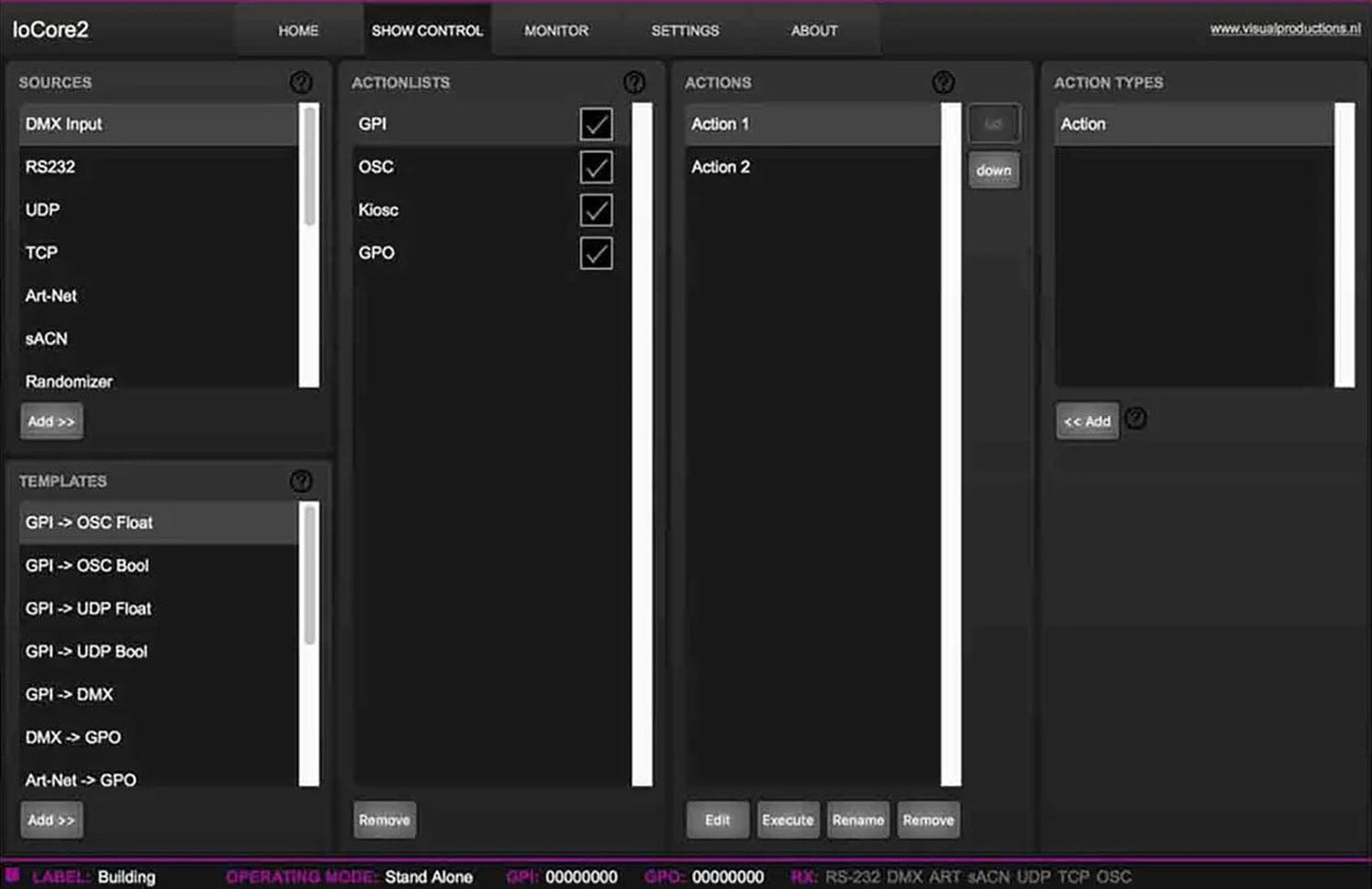

• Programming via web-interface
• 8 x Analogue or Digital inputs
• 8 x Relay (250VAC/30VDC max. 2A)
• DMX512-A (ANSI E1.11) port (opto-isolated, input or output)
• RS-232 port (in & out)
• Art-Net (in & out)
• sACN (in & out)
• TCP (in)
• USP & OSC (in & out)
• 12-24 DC 500mA (PSU included)
• Power over Ethernet (class I)
• Kensington lock
• Desktop, DIN Rail or 19″ rack mount (optional adapter)
• Operating temperature -20°C to +50°C (-4°F to +122°F)
• Compliance EN55103-1 EN55103-2
• Bundled with CueluxPro, vManager and Kiosc software
