Description

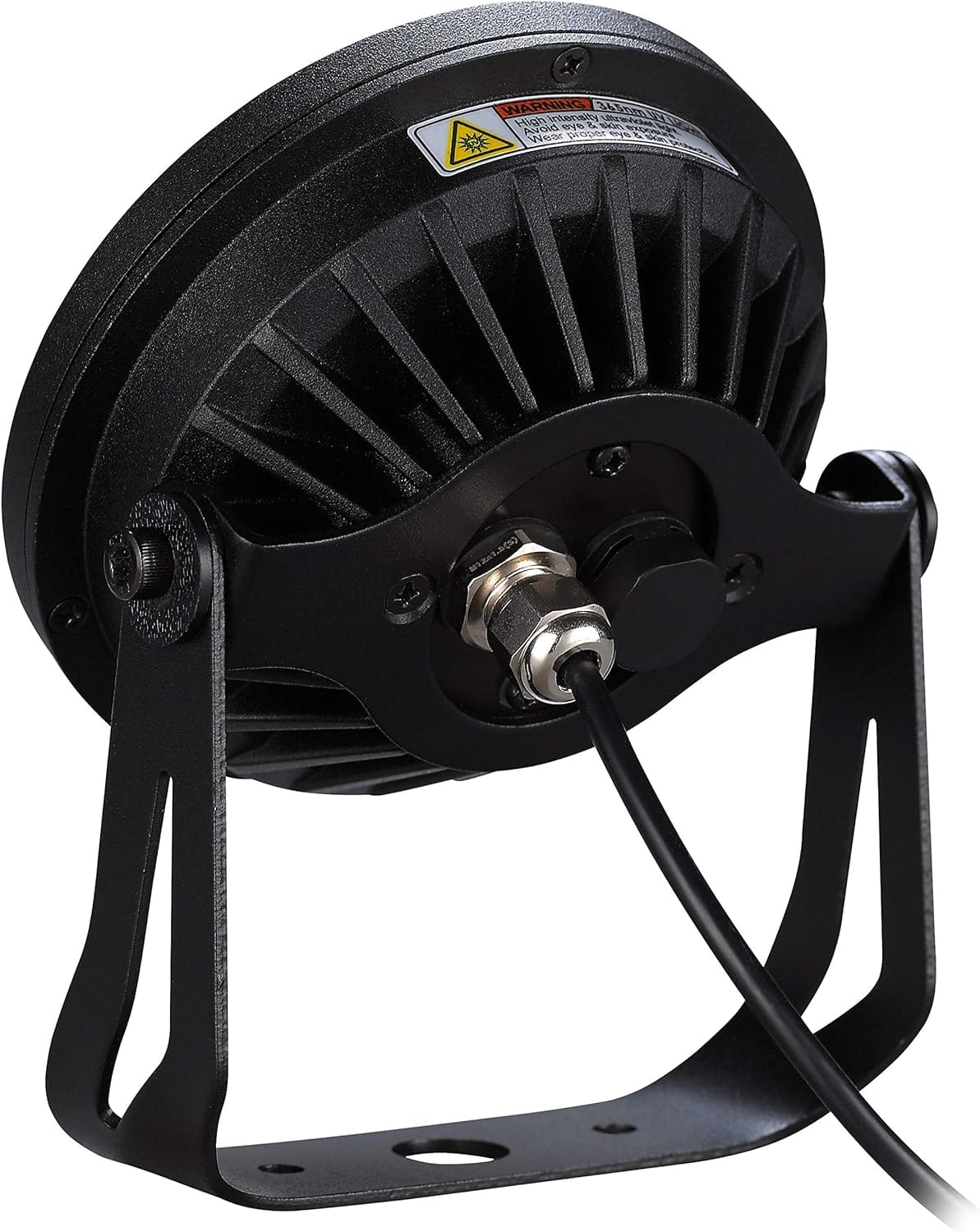

Antari DFX-IPS510 DarkFX Spot 510 IP Rated UV Spot Fixture

The Antari DarkFX Spot 510 IP is an outdoor-rated professional high-output UV LED spot, well suited for UV reactive material, art, amusement park displays, and signage with bright and vivid colors. The 6 x 1.9W high-power UV LEDs offer a peak wavelength of 365nm and a radiant flux output of 4500mW at full intensity (and minimal visible light).

Features:

  • 6 x 1.9W High-Powered UV LEDs
  • High Efficiency, IP65 Outdoor Rated
  • 15° Beam Angle
  • Peak Wavelength: 365nm
  • Radiant Flux Output: 4500 mW
  • Flicker-Free Operation for TV & Film
  • Adjustable Mounting Yoke
  • Requires DarkFX Drive 4 for Power & DMX

Specifications:

  • Light:
    • Fixture Type: Spotlight
    • Light Source: 6 x UV Fluorescent - 1.9 W
    • Expected Lamp Life: 20,000 Hours
    • Colors: Ultraviolet
    • UV Wavelength: 365 nm
    • Beam Angle: 15°
    • Shutter / Strobe: Electronic
    • Iris: No
    • Focus: Manual
    • Zoom Adjustment: No
    • Dimming: Electronic, 0 to 100%
  • Performance:
    • Operating Modes: DMX
    • Macros / Programs: No
    • Effects: Strobe (Variable Speed)
    • Strobe Rate: 0 to 20 Hz
    • Gobos: No
  • Control:
    • Control Protocols: DMX512
    • Display / Controls: No
    • Remote Control: No
  • Connectivity:
    • Inputs/Outputs: No
  • Power:
    • AC Power Connector:
      • Input: Hard-Wired
      • Output: None
      • Plug Type: Unterminated/Bare Wire
    • DC Input Power: 20 to 24 VDC
    • Fuse: No
    • Power / Current Consumption: 12 W
    • Power Linking: No
  • Environmental:
    • Environmental Protection:
      • Advertised as Weather Resistant
      • *Manufacturer Testing: IP65
  • Physical:
    • Mounting: Single Yoke Only
    • Duty Cycle: No
    • Exterior Color: Black
    • Dimensions: 5.29 x 4.4 x 2" / 134.25 x 110.5 x 49.8 mm
    • Weight: 1.5 lb / 0.7 kg
