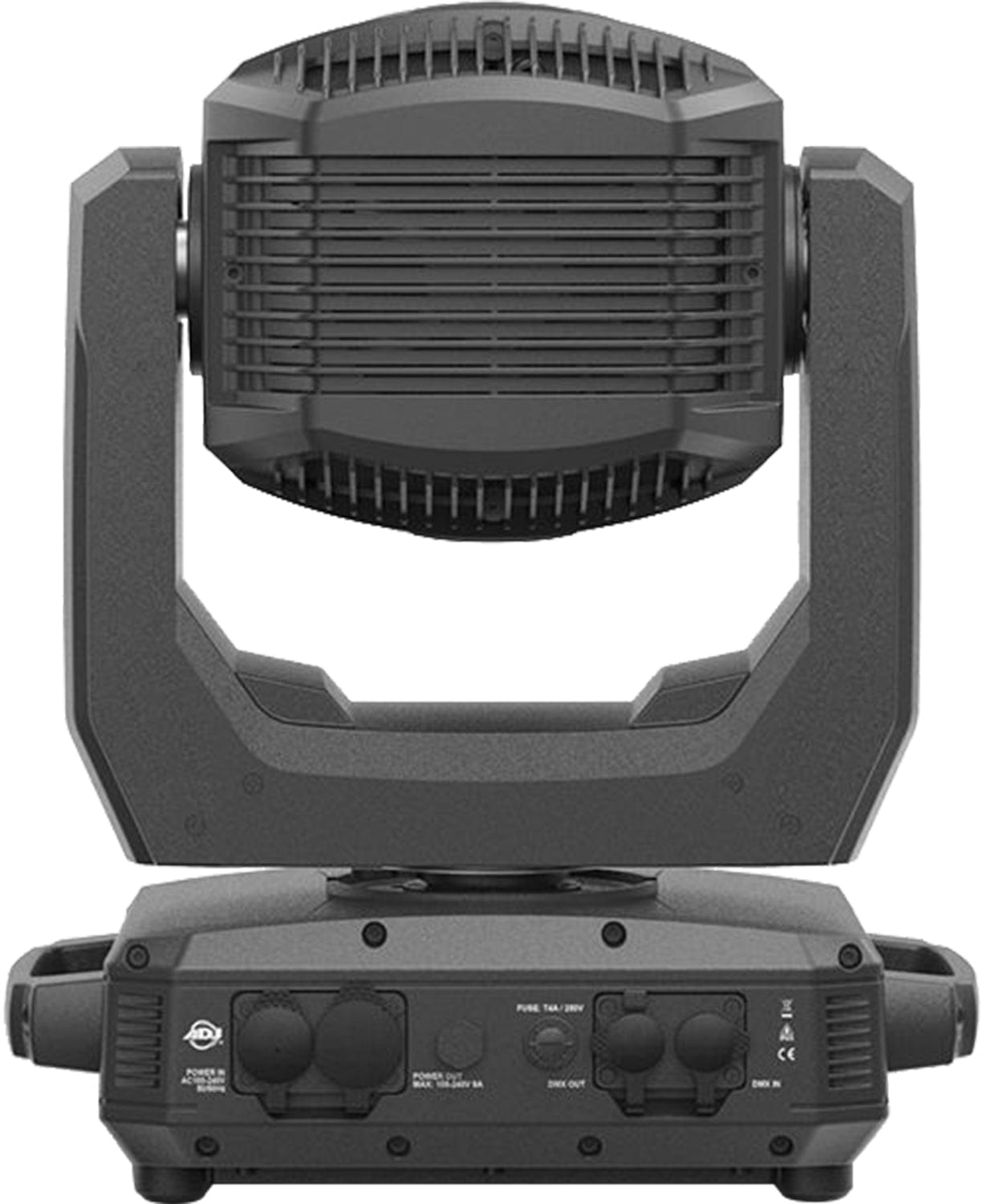

American DJ HYDRO SPOT 1 IP65 LED Moving Head Light
Part of ADJ’s popular Hydro Series of robust IP65-rated automated luminaires, the Hydro Spot 1 is a versatile, LED-powered spot fixture. It is ideal for temporary event production both indoors and outside in any weather, from dusty desert festivals to cold and wet winter attractions. It is also suitable for permanent installation within all kinds of venues, from nightclubs to churches, where its sealed casing design protects its internal components from dust and grime to allow for a reduced maintenance schedule and prolonged operational life expectancy.
Features:
- Motorized Focus
- Motorized Zoom: 12° ~ 23°
- 2 Frost Filters (Heavy and Medium)
- 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
- 0-100% smooth dimming
- Various strobe speeds
- 2 cooling fans
Specifications:
- Light Source:
- 200W Cool White LED Engine (50,000 hr.)
- Color Wheels:
- (2) Color wheels
- 8 dichroic colors + white on each wheel (includes CTO, CTB, and UV filters)
- GOBO Wheels:
- (1) Wheel with 6 Rotatable Gobo's
- All Gobo's are replaceable
- Gobo Shake Effect
- Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
- Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
- Prism Wheel:
- Prism Wheel 1: Rotatable 6-facet Circular
- Prism Wheel 2: Rotatable 5-facet Linear
- Both Prisms are indexable
- Frost Filters:
- Frost 1: Heavy frost for wash effect
- Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX
- Control:
- 3 DMX Channel Modes: 19/22/26
- Color LCD display with 6-button function menu
- Control Mode: DMX512 or internal programs
- 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
- 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
- Selectable LED Refresh Rates (900 Hz~25K Hz)
- 0-100% smooth dimming
- Various strobe speeds
- RDM (Remote Device Management)
- With Wired Digital Communication Network
- Pan/Tilt:
- Pan: 630 degrees
- Tilt: 270 degrees
- Connections:
- DMX Connections: 5-pin XLR In/Out
- Power Connections: IP65 PowerLock In/Out to daisy chain power
- Electrical:
- Multi-voltage operation: 90-240V, 50/60Hz
- Max power consumption: 280W
- Dimensions & Weight:
- Dimensions (LxWxH): 9.49" x 14.57" x 19.21" (241x370x488mm)
- Weight: 35.2lbs (16kg)
- Light Source:
- 200W Cool White LED Engine (50,000 hr.)
- Color Wheels:
- (2) Color wheels
- 8 dichroic colors + white on each wheel (includes CTO, CTB, and UV filters)
- GOBO Wheels:
- (1) Wheel with 6 Rotatable Gobo's
- All Gobo's are replaceable
- Gobo Shake Effect
- Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
- Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
- Prism Wheel:
- Prism Wheel 1: Rotatable 6-facet Circular
- Prism Wheel 2: Rotatable 5-facet Linear
- Both Prisms are indexable
- Frost Filters:
- Frost 1: Heavy frost for wash effect
- Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX
- Control:
- 3 DMX Channel Modes: 19/22/26
- Color LCD display with 6-button function menu
- Control Mode: DMX512 or internal programs
- 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
- 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
- Selectable LED Refresh Rates (900 Hz~25K Hz)
- 0-100% smooth dimming
- Various strobe speeds
- RDM (Remote Device Management)
- With Wired Digital Communication Network
- Pan/Tilt:
- Pan: 630 degrees
- Tilt: 270 degrees
- Connections:
- DMX Connections: 5-pin XLR In/Out
- Power Connections: IP65 PowerLock In/Out to daisy chain power
- Electrical:
- Multi-voltage operation: 90-240V, 50/60Hz
- Max power consumption: 280W
- Dimensions & Weight:
- Dimensions (LxWxH): 9.49" x 14.57" x 19.21" (241x370x488mm)
- Weight: 35.2lbs (16kg)
