Description

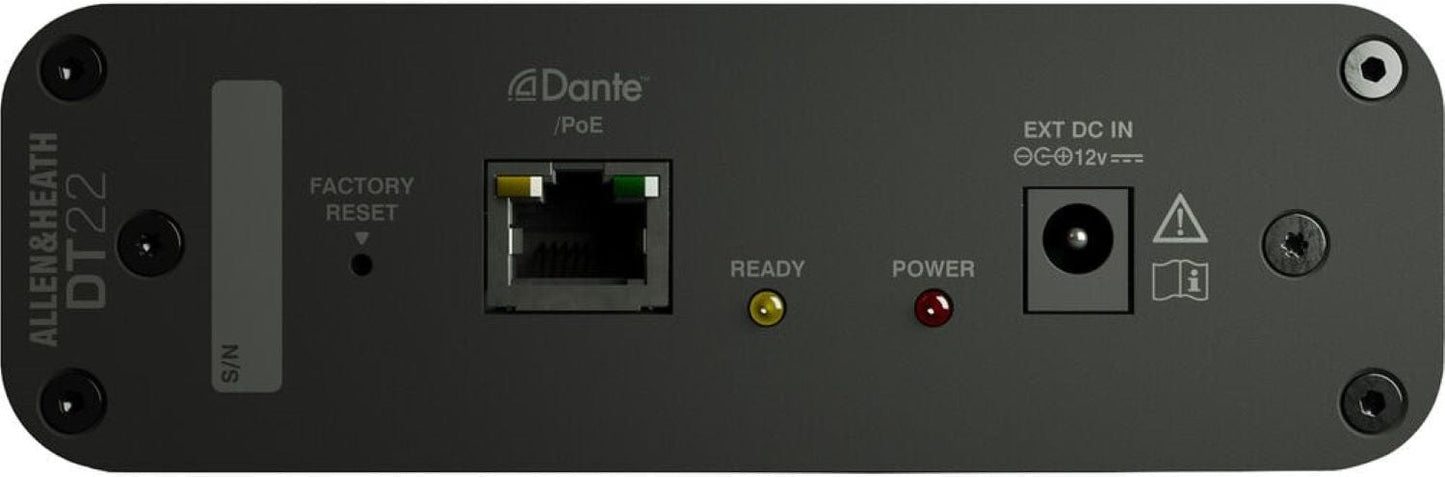

Allen & Heath AH-DT-22-M 2-In x 2-Out Dante I/O Expander with 2 dLive Mic/Line In and 2 Line Out

The compact and portable DT22 enables simple integration of Phoenix / Euroblock equipped hardware into a Dante network. Two inputs and two outputs make it suitable for a range of fixed install scenarios.

Features:

  • Dante 2x2 I/O interface, 48kHz/96kHz
  • Phoenix euroblock connectors
  • Local gain control and mic/line switch
  • +48V phantom power
  • PoE powered or DC 12V
  • Rugged aluminium box
  • Ears for surface mounting (included in DT22-M)
  • Optional rack mounting kit DT-RK19

Specifications:

  • Mic/Line Inputs: Balanced Phoenix, +48V PP
  • Analogue Gain: 0 to +55dB
  • Line Inputs: -20dB PAD
  • Maximum Input Level: +30dBu (line in)
  • Input Impedance: >4kΩ (mic), >10kΩ (line)
  • Line Outputs: Balanced Phoenix
  • Output Impedance: <75Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output: +22dBu
  • Dante: 48kHz/96kHz
  • DC Input: +12V DC 1.25A
  • Power Consumption: 10W max
  • Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
  • PoE Requirements: 802.3af 15W
  • Dimensions and Weight (Width x Depth x Height x Weight): 130 x 100 x 42 mm, 0.5kg (5.1” x 3.9” x 1.7”, 1lbs)
