Alesis MULTIMIX-12R 12-CH Rackmountable Mixer

More Alesis products

Write a review Q&A SKU: MULTIMIX-12R Solotech ID#: 49791
1 of 2
Unfortunately the Alesis MULTIMIX-12R 12-CH Rackmountable Mixer is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

View full details
Unfortunately the Alesis MULTIMIX-12R 12-CH Rackmountable Mixer is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

Description

MultiMix 12R Mixer

Who said you can’t take it with you? The MultiMix line combines studio-quality components and effects processing with rock-solid construction for the ultimate in compact mixers — all at prices wandering musicians will love.

MultiMix FX mixers are the most compact, affordable, high-quality mixers with built-in 28-bit digital effects and choice of configurations.

For those who don’t need effects, but want 12 channels of transparent Alesis sound packed into a three-space rack, we offer the MultiMix 12R.

Embrace your multiple personalities: The Alesis MultiMix product line.

Features:

  • Ultra-affordable 12-channel mixer in a 3U rack
  • 8 high-gain mic/line (XLR and 1/4" balanced) inputs with phantom power, 2 stereo balanced 1/4" line inputs
  • 2 aux sends (pre- and post-fader), stereo aux return, 8 1/4" inserts, 2-track stereo RCA in and out
  • Separate 1/4" balanced main and monitor outs, front-panel headphone out
  • Pan control, peak indicator, and 60mm fader on each channel
  • 2-band high/ low shelving EQ per channel
  • 10-segment LED stereo meters

Specifications:

  • CONTROL
    Front-panel (top down): 8 mic/line channels and 2 stereo channels with trim, 2-band EQ (high shelving at 12kHz, low shelving at 80Hz), aux send 1 (pre-fader), aux send 2 (post-fader), pan/balance, and 60mm fader.
    Front-panel other: 60mm stereo master fader. Stereo aux return level. Headphone jack with level and master/tape switch. Stereo 10-segment LED meters. Power and phantom power LEDs.

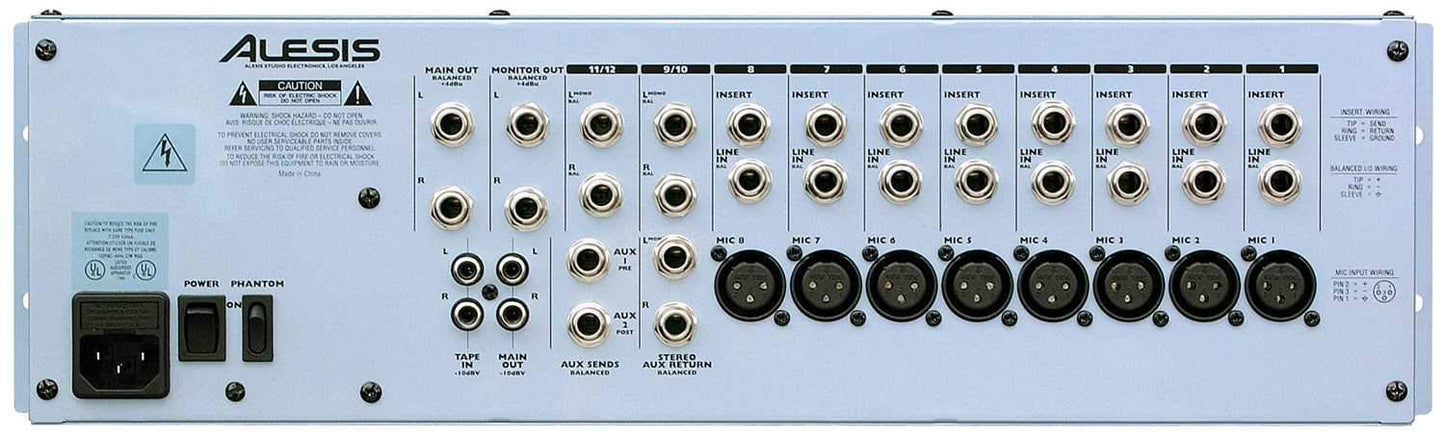

  • CONNECTIONS: All 1/4" TRS except as noted: Mic in x 8 (XLR), line in x 12, channel insert x 8, aux send x 2, stereo aux return, stereo main out, stereo monitor out, headphone out. Stereo tape in and master out (RCA).
  • POWER: 120V AC internal transformer
  • DIMENSIONS: (H x W x D): 5.25" x 19" x 6.25" (134mm x 483mm x 158mm), 3U rackmount
  • WEIGHT: 8lbs (3.6kg)
