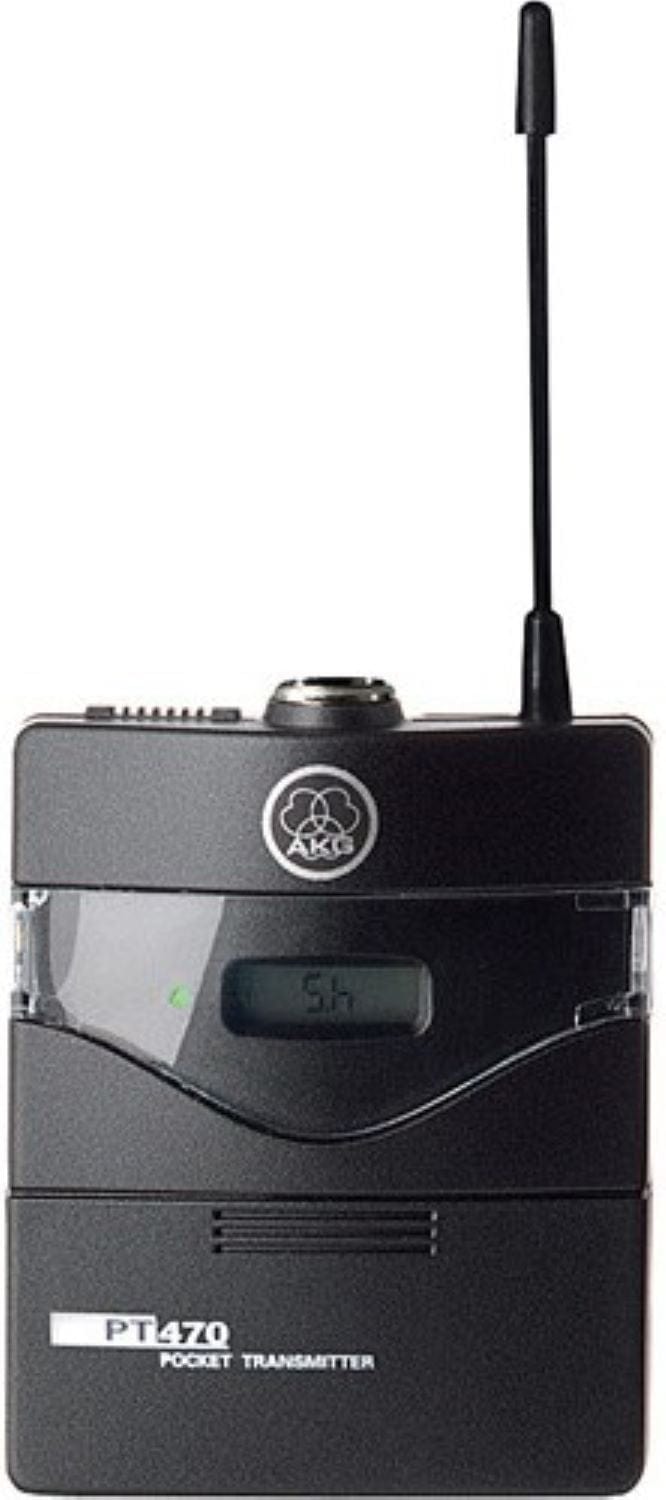

AKG PT470 Professional Wireless Body-Pack Transmitter - Band 8 - 50 milliWatt

The PT470 is an analog professional wireless body-pack transmitter in a small, rugged housing. A pilot tone transmission prevents unexpected startup noise, continuously sending transmitter data, including low battery information, to the receiver. An enhanced battery management allows up to 14 hours of operation on a single AA-size battery. With the integrated charging contacts, a standard NiMH rechargeable battery can be charged inside the transmitter. An optional RMS4000 external mute switch allows the user to mute the transmitter remotely. Its professional mini XLR audio connector makes the body pack compatible with a broad range of lavalieres and headsets.

Features:

• Pilot tone transmission
• Compact, rugged bodypack design
• External mute switch connector
• Integrated charging contacts
• Infrared synchronization for instant transmitter setup

Specifications:

• Audio:
  • Audio Frequency bandwidth: 35 Hz to 20 kHz
  • Signal to Noise: 120 dB-A
  • THD at 1 kHz: 0.7%
• Enhanced:
  • Peak deviation: 48 kHz
• Pocket Transmitter:
  • Nominal deviation: 20 kHz
  • Radio Output Power (min/max): 10 to 50 mW
  • Transmitter Synchronization: Infrared
• Audio Input: 3-pin mini female XLR
  • Maximum audio level: 12 dB
• Mute Switch Interface: 1/4" female mono jack
  • Dimensions (LxHxW): 30 x 73.5 x 60 mm
  • Radio:
  • Switching bandwidth: 30 MHz
  • Recommended simultaneous channels: 2
  • Number of selectable frequencies: 1220 (selectable in 25kHz steps)
  • Frequency Selection: Selectable frequency in 25kHz steps
  • Wireless channels within device: -
  • Radio Range (Line of Sight): 100m (depending on antenna system)
  • Switchable RF Power: no
  • Modulation: FM (Frequency Modulation)
  • Pilot Tone: Yes
