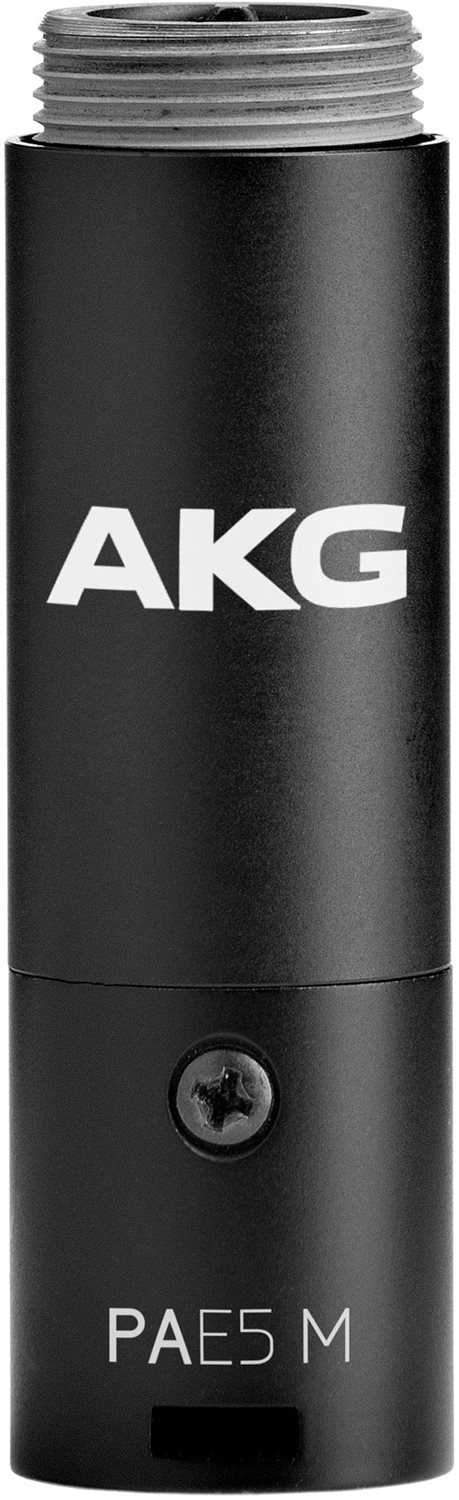

AKG PAE5 M Phantompower Adapter 5pin XLREXECUTIVE MODULARITY
for use in theatres, houses of worship and conference rooms
The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the ?mic on? status. With its wide voltage range the module will fit most available microphone mixers.
The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
Features:- Extra feeding of LED ring to show mic status for use with automixers including logic outputs
- Highly reliable contacts to mounting modules prevent contact problems and ensure extra-long life
- RFi Shield technology provides high immunity to radio-frequency interference
- Feeds all DAM+ Series capsules for highest flexibility
- Switchable bass roll off for reduction of body noise and proximity effect
General
- Audio Frequency bandwidth: 20 to 20000 Hz
- Bass Cut Filter: 150 Hz
- Recommended Load Impedance: 2000 Ohms
- Voltage: 9 to 52 V
- Current: 3.5 mA
- Type: Balanced XLR
- Gender: Male
- Contacts: 5-pin
- Height: 65.5 mm
- Diameter: 19.1 mm
- Net Weight: 43 g
