AKG PAE M Phantompower Adapter 3pin XLREXECUTIVE MODULARITY
for use in theatres, houses of worship and conference rooms

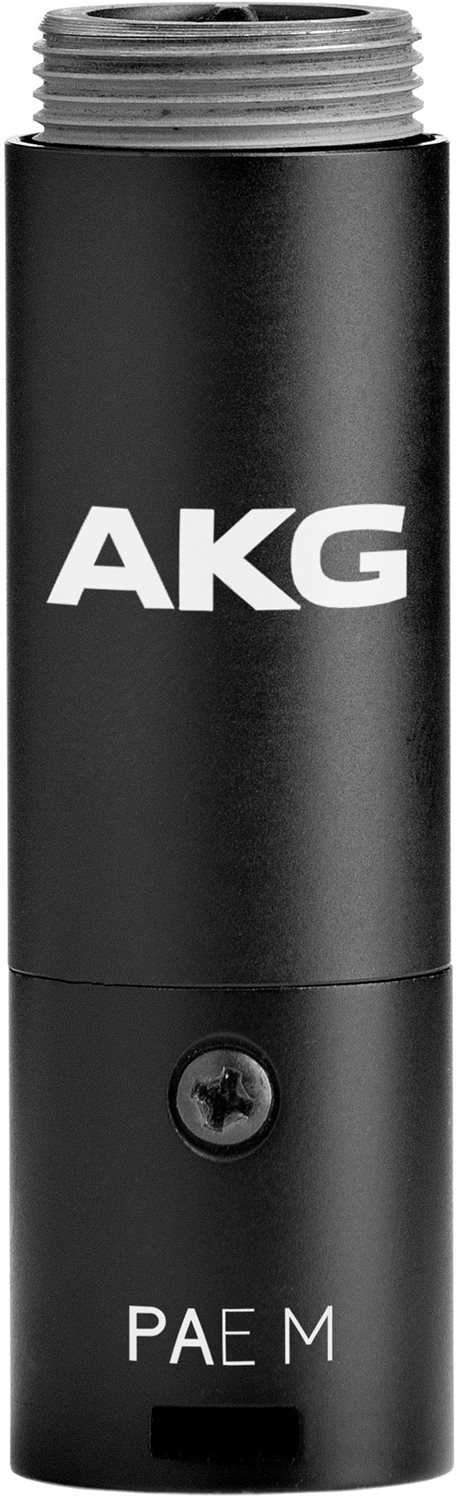

The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise.
The PAE M comes with an integrated system connector with gold- plated contacts. This unique connection securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
Features:- Feeds all DAM+ Series capsules for highest flexibility
- RFi Shield technology provides high immunity to radio-frequency interference
- Accepts 9-52V input for almost any available mixer inputs
- Switchable bass roll off for reduction of body noise and proximity effect
- Highly reliable contacts to mounting modules prevent contact problems and ensure extra-long life
General
- Audio Frequency bandwidth: 20 to 20000 Hz
- Bass Cut Filter: 150 Hz
- Recommended Load Impedance: 2000 Ohms
- Voltage: 9 to 52 V
- Current: 3.5 mA
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-pin
- Height: 65.5 mm
- Diameter: 19.1 mm
- Net Weight: 43 g
