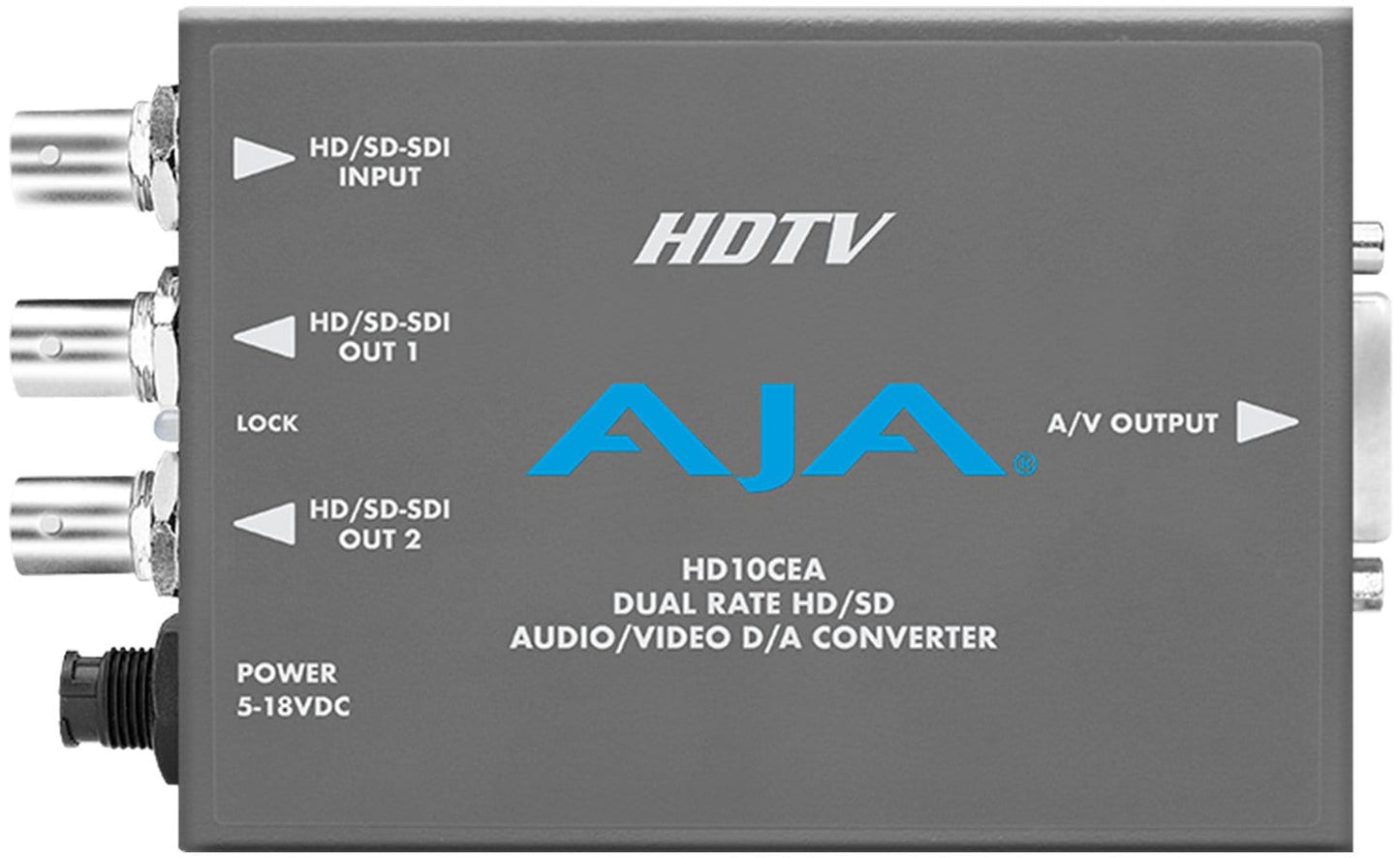

AJA HD10CEA Video Converter SD/HD-SDI

AJA HD10CEA Video Converter SD/HD-SDI

The HD10CEA converts HD/SD-SDI video with embedded audio to analog video and 4-channel balanced analog audio. SD video outputs can be configured as YPbPr (Betacam or SMPTE/EBU-N10), RGB, composite, or YC (S-Video). HD video outputs can be configured as YPbPr or RGB. Analog audio outputs are balanced. The 4 audio channels can be selected from group 1-4. Audio and video output connections are available on a 25-pin "D" subminiature connector (breakout cable supplied.) All video/audio configuration is done by external dipswitch selection. This versatile, low-cost, miniature monitoring solution also outputs two loop-thru HD/SD-SDI outputs.

Features:

• Digital to Analog Audio and Video Converter
• HD/SD-SDI with Embedded Audio Input
• SD Component or Composite Video Outputs (SD Input)
• HD Component Video Outputs (HD Input)
• 4-Channel Balanced Audio Output
• 2 Equalized, Loop-Thru HD/SD-SDI Outputs
• Selectable Audio Channel Pair/Group

Specifications:

• Inputs: HD/SD-SDI w/embedded audio, 1x BNC
• Outputs:
  • SD Video: YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC, PAL, YC (S-Video)
  • HD Video: YPbPr, RGB
  • Audio: 4-channel balanced
  • Video/Audio outputs on 25 pin D connector
  • 2 HD/SD-SDI equalized loop through, 2x BNC
• User Controls:
  • External dipswitch
  • Video format
  • Pedestal
  • H/V Blanking
  • Audio Group 1 - 4
  • Audio Level (adjustable via switch selection): +24, +18, +15, +12 dBu, full scale digital
• Size (w x d x h): 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
• Power: +5-18VDC, regulated, 4 watts, power supply required, included with purchase
• Environment
  • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
  • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
